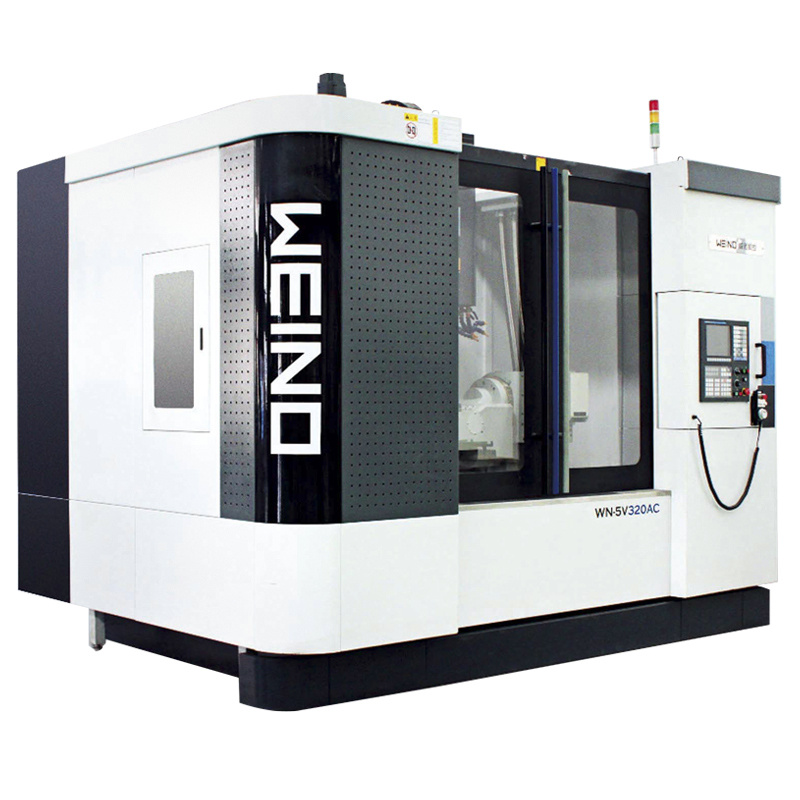

5 Axis Coordinate Machining Center
Product Specifications
| Prod Model: |
WN-5V170ZAC/ WN-5V250Z-AC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Performance Classification: |
High-End CNC Machine Tools |
| Numerical Control: |
CNC/MNC |
| Movement Method: |
Linear Control |
| Control Method: |
Closed-Loop Control |
Product Description
5-Axis vertical machining center is specifically used for processing different shapes and surface products, including cone, concave-convex surface, special flat profile and a variety of complex space surface products.
This Vertical machining center has the high-efficiency and the perfect rigidity. It has five axis and controls by CNC.
Machine standard
1. Resin sand casting (CHINA)
2. Spindle made in Taiwan ( POSA/VOLIS/ROYAL) (TAIWAN)
3. Balls crew and precision locking (HIWIN) (TAIWAN)
4. Pressure cylinder (HAOCHENG) (TAIWAN)
5. Guide of hard sanding face film producing the Panel (PTFE from Taiwan) (CHINA )
6. Paint (TAIWAN)
8. Coupling (KTR/SIT) (ITALY/GERMAN)
9. Protective cover of guide rail (JIASU) (CHINA)
10. Motor-driven lubrication system made in China(including the lubricating bump ) (ISHAN) (CHINA)
11. Cooling water system made in China(including pump and tank) (CHINA)
12. A set of Air cooler pipeline from China(including air compressor and oil-water separator)(CHINA)
13. Synchronous bell pulley and belt of spindle from China (CHINA)
|
Model of machine tool |
WN-5V170Z-AC |
WN-5V320Z-AC |
|
Project |
Unit |
Specification |
|
Worktable |
Diameter of round worktable |
mm |
Φ170 |
Φ320 |
|
T groove of worktable |
12H7 |
14H7 |
|
Gripping torsion of rotary arm |
kgm |
15 (air pressure source) |
142 (oil pressure source) |
|
Gripping torsion of inclination axis |
30(air pressure source) |
190(oil pressure source) |
|
capacity |
Kg |
45 |
100 |
|
Tool magazine |
Form of tool magazine |
|
Tool change of mechanical arm of disc type |
|
Capacity of tool magazine |
Piece |
20 |
24 |
|
Travel |
Stroke of X axis |
mm |
260 |
600 |
|
Stroke of Y axis |
500 |
560 |
|
Stroke of Z axis |
440 |
450 |
|
Tilt angle of A-axis |
deg(°) |
-30~+120 |
-15~+115 |
|
Rotation angle of C axis |
±360 |
±360 |
|
Distance between spindle center and column guide way |
mm |
576 |
724 |
|
Distance between spindle nose and worktable center |
30-470 |
50-500 |
|
Spindle |
Model of spindle taper hole |
|
BT30 |
BT40 |
|
Spindle rotation speed |
rpm |
12000 |
10000 |
|
Spindle motor |
Drive torque of spindle servo motor |
Nm |
53 |
70 |
|
Three-axis servo motor |
Drive torque of three-axis servo motor |
12 |
37 |
|
A-axis/C-axis servo motor |
Drive torque of A-axis/C-axis servo motor |
5/3.2 |
11 |
|
System |
|
Huazhong, Siemens, GSK (as selected by the customer) |
|
Feed speed of X/ Y/ Z axis |
mm/min |
20-6000 |
|
Rapid moving speed of X/ Y/ Z axis |
36000/36000/36000 |
|
Position accuracy of X/Y/Z axis |
mm |
0.01 |
|
Resetting accuracy of X/Y/Z axis |
0.006 |
|
Rotary positioning accuracy of A-axis/C-axis |
sec(″) |
30/15 |
|
Repeated positioning accuracy of rotary A-axis/C-axis |
8/6 |
8/4 |
|
Gross weight of complete machine |
t |
4.5 |
8.8 |
FUJIAN WEINO CNC Co., Ltd. is a national high-tech enterprise, specialized in R & D, production and sales of high-end CNC machine tools under the high-end equipment manufacturing industry. The company was founded in 2004, is located in the coastal city - known as the "state of the literature, "
Passed "ISO9001: 2000 quality management system certification, has won the" National High-tech Enterprise ", " Fujian Province Innovative Enterprise ", " Fujian Province-level enterprise technical centers "etc. The focus on "smart" elite team, and actively introducing senior management personnel and technical backbone of the machine tool industry at home and abroad. Since its inception on "innovation lead the business development for the company's long-term strategy. Stick to the "introduction, digestion, absorption and re-innovation" scientific and technological innovation, and unswervingly follow the road of development "production, learning and research" combined.
Now establish a close and cooperative relationship with the Chinese Academy of Sciences, Tianjin University, Tongji University and other institutions of higher learning, "school-enterprise cooperation educating people with local universities to carry out the project. The company attaches great importance to scientific research and innovation, after years of tireless pursuit, and now owns a number of national invention patents, 30 utility model patents. The company focused on high-end equipment manufacturing sector, the products covered by the three sides of the composite gantry boring and milling machining center, five-axis vertical machining centers, horizontal machining centers, vertical machining centers, 12 series, 49 models of products.: compound gantry reach the international advanced level, "precision, 30% increase in efficiency, cost optimization 40% of the three core competitiveness to face the imports of similar products, the product identified by the state as "reached the international advanced, fill the gaps" to break the monopoly of the field of foreign imported products.
WEINO for its superior quality products sold throughout dozens of provinces, municipalities, export to Germany, Russia, Poland, South Africa, Brazil, Australia and other countries and Taiwan, deep trust for the majority of users. FUJIAN WEINO CNC Co; Ltd, adhering to the "wisdom, innovation, service" business philosophy and excellent quality, scientific management, efficiency first, innovation-oriented "business philosophy, " SMES Chief Engineer "unique mode to achieve the long-cherished wish of the century enterprise to create a first-class business and brand, first-class products and quality, first-class enterprise efficiency and employee income!
