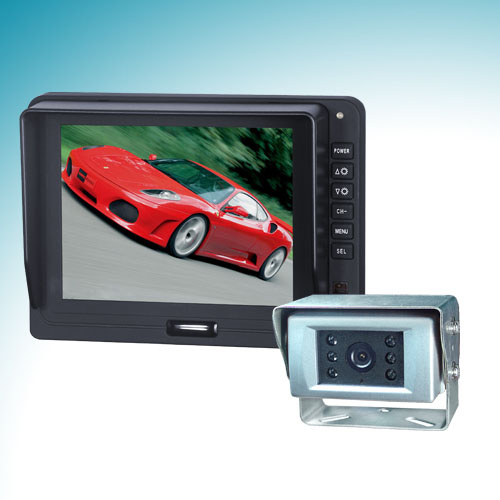

5 Inch Car Backup System with Digital Screen Car Monitor (MO-112D, CW-657)
Product Specifications
Prod Model: |
MO-112D, CW-657 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Monitoring System |
Product Description
5 Inch Car Backup System With Digital Screen Car Monitor:
5 Inch TFT LCD color monitor with digital screen Features:
5 Inch TFT LCD color monitor with digital screen
TFT LCD monitor with wide view angle and high resolution display.
Picture image adjustable for Horizontal, Vertical, Mirror and Normal viewing
3 languages selectable for user operation
Automatic backlighting for buttons.
Full-function remote control.
Multiple video formats available: AUTO/ PAL/ NTSC.
Up to 3 AV inputs.
On-board speaker.
Operates from 12 - 32V. Supports 12V or 24V automobile battery.
Automatically switches to back-up, left or right side camera views.
Even if it is mirror image, OSD keeps normal status.
Camera Features:
Firm structure - aluminum-alloy housing, stainless-steel mount and sun-shield
Night-vision function (6 infrared lights)
Smaller size for more convenient installation
1/3" SHARP COLOR CCD SENSOR SPECIFICATIONS
Image Device: 1/3" SHARP CCD
TV System: PAL/NTSC
Effective Pixels: 512*582 pixels / 512*492 pixels
Sensing Area: 4.9mm*3.7mm
Scanning System: 2: 1 Interlace
Sync. System: Internal
Resolution: 420TV Lines
Horizontal Sync. Frequency: 15.625kHz / 15.734kHz
Vertical Sync. Frequency: 50Hz / 60Hz
Minimum Illumination: 0 LUX / F=1.2 (with IR)
Microphone: Optional
Video Output: 1.0 Vp-p, 75 Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50 (PAL), 1/60 (NTSC) ~ 1-10, 000 Second
BLC: Auto
Current Consumption: Max. 150 mA
Power Supply: DC12V
Operation Temperature: -20ºC~+70ºC, RH 95% Max.
Storage Temperature: -40ºC~+80ºC, RH 95% Max.
Lens: F=2.8mm / 3.6mm, F=2.0
Lens Angle: 120° /92°
