Specifications
1, High filter precision.
2, Without absorption loss on the filtered solution.
3, Good sealing performance.
Product introduction

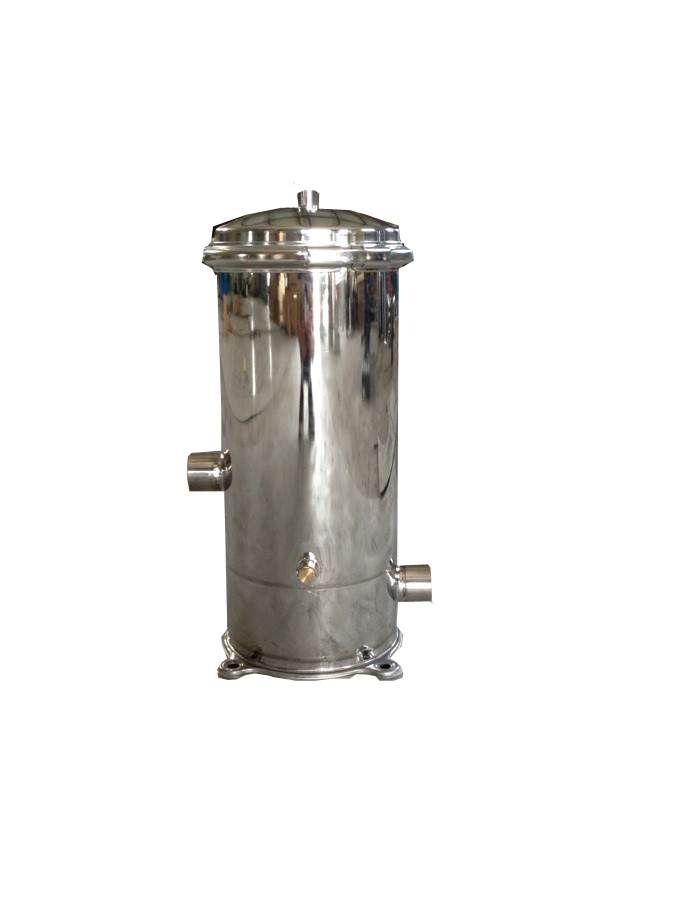

Ultrafilter (also known as security filters)has a cylinder housing generally made of stainless steel and uses tubular filter elements internally including PP meltblown, welding lines, folded filter element, titanium filter element and activated carbon filter element, etc. Which can be selected depending on the filter media and the design process in order to achieve the quality requirements of the outflow. The machine body can also be quick fitting type for easy replacement and cleaning of the filter element.
Ultrafilter is used to remove solid impurities, powder and other impurities in the fluid. It is resistant to high pressure: Its filter element can be easily replaced; It has large capacity and occupies a small land area and better filter effects, so it is widely used for pretreatment and terminal filtration in the electronics industry, pharmaceutical industry, household drinking water as well as food and beverage, wine, beer and mineral water industries.
| Model | diameter | Specification | Thickness of wall(mm) | Flow (Ton/Hour) | Pipe diameter |
| YL3-10 | Φ167 | 3 cartridges 10 inch | 1.5 | 1 | DN25 |
| YL3-20 | Φ167 | 3 cartridges 20inch | 1.5 | 1.5 | DN25 |
| YL5-10 | Φ219 | 5cartridges 10inch | 1.5 | 1.5 | DN25 |
| YL5-20 | Φ219 | 5cartridges 20inch | 1.5 | 3 | DN25 |
| YL5-30 | Φ219 | 5cartridges 30inch | 1.5 | 5 | DN32 |
| YL5-40 | Φ219 | 5cartridges 40inch | 1.5 | 7 | DN40 |
| YL7-20 | Φ219 | 7cartridges 20inch | 1.5 | 5 | DN32-40 |
| YL7-30 | Φ219 | 7cartridges 30inch | 1.5 | 7 | DN32-40 |
| YL7-40 | Φ219 | 7cartridges 40inch | 1.5 | 10 | DN40-50 |
| YL10-40 | Φ300 | 10cartridges40inch | 2 | 15 | DN50-65 |
| YL15-40 | Φ350 | 15cartridges40inch | 2 | 25 | DN65 |
| YL20-40 | Φ400 | 20cartridges40inch | 2 | 35 | DN80 |
| YL25-40 | Φ450 | 25cartridges40inch | 2.5 | 45 | DN100 |
| YL30-40 | Φ500 | 30cartridges40inch | 3 | 55 | DN100 |
| YL35-40 | Φ550 | 35cartridges40inch | 3 | 65 | DN125 |
| YL45-40 | Φ600 | 45cartridges40inch | 3 | 75 | DN125 |
| YL50-40 | Φ650 | 50cartridges40inch | 3 | 80 | DN125-150 |
| YL60-40 | Φ700 | 60cartridges40inch | 3 | 100 | DN150 |
| YL65-40 | Φ750 | 65cartridges40inch | 3 | 120 | DN150 |
| YL70-40 | Φ800 | 70cartridges40inch | 3 | 120 | DN150 |
| YL80-40 | Φ900 | 80cartridges40inch | 4 | 140-160 | DN150 |
| YL100-40 | Φ1000 | 100cartridges40inch | 4 | 180-200 | DN150 |
Jiangsu YLD Water Processing Equipment Co., Ltd. is a high-tech enterprise, specialized in the research, development, design, manufacture, installation, technical consultation and personnel training.
We mainly produce electronic scale removal, UV sterilization, filtration, softening and cyclone grit removal technology and equipment. With strong technical force and rich experience, our company strictly implements ISO9001 system in the plan and management. "High technology leads to market development" is our basic concept.
We have extensively cooperated with domestic key universities, research institutions and foreign professional manufacturers, such as DOW (Dow) Chemical Co., Ltd., HYDRANAUTICS (Hydranautics) Company, Company (a professional manufacturer of multi-stage pumps), MILTONROY (Milton) Corporation (a metering pump manufacturer), the US Soft Controller KINETICO and OSMONICS, We have also fully introduced advanced technology. Thus, our technology is always in the leading domestic level. Over the years, our company has specialized in a variety of water treatment equipment for food, beverage, pharmaceutical, hospital, precision electronic, fine chemical, electricity, painting and surface cleaning industries.
Our "LYD" high-quality products at reasonable prices and perfect after-sales services have won great trust from worldwide customers,
We are willing to cooperate with the friends from all over the world and creat fine future together!
