Yueqing Maxwel Electric Co., Ltd. >> 5-Mil Thick Polyvinyl Chloride (PVC) Color-Coding Tape/Electrical Tape

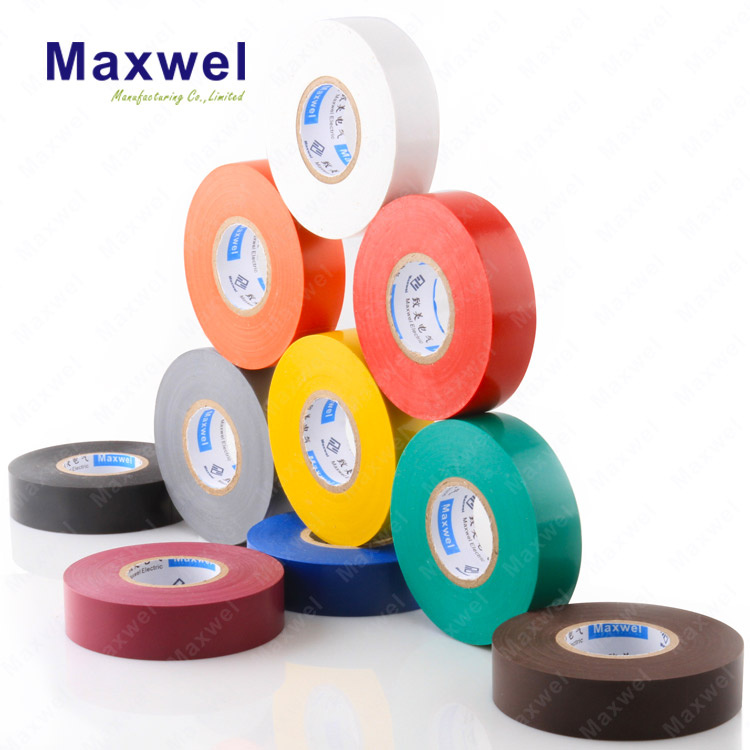

5-Mil Thick Polyvinyl Chloride (PVC) Color-Coding Tape/Electrical Tape

Name: 5-Mil Thick Polyvinyl Chloride (PVC) Color-Coding Tape/Electrical Tape
Brand: china-manufacturer-directory.com
SKU: 772780105
Availability: InStock
Rating: 4.9 (79 reviews)

Supplier:	Yueqing Maxwel Electric Co., Ltd.
Price:	US $ 0.1022-0.1226/Roll
Min Order:	5000/Roll
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	130Z
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Adhesive:	Rubber
Certificate:	UL, RoHS
Thickness:	0.125mm~0.2mm
Width:	Maximum 1250mm
Application:	Electrical Winding Insulation
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Material:	PVC
Thermal Rating:	80 Centi-Degree
Maximum Voltage:	600V
Color:	Red, Blue, Yellow,Green, etc
Brand:	Maxwel

Product Description

Be up to UL and ROHS standard
Soft PVC Film,Strong rubber adhesive
Excellent insulation,High flame retardant
More than 10 years' experience in pvc tape manufacturing
Excellent resistance to voltage and low temperature
Used for insulation protection of electrical wires and harness in automobile industry

180Z PVC Electrical Insulation Tape

PVC adhesive tape is made by smearing rubber like pressure-sensitive adhesive on PVC film (its backing material )and mangling them ,it has the feathers of insulation ,fire-resistance, high-voltage- resistance and cold resistance. It can be used in many electronic spare parts ,automobile wires, winding wires and insulation protection.

Single shrink packing with Maxwel label:

Code	Backing	Adhesive	Thickness (mm)	Adhesion (N/cm)	Tensile (N/cm)	Elongation (%)	Temperature (°C)	Voltage Breakdown (KV/mm)


100D	PVC	rubber	0.1	1.5	14	160	80	≥40
110D	PVC	rubber	0.11	1.5	15	160	80	≥40
130D	PVC	rubber	0.13	1.5	17	160	80	≥40
150D	PVC	rubber	0.15	1.5	22	200	80	≥40
165D	PVC	rubber	0.165	1.5	25	200	80	≥40
180D	PVC	rubber	0.18	1.5	28	200	80	≥40
190D	PVC	rubber	0.19	1.5	28	200	80	≥40
200D	PVC	rubber	0.2	1.5	30	220	80	≥40
100Z	PVC	rubber	0.1	1.5	14	160	80	≥40
110Z	PVC	rubber	0.11	1.5	15	160	80	≥40
130Z	PVC	rubber	0.13	1.5	17	160	80	≥40
150Z	PVC	rubber	0.15	1.5	22	200	80	≥40
165Z	PVC	rubber	0.165	1.5	25	200	80	≥40
180Z	PVC	rubber	0.18	1.5	28	200	80	≥40
190Z	PVC	rubber	0.19	1.5	28	200	80	≥40
200Z	PVC	rubber	0.2	1.5	30	220	80	≥40

About Maxwel Electric

At Maxwel Electric, we efficiently produce a wide variety of tapes and electrical products. Our factory is ISO 9001: 2000-certified, and our products meet various international standards for easier market entry.

A large range for your selection

You can come to us for self-amalgamating, semi-conducting, butyl, mastic, sealing, PVC and aluminum foil tapes. We also manufacture miniature circuit breakers, residual current circuit breakers, residual current circuit breakers with over-current protection, switch disconnectors, distribution boxes and more.

Contact us

Our factory is equipped with state-of-the-art testing equipment, and we perform inspections during every step of production to ensure quality. To learn more, contact us today.
