Oriemac Machinery & Equipment (Shanghai) Co., Ltd. >> 5 Ton Front End Loader XCMG Lw500kn Wheel Loader

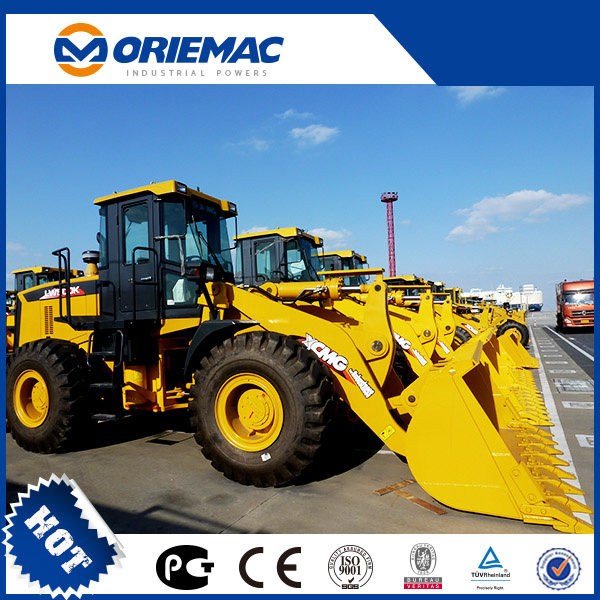

5 Ton Front End Loader XCMG Lw500kn Wheel Loader

Name: 5 Ton Front End Loader XCMG Lw500kn Wheel Loader
Brand: China-Manufacturer-Directory.com
SKU: 685023382
Availability: InStock
Rating: 4.9 (28 reviews)

Supplier:	Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
Price:	US $ 41500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	LW500KN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Loading Capacity:	5t
Bucket Capacity:	3cbm
Dumping Height:	3090mm
Rated Power:	162kw
Dumping Distance:	1010mm
Operating Weight:	17500kg
Type:	Medium-sized Loader
Walking Mode:	Wheeled
Load And Unload Method:	Front Discharge
Certification:	ISO9001: 2000
Condition:	New

Product Description

Popular XCMG 5 ton Wheel Loader LW500K
K series loader is XCMG latest wheel loader of high efficiency with more than 10 years' experience.
The performance, efficiency, structural strength, service life, daily maintenance and operation condition are upgraded all round.
With the two breakthroughs of driving medium and covering part, the machine is ahead of other product of the same kind essentially.
All series products adopt large vehicle body and superstrong structure, especially for the heavyload work condition.
LW500K features the super large operation weight, long machine body, and strong strength and high efficiency, leading in the industry.

Item		Parameter	Unit
Rated load		5	t
Bucket capacity		3	m 3
Dumping height		3090	mm
Dumping distance		1130	mm
Max.drawing force		170	kN
Max. traction		165	kN
Dimension		8185×3000×3465	mm
Operating weight		17200	kg
Boom lifting time		≤6.0	≤6.0
Total time of three devices		11	s
Wheelbase		3300	s
Min. turning radius (bucket outer)		6910	mm
Rated power		162	kW
Travel speed	I Gear (Forward/Backward)	0-11.5/16.5	km/h
	II Gear (Forward)	0-38	km/h
Long boom parameter
Item		Standard bucket	Coal bucket
Bucket capacity		2.7m³	3.5
Rated load		4.5t	4.0t
Dumping height		3710mm	3550mm
Dumping distance		1180mm	1300mm
Dimension		8870×3000×3350	8870×3000×3465
Attachment parameter
Attachment parameter _ snow plow
Pushing snow width		3800	mm
Horizontal rotary angle		±38	°
Vibrating angle		±6	°
Obstacle crossing height		0~150	mm
Rated power		162	KW
Attachment parameter-clamp
Dumping height		3241
Dumping distance		1902
Min. circle diameter and max. opening
Basic model		800×1990
IV model		430×2000
Attachment parameter-Sliding fork
Fork folding angle		20	°
Attachment length		2053	mm
Attachment width		2516	mm
Attachment height		1200	mm
Fork teeth length		1200	mm
Attachment parameter-Side dumping
Bucket width		3000	mm
Dimension		8310×3040×3465	mm
Dumping height( straight/side ) dumping		2960/4125	mm
Dumping distance( straight/side ) dumping		1272/105	mm
Lifting height( straight/side ) dumping		5407/6830	mm
