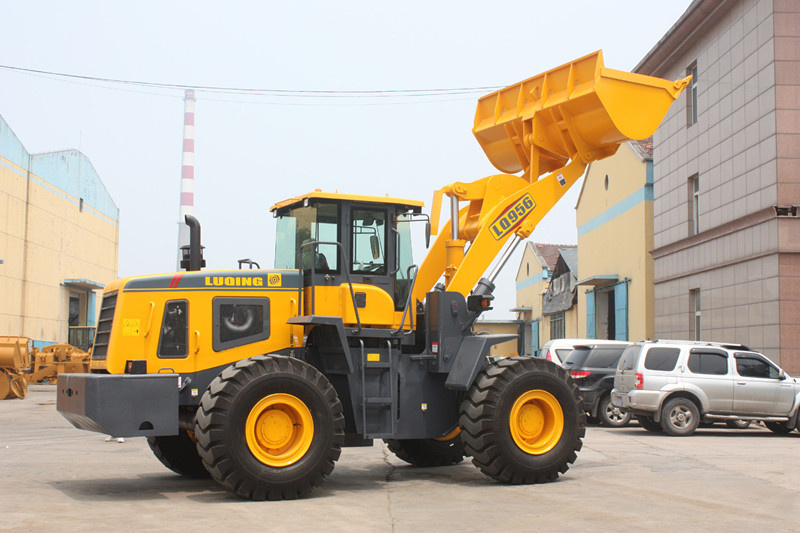

5 Ton Wheel Loader with Cummins Engine

Name: 5 Ton Wheel Loader with Cummins Engine
Brand: China-Manufacturer-Directory.com
SKU: 736633605
Availability: InStock
Rating: 4.4 (55 reviews)

Supplier:	Qingzhou Loader Factory Co., Ltd.
Price:	US $ 39800/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	LQ956
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wheel Loader:	Wheel Loader
Walking Mode:	Wheeled
Condition:	New
Type:	Large Loader
Certification:	CE
Load And Unload Method:	Front Discharge

Product Description

Wheel loader---LQ956 1. Streamlined appearance, beautiful and elegant. 2. STEYR WD10G220E22 engine, rated power, 162kw/2200rmp. 3. Torque converter and counter-shaft transmission gearbox-Komatsu technology, assembled separately, higher reliability and easier maintenance 4. Pilot controlled, fully hydraulic steering system, power shift transmission, easier operation 5. Bucket can be leveled automatically, optimized working device, higher productivity 6. Comfortable operation environment, new design cabin, Grammar seat, air-conditioner at option 7. Various working devices of attachment are available, such as log clamp, pipe clamp, grass fork, plow, ore bucket, loose bucket, fork etc, to meet different needs.

Rated capacity	3m 3
Rated weight	5000Kg
Operating weight	16000Kg
Performance of bucket being set level	Yes
Static tilting load at full steering position	98KN
Max. breakout force	172.6KN
Max. drawbar pull	151.9KN
Max. grade ability	30°
Total of three time: lifting dumping lowering	11.3s
Max. dump height	3098mm
Max. dump reach	1198mm
Min. ground clearance	450mm
Wheel base	3200mm
Overall dimensions(lengthwidthheight)	783630103300mm
Pattern	Inline, water cooled, dir. inject, fourstrokees
Cylinder-bore*stroke	6-126*130
Max. torsion	779Nm
Model of engine	STEYR WD10G220E22
Rated power	162KW
Min. fuel consuming rate	214g/kw. h
Specified rotational speed	2200r/min
Model of torque device	YJ375
Pattern	3-element, single stage
Number of great shift	4 forward, 4 revers
Max. travel speed	38km/h
Main reducer type	Spiral bevel gear, moderationof first stage
Pattern of wheelside moderation	Single stage planetary
Type size	23.5-25
Front type pressure	392KPa
Rear type pressure	343KPa
Pattern	Articulated and hydraulic steering, load sensing meets
Steering angle(each direction)	35± 1
Min. turning radius(outside of bucket)	7268mm
Valve distributing working	DF32@ 2C
Working pumps	CBG3100
Brake system	Air assisted oil type four wheel brake
Parking brake	Air cutting control inner expand hoof
Fuel capacity	320L
Pressure of working hydraulic system	160kfg/cm 2
