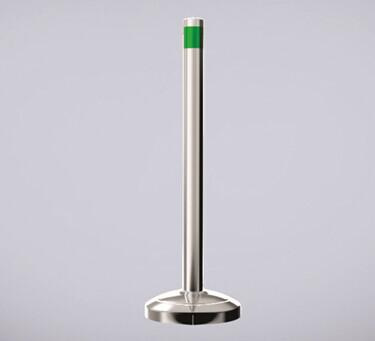

5008-Column Pedestrians, Parcel-Channel Monitoring System

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Energy Range:	20kev-3mev
Power Supply:	220V / 50Hz AC
Protection Class:	IP55

Product Description

Specifications

Nominated supplier of professional equipment for AQSIQ

Manager: Mr. Liu +86 13773240991

5008 Column pedestrians, Parcel-channel monitoring system using a large volume NAL (TI) gamma detector, set the dose rate settings, radionuclide identification number of levels as a whole, can quickly and efficiently through the pedestrians, baggage radiological examinations.

Instrument features

- NAL large volume scintillation detector
- Real-time count rate and dose rate settings, radionuclide identification
- Automatic spectrum stabilization technology, environmental adaptability
- Local sound and light alarm, ultra-sound and light alarm thresholds, user adjustable alarm threshold
- ANSI compliant nuclide library, including special nuclear materials, industrial radionuclide, medical radionuclides, natural radionuclides and user-defined radionuclide
- Built-in rechargeable battery, can be flexibly deployed
- Multi-component region can be dispatched radioactivity monitoring network

Product Hardware

--Gamma detector: Two plastic scintillator detectors, single volume 15L; Lead with a five-sided shielding to ensure an effective shield against the background of gamma detector has a self-test function;

--The main control unit: Control system operation, system status display, alarm control and the like instructions;

--Sound and light alarm devices: Local sound and light alarm, red warning lights, effectively distinguish gamma alarm and ultra sound and light alarm thresholds

--RMON center: By one or more computer servers as remote monitoring platform for local radioactive material monitoring system for remote monitoring through proprietary software running on it, databases, etc. To achieve. Measurement results display, data storage, data analysis, system control and maintenance, remote parameter settings, fault diagnosis; Based on TCP / IP protocol, multi-point network surveillance, monitoring center can be composed by using multiple computers, while a monitoring system for monitoring radioactive substances, can guarantee in the case of a computer failure continue normal monitoring work; Having a central database for data management functions; Historical data on the device and the center should be automatic synchronization, instant local storage of radioactive material monitoring data monitoring system in order to calculate the day by 100 records, data can be stored for 15 years, the central database should be able to back up the annual historical data, to ensure that the query efficiency, historical data after the backup still can easily query has been backed up.

Product Configuration

Gamma detector 2-4 only
Sound and light alarm device * 1
Chinese application software and related instruction manual * 1
The main control unit * 1
Channel occupancy sensor * 2 pairs
Remote Monitoring Center * 1

Optional
--SMS alarm module * 1
--Video surveillance capture system * 1
