Product Specifications
| Prod Model: |
500KW/625KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Brand: |
Volvo |
| Alternator Brand: |
Stamford |
| Control Panel: |
Intelilite/Deepsee/Smartgen |
| Speed Regulation: |
Electronic Governor |
| Frequency: |
60Hz |
| Rated Voltage: |
220V/400V |
| Rated Power: |
8-2050kVA |
| Noise Level: |
≤ 107db |
| Guarantee: |
1year or 1000hours |
| Insulation Grade: |
High |
| Type: |
Micro-Computer Control Automatic Diesel Generator |
| Stroke: |
Four Stroke |
| Output Type: |
AC Three Phase |
| Installation Method: |
Fixed/Portable |
| Cooling Method: |
Air/Water |
| Conditions Of Use: |
Land/Marine/Trailer |
Product Description

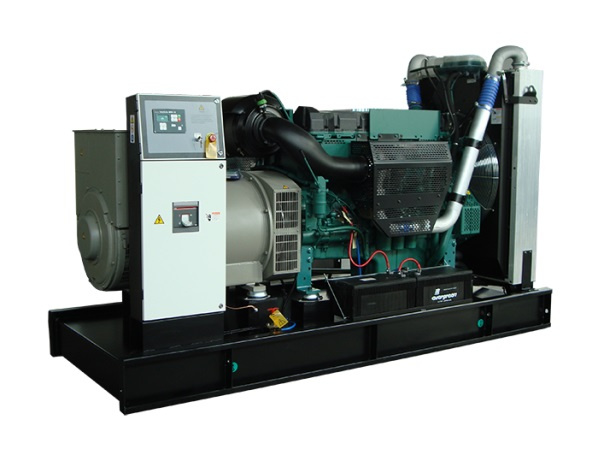

JACA Diesel GeneratorWelcome to JACA:Hangzhou JACA Electromechanical Equipment Co.,Ltd provide world-class open style and slient style diesel generator with Cummins/Perkins/VOLVO/DEUTZ/Doosan/MITSUBISHI/SME/SDEC/Weichai engine. For more information of products which we keep in stock, you can communicate with us by email, we are looking forward to cooperate with you.
Technical Indication: With rigid connection,the small and medium-sized genset equipped with integrated base fuel tank, stainless steel efficient absorber.There is no specail request for the genset installation.The genset can realize full load output at an altitude of 1000 meters and the ambient temperature below 40 ºC.In other circumstance, the genset can in accordance with the relevant standard to output power.
Standard Configuration:Engine: VOLVO PENTA TAD1643GE
Alternator: Single-bearing ,IP23 Protection level
Radiator: 40 ºC Radiator Water Tank
Control Panel: Auto-start,Auto-protect LCD Screen
Breaker: Standard Three-pole Air Switch
Accumulator: 12V Maintenance-free Battery 2 pcs
Absorber: Stainless Steel High-efficiency Absorber
Common Base: Steel Plate Base Plate
Auxiliary: Exhaust Bellows,Exhaust Bended Pipe,Industrial muffler and a set of attachment tool
Options:
Engine: Water-jacket heater,Battery Charge,50ºCradiator water tank,oil-water separator
Alternator: Anti-condensation heater,Permanent magnet generator

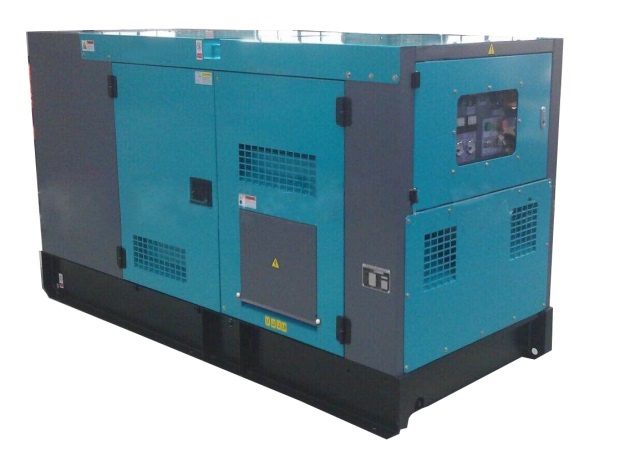

Genset: Silent Type,Super Silent Type,Trailer Type,Container Type,Anti-rain Type
Others: Base fuel tank,Daily fuel tank,Automatic adding fuel system
Electrical Options: Luxurious Auto Control Panel,ATS Auto over-load Control Panel,Auto Parallel Operation Control Panel,Power output cabinet
Our Services:1.Before sale Service: we provide detailed product technical parameters for equipment choosing and system designing.
2.Onsale Service: 24 hours online support technical guidance, remote installment, maintenance ,technique instruction.
3.After-sale maintenance service:We create files for users and provide them follow-up service,regular return visit and permanent maintenance.
4.Spare parts supply:We provide all kinds of spare parts and technical support.
5.Service quality assurance:our sale staffs are all experience and professional,who can provide the most proper system design and optimized equipment for the customers.
| PRODUCT DESCRIPTION OF JACA DIESEL GENERATOR |
| Basic Information | Genset Model | J625VS |
| Rated Power | KW | 500 |
| KVA | 625 |
| Standby Power | KW | 550 |
| KVA | 700 |
| Frequency | HZ | 50/60 |
| Voltage | V | 254/440 | 240/415 | 230/400 | 220/380 |
| Standby Current | A | 902 | 956 | 992 | 1045 |
| Genset Parameter | Voltage range | ±5% |
| Voltage regulation | ≤±1% |
| Frequency regulation | ≤5% |
| Frequency fluctuation rate | ≤1.5% |
| Transient frequency deviation sudden increase | ≤--10% |
| Frequency recovery time sudden increase | ≤5S |
| Voltage stability time 100%sudden reduce | ≤6S |
| Frequency recovery time100%sudden reduce | ≤5S |
| Transient frequency deviation 100%sudden reduce | ≤+12% |
| Transient voltage deviation100%sudden reduce | ≤+25% |
| Transient voltage deviation sudden increase | ≤--20% |
| Voltage stability time sudden increase | ≤6S |
| Engine Parameter | Brand/Origin | Volvo Penta/ Sweden |
| Model | TWD1643GE |
| Cylinders | 6/vertical in-line |
| Governor Type | Electronic |
| Start method | DC24VElectric start |
| Rated Speed | RPM | 1500 |
| Type of injection | Direct injection |
| Bore * Stroke | mm | 144*165 |
| Max Power | KW | 596 |
| Max. sump capacity | L | 48 |
| Air intake Method | Turbocharged |
| Cooling Method | Closed circulated water-cooling |
| 110% Over-load fuel consumption | g/kwh | 199 |
| 100% Over-load fuel consumption | g/kwh | 196 |
| 75% Over-load fuel consumption | g/kwh | 196 |
| 50% Over-load fuel consumption | g/kwh | 215 |
| Alternator Parameter | Brand/Model | Stamford/HCI544FS |
| Protect Grade | IP22 |
| Phase | Three phase |
| Bearing number | 1 |
| Exciter type | Brushless, self-exciting |
| Power Factor | COSΦ | 0.8 |
| Insulation Grade | H |
| Adjusting mode | AVR |
| Telephone influence factorTHF | <50 |
| Connection | Three phase four wire, Y connection |
JACA has been specialized in manufacturing diesel generators and accessories for more than 20years. It has knotted fast and extensive business ties with over 1000 clients both in China and abroad, and turned up as a leading player in the world generator area. JACA is the executive member of the China Chamber of Machnery & Electronics and an AAA grade company for bank credit entitled by the bank in China.
JACA has a wide range of qualified diesel generators for sale, including silent type diesel generator, open type diesel generator, portable diesel generator, trailer diesel generator, container diesel generator and diesel generator with Cummins, DEUTZ, Volvo, SME engine and Stamford, meccatte alternator and also with famous Chinese brand engines like SDEC, Kofo, Cangchai and etc.
JACA products are widely used in the application areas of industry, energy, chemistry, mine, hospital, building, transportation and water conservancy, etc. Power changes life! We are devoting ourselves to more power applications of diesel generator.
Customer first, good service, high quaity are our missions! We are looking forward to set up brand new business relationship with you in prosperous 2015!
