50W Double Arm LED Solar Light

Name: 50W Double Arm LED Solar Light
Brand: China-Manufacturer-Directory.com
SKU: 758766095
Availability: InStock
Rating: 5 (126 reviews)

Supplier:	Lux-Tech Energy Co., Ltd.
Price:	US $ 1140-1150/Set
Min Order:	10/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	LTE-SSL-046
Markets:	South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Working Mode:	Turn on and off Automaticly
Maintenance:	Free-Maintenance
Light Source:	LED Lamp
Lamp Body Material:	Aluminum
Light Type:	Solar
Color Temperature:	Cool White
Technics:	Hand-woven
Illumination Time:	6h
Charging Time (',H):	12
Usage:	Factory
IP Rating:	IP65
Certification:	RoHS
Voltage:	12/24V
With Light Source:	With Light Source
Power:	50W *2
Cell Type:	Gel Battery

Product Description

Brief Specification for 50W double arm Solar LED Street Light with 8m pole, designed based on average solar radiation condition 4.5KWH, Lighting hours: 10 Hrs/Day and 3 rainy days for backup.

Configuration:

50W double arm solar LED street light	50W/24V LED lamp *2
	360W/24V solar panel(180W/24V *2)
	10A/24V charge controller *2
	200AH/24V GEL battery(200AH/12V *2)
	200/24 type underground battery box
	8m galvanized pole with arm and brackets.

Detailed technical parameter:

Detailed technical parameter for 50W double arm solar LED street light
Working Time:10 hours/day, 3 rainy or cloudy dasy backup
Component Name	Technical Parameter for components
*50W/24V LED lamp 2**	LED Power:		50W
	Power Voltage:		24VDC
	Total Lums:		5800lm
	Color Temperature:		6500K
	Illumination:		8M≥30Lux
	LED Quantity:		1W*50PCS
	Luminous efficiency:		140~150Lm/W
	CRI:		>80
	IP Protection:		IP65
	Illumination Area:		24*10M
	LEDs chip:		BridgeLux from USA
	Light transmittance:		≥90%
	Size:		52022060MM
	Weight:		5.5Kgs
*180W/24V Solar panel 2**	Nominal Power(W):		180W/24V
	Type of cell:		Mono or Poly
	Encapsulation:		Glass/EVA/Cells/EVA/TPT
	Cells efficiency:		17.88%
	Maximum power(W):		183.5W
	Voltage at max power(VMP):		35.38V
	Current at max power(IMP):		5.09A
	Open circuit voltage(VOC):		43.21V
	Short circuit current(ISC):		5.95A
	Dimension(MM):		133099235MM
	Weight(KGS):		15.6KGS
*10A/24V charge controller 2**	Standard power:		10A/24V
	Rated voltage(VDC):		24V
	Rated current(A):		10A
	Charge recommended max. current(A):		10A
	The biggest open-circuit voltage(V):		50V
	Charge(V)	Protection:	28.8±0.2
		Floating charge:	26.4~27.2
		Restore:	26.4±0.2
		Temperature compensation:	-26.4mV/ºC
	Low voltage(V)	Disconnecct:	21.6±0.2
		Restore:	26.4±0.2
	Over voltage(V)	Cut off:	35±0.2
		Restore:	23±0.2
	Current without load (mA):		<10MA
	Application ambient temperature:		-20ºC~+70ºC
	IP Protect:		IP67
	Protect function: 1. Battery reverse connection protection 2. Solar panel reverse polarity connection protection 3. Over load and short circuit protection 4. Back flow from battery to solar module protection 5. Battery open circuit protection 6. Lighting surge protection(in case necessary) 7. Over-charging and over-discharging protection 8. LED display 9. Thunder strike protection; 10. Time control and light control.
*200AH/24V GEL battery(200AH/12V 2)**	Nominal Voltage(V):		12V
	Capacity(10HR,25ºC):		200AH
	Dimension	Length(MM)	522MM
		Width(MM)	240MM
		Height(MM)	220MM
		Total Height(MM)	245MM
	Capacity 25ºC (77ºF) To 1.70V/Cell	20 hr rate:	202AH
		10 hr rate:	198AH
		5 hr rate:	158AH
		1 hr rate:	120AH
	Weight(KGS):		55.0KGS
200 Type battery box	Material:		PP(200/24)
8M glavanized pole(with double 1.2m arms and brackets)	Standard height:		8M
	Material:		Q235
	Top diameter(MM):		76MM
	Bottom diameter(MM):		165MM
	Thickness(MM):		3.5MM
	Baseplate(MM):		28028014MM
	Anchor bolts(MM):		4M20700MM
	Hot dip galvanized thickness not less than 80um

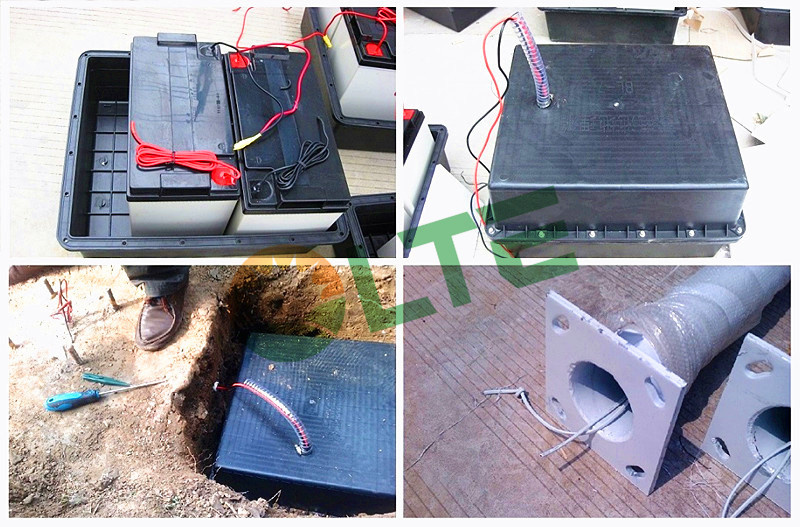

Installation pictures:

Working principle:
1. LED solar street light relies on solar energy, which is clean, endless and environment-friendly.
2. The system is mainly composed of solar panel, light source, controller and free-maintenance battery.
3. In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. At night or rainy or cloud condition, the battery shall supply power for normal lighting.
4. The controller can judge the brightness of daylight and automatically switch on the light. The whole process is operating in completely automatic mode, without human action.

How to choose models from LTE-Solar?
First:
1).the power of your required LED light?
2).the height of the pole?
3).how many hours/night the light can work?
Second: If you have no idea on the above question, please inform us below:
1). What's the width of road?
2). What's your request on the power of the light source?
The Third:
Please choose your favorite model from our website or the catalogue.
