[Description]

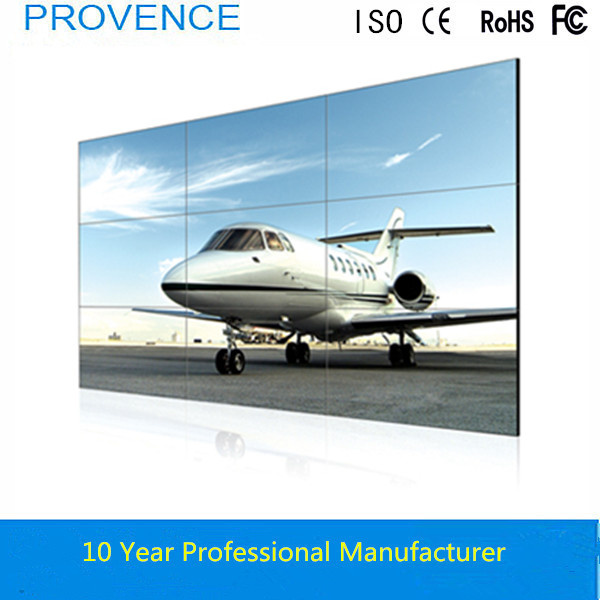

55' LCD Video wall monitor is the main products of our company;
The panel of 55 inch LCD video wall using brand panel such as Samsung, LG and sharp
The bilateral gap between each panel from 3.5 - 20mm. Resolution up to 1366 * 768/1920 * 1080
The highest single-screen resolution is 1080p, taking advantage of the new industrial design, combined with advanced processing equipment. A collection of the most advanced 3D digital image processing engine, true image, precise monitoring more detail; Support 7x24x3657 non-stop work.
Rich interfaces to meet any required applications, intelligent backlight adjustment, automatic temperature control system make 55' lcd video wall more environmentally friendly, stable and reliable.
Provence have UT, UX series of professional-grade LCD video wall monitor with high brightness, high contrast, high color saturation, wide viewing angle and high reliability. 120Hz dynamic processing technology has twice the processing power of the double processing speed improvement. Up to 50, 000 hours or more long life, far more than any other similar product cost.
The products have been widely used in various applications, such as public security, finance, energy, transportation, mining, government, electricity, railways, workshops, TV studio, large-scale performances, exhibitions, hotels, supermarkets monitor, research and education, medical application, military command, weather report, museums exhibition, and real estate industry.
[Function]
FHD resolution, viewing angle: 178o (H/V), high contrast ratio and colour saturation.
Slim bezel, excellent tiled visual performance
Metal case: Anti-static, antimagnetic & anti-interference performance
Designed and engineered for 24/7 operation. Long lifetime: >50, 000 hours.
Professional driving IC (adopting 3D comb filter and digital noise reduction technologies), ensuring high quality and stable colour performance.
Smart fan controlled by built in temperature sensor results in smart working temperature control.
Energy saving, very eco-friendly low power.
HDMI, DVI, VGA etc. Multiple I/O ports allow for greater compatibility and flexibility.
Various installation methods: Wall mount, floor stand, cabinet-mount etc.
Operation modes: RS232, Remote control, Key control
Ideal video wall solution for showrooms, exhibitions, CCTV system etc.
|
LCD panel |
|
|
|
|
Diagonal Size |
55" |
|
|
|
Aspect Ratio |
16:9 |
|
|
|
Pixel Pitch |
0.63(H)×0.63(V) |
|
|
|
Response Time |
8ms |
|
|
|
Resolution |
1920x1080 |
|
|
|
Contrast Ratio |
3500:1 |
|
|
|
Brightness (cd/m2) |
450cd/m2 (LED backlight ) |
|
|
|
Active display area |
1209.6(H)×680.4(V) |
|
|
|
Display Color (Max) |
16.7M |
|
|
|
Viewing Angle(U/D,L/R) |
H:89o/89o V:89o/89o |
|
|
|
I/O (Input) |
(Standard) |
-4 |
-D |
|
VGA |
X1 |
X1 |
X1 |
|
DVI |
X1 |
X1 |
X2 |
|
HDMI |
X1 |
X1 |
X1 |
|
Display Port(DP) |
/ |
/ |
X1 |
|
YPbPr |
/ |
/ |
X1 |
|
CVBS |
X2 |
X4 |
X2 |
|
Svideo |
/ |
/ |
/ |
|
RJ45(for RS232 IN) |
X1 |
X1 |
X1 |
|
USB(for Debug) |
X1 |
X1 |
/ |
|
I/O (Output) |
|
|
|
|
RJ45(for RS232 OUT) |
X2 |
X2 |
X1 |
|
Display Port(DP) |
/ |
/ |
X1 |
|
CVBS out |
/ |
/ |
/ |
|
Features and Benefits |
|
|
|
|
Daisy chain |
NO |
NO |
>100 |
|
ID code(by software) |
NO |
NO |
Yes |
|
Support 4K mode |
NO |
NO |
Yes |
|
Multi monitors (Max:15x15) |
Yes |
Yes |
Yes |
|
Image residual function |
Yes |
Yes |
Yes |
|
Built-in temperature sensor |
Yes |
Yes |
Yes |
|
Colour Auto balance |
Yes |
Yes |
Yes |
|
On/Off Timer |
Yes |
Yes |
Yes |
|
License Agreement |
Yes |
Yes |
Yes |
|
Brightness is balanced |
Yes |
Yes |
Yes |
|
ECO mode |
Yes |
Yes |
Yes |
|
Smart fan |
Yes |
Yes |
Yes |
|
Work status display |
Yes |
Yes |
Yes |
|
Multi Windows |
Yes |
Yes |
Max 3 |
|
Roaming |
Yes |
Yes |
Yes |
|
Vertical video wall |
NO |
Yes |
NO |
|
Any mode video wall |
NO |
Yes |
NO |
|
Technical Specification |
|
|
|
|
OSD language |
, English |
|
|
|
Video Format |
PAL \ NTSC |
|
|
|
Case Material |
Metal |
|
|
|
Color |
Black |
|
|
|
Horizontal Frequency |
20 ~ 82KHz(Anolog&Digital) |
|
|
|
Vertical Frequency |
55~75Hz |
|
|
|
Optimum Resolution |
1920x1080 at 60HZ |
|
|
|
Native Resolution |
1920x1080 at 60HZ |
|
|
|
Supported Resolutions |
1920x1080;1680x1050;1600x1200; |
|
|
|
1440x1050;1360x768; 1280x1024; |
|
|
|
1280x768; 1024x768;832x624; |
|
|
|
800x600;720x400; 600x480; |
|
|
|
Video Modes(no tuner) |
480i;480p;576i;576p; |
|
|
|
720p(50 and 60HZ); |
|
|
|
1080i(50 and 60HZ); |
|
|
|
1080p(50 and 60HZ) |
|
|
PROVENCE (Shenzhen) Technology. Co., Ltd was established in Shenzhen China in Juanary 2011 mainly engaged in intelligent LCD/LED display products. Factory covered over 3000 square meter and there are about 100 employees. Products anging from CCTV monitor, Video wall, Touch all in one, Digital signage to related controller and accessaries etc...
Combined with R&D, marketing, manufacturing & construction as a whole, PROVENCE is not only a terminal display products producer but also a Turkey-solution provider. We have obtained approval of CE, FCC, RoHS ISO9001 Certificates for all products which are exported to America, Canada, Europe, Asian, Middle East and sell well in markets all over the world. Professional OEM/ODM service is also provided.
PROVENCE have been done over 1000 video wall projects for the past few years and had gained reputation for its reliable products and after-sale services. Based on the science and technology, We are aimed to be the No. 1 in intelligent LCD/LED display industry with the principle of "Integrity, Professional & Inovation".
