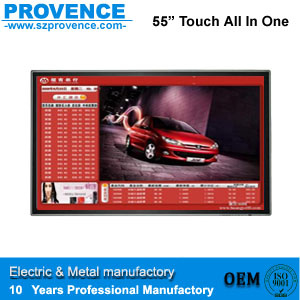

55'' Wall Mount Touch Screen All-in-One Computer

Name: 55'' Wall Mount Touch Screen All-in-One Computer
Brand: China-Manufacturer-Directory.com
SKU: 742543715
Availability: InStock
Rating: 4.9 (142 reviews)

Supplier:	Provence Technology (Shenzhen) Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	PM550TAIO(for wall)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diagonal Size:	55"
Aspect Ratio:	16:9
Pixel Pitch:	0.63(H) X 0.63(W)
Response Time:	<5ms
Resolution:	1920X1080
Contrast Ratio:	1400:1
Brightness:	500d/M2
Activve Display Area:	1210(H)X681(V)
Display Color:	1073.7m
Viewing Angle:	H:178 Degree V: 178 Degree
Memory Capacity:	≥4GB
CPU:	Intel
Display Type:	LED
HDD Capacity:	500GB
GPU:	Intel
Display Screen Size:	≥24"

Product Description

[Description]
55" Inch Touch screen panel TV All in One PC. TAIO's full name is Touch all in one. This product include touch screen and PC system inside. Interactive touch screen, is integrated with multimedia equipment and display the touch screen module, liquid crystal display LCD technology is set, the technology of electronic whiteboard solution for the integration of high-tech products.

[Function]
The configuration is follow customer require. Such as CPU, Memory, Hdd and so on.
Support windows XP/7/8.
Interactive touch function, combined with the special software, can achieve interactive effect.
Multitouch support in windows7/8, support 2 ~ 32 points multi-touch function.
Free correction, free driving function, easy for user without driver.
FHD LED screen, high brightness, and high contrast, high resolution.
Compatible USB playback function, including video, pictures, MP3 players and other various playback mode.
Multimedia function, this product have various interface: HDMI, USB, etc., compatible and easily connect a variety of peripheral devices.
The speed of touch up to 300 points, writing smooth, fast response.
Support single point touch, the mouse control, multi-touch, available to different situation.
Can be used with a variety of software, to adapt to a variety of applications.

55'' Wall Mount Touch Screen All-In-One Computer
LCD panel
Diagonal Size	55"
Aspect Ratio	16:9
Pixel Pitch	0.63(H) x 0.63(W)
Response Time	5ms(G-G)
Resolution	1920X1080
Contrast Ratio	1400:1
Brightness (cd/m2)	500d/m2
Active display area	1210(H)X681(V)
Display Color (Max)	1073.7M
Viewing Angle(U/D,L/R)	178°(H)/ 178°(V)
PC system
CPU	Intel 1037U (I3,I5,I7 option)
Chipset	Intel chipset
Graghpic Chipset	Integrated graphics
Memory	2G(4G/8G/16G option)
Hardisk	500G(Option: SSD)
Lan	10M/100M
WIFI	Option
Audio
Stero Speaker	2x10W
PC system I/O
USB 3.0	X2
USB 2.0	X2
Lan(RJ45)	X1
Audo Output	X1
Mic	X1
DisplayPort output	X1
HDMI output	X1
RS232 port	Option
VGA output	Option
Touch parameters
Inductive technology	Infrared Single/Double touch
Touch point	1~32 points
Inductive objects	Finger,pen, any other non-transparent objects
Inductive size	Diameter≥5mm,recommended size≥7mm
Resolution	4096*4096
Response time	Dual touch:first click:8ms,continuous:8ms
Response time	Single touch: first click: 8ms,cintinuous:3ms
Cursor speed	Single: highest 300 dot/s, dual touch:125 dots/s
Operating life	≥60,000,000 times to touch
Multi Touch	Support Wind7/8
Positioning calibration	Support HID device, plug and play, no need driver and calibration, match-management program for positioning calibration.



Light anti-decay	light anti-decay circuit, maitains stable performance for a long-time working
Light anti-decay
Anti-light interference	Can work in the condition of direct sunlight
Technical Specification
OSD language	Simplify Chinese, English
Horizontal Frequency	20 ~ 82KHz(Anolog&Digital)
Vertical Frequency	55~75Hz
Optimum Resolution	1920x1080 at 60HZ
Native Resolution	1920x1080 at 60HZ
Supported Resolutions	1920x1080;1680x1050;
	1440x1050;1360x768;
	1280x1024;1280x768;
	1024x768; 800x600;
	720x400; 600x480;
Video Modes(no tuner)	480i;480p;576i;576p;
	720p(50 / 60HZ);
	1080i(50 / 60HZ);
	1080p(50 / 60HZ);
Operation/Sotrage
Operating Temperature	00C~400C
Operating Humidity	10%~90%
Storage Temperature	-200C~600C
Storage Humidity	0%~90%
Features and Benefits
System voltage detection	POP/PIP
CPU/temperature detection system	Image automatically adjust
CPU fan speed detectionsystem	Manually adjust the image position
CPU smart fan control	Color automatically adjust
Intel? Smart Connect	Color manual adjustment
Intel? Quick Sync 2.0	white balance adjustment
Intel? Rapid Start	ADC adjustment
Support DirectX 11	3D decoding
Support DisplayPort	3D comb filter
HDMI new technology	3D noise reduction
Anti-static, magnetic field, strong electric field	Double to interlaced 3D
Intelligent cooling system	3 d light (Y/C) separation
Low energy consumption backlight system	3D color management
Brightness adjustment	3D edge serrated processing
Touch conotrol	3D images of static/dynamic compensation
Toughened glass protection	Screen freezes function
POWER
Power supply:	AC 100~240V(+/-10%)/50-60Hz
Power consumpiton:	≤500W
Stand-by:	≤1W
Safety and Ergonomics
Quality standards:ISO9001,CCC,FCC,CE,ROHS
Environmental standards:All components,accessories are compliant with international standards.
Optional accessories
Card reader	DP cable(1.5m)
WIFI module	VGA cable(1.5m)
3G module	HDMI cable(1.5m)
Accessories
Touch pen * 2	User manual * 1
Wall mount * 1	Power cord *1
Mechanical Spec
Hole for wall mount:	/
NW/GW:	70kg/80kg
Dimension(W/O stand):	Body:188880675mm/Set:81245050mm
Packing Dimension (1 pcs/ctn):	Body:1940900180mm/Set:82046060mm
Warranty
13 months (LCD monitor and components)

PROVENCE (Shenzhen) Technology. Co., Ltd was established in Shenzhen China in Juanary 2011 mainly engaged in intelligent LCD/LED display products. Factory covered over 3000 square meter and there are about 100 employees. Products anging from CCTV monitor, Video wall, Touch all in one, Digital signage to related controller and accessaries etc...

Combined with R&D, marketing, manufacturing & construction as a whole, PROVENCE is not only a terminal display products producer but also a Turkey-solution provider. We have obtained approval of CE, FCC, RoHS ISO9001 Certificates for all products which are exported to America, Canada, Europe, Asian, Middle East and sell well in markets all over the world. Professional OEM/ODM service is also provided.

PROVENCE have been done over 1000 video wall projects for the past few years and had gained reputation for its reliable products and after-sale services. Based on the science and technology, We are aimed to be the No. 1 in intelligent LCD/LED display industry with the principle of "Integrity, Professional & Inovation".
