Qingdao Desiree Group Rubber Machinery Co., Ltd. >> 55L Rubber Kneader Machine

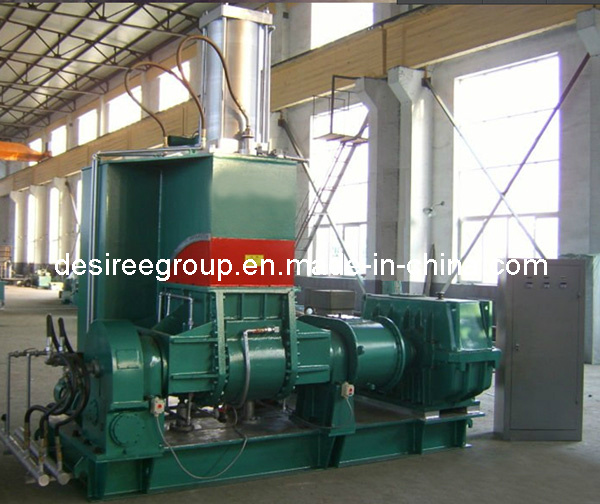

55L Rubber Kneader Machine

Name: 55L Rubber Kneader Machine
Brand: china-manufacturer-directory.com
SKU: 691493072
Availability: InStock
Rating: 4.3 (103 reviews)

Supplier:	Qingdao Desiree Group Rubber Machinery Co., Ltd.
Price:	US $ 31000-35000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	X(S)N-55x30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	General Rubber Machinery
Type Of General Rubber Machinery:	Material Processing Machine
Type Of Tire Machinery:	Rubber Regeneration Machinery
Name:	Rubber Kneader Machine
Rotor:	2-Wing
Total Volume Of Mixing Chamber:	125L
Working Volume Of Mixing Chamber:	55L
Driving Motor Power:	75kw
Tilting Motor Power:	2.2kw
Pressure Of Compressed Air:	0.6~0.8mpa

Product Description

Rubber Kneader Machine

Function:
Mainly used for plasticating and mixing of natural rubber, synthetic rubber, reclaimed rubber and plastics, and used in the mixing of various low glue degree materials.

Features:
1. Mixing chamber tilting type: Hydraulic or motor drive

2. Rotor: Two-wing/blade or four-wing/blade rotor

3. Rotor surface: Plated with hard chrome, and polished treatment without any stick for rubber material

4. Rotor shafts end sealing: With good quality sealing and reasonable design

5. Gearbox reducer: Use qualified and famous brand

6. PLC control: Omron brand or as requested by customer

7. Dust collector: Available by requirement

Advantages:
1. Reasonable design, tightly construction, occupying small area, installing convenience.

2. High efficiency of production,

3. Easy to operate.

4. Easy for cleaning the mixing chamber and replacing color material. The mixing chamber adopts close construction. Cooling & heating system is good.

Our Services:
1. One year warranty after commissioning.
2. Engineers available to service machinery overseas.
3. If there is problem, we will give feedback within 24hours.

Any question about our products, please feel free to contact with me.

Rubber Kneader Machine Model No.	X(S)N-35×30	X(S)N-55×30	X(S)N-75×30	X(S)N-110×30
Total volume of mixing chamber(L)	75	125	170	250
Working volume of mixing chamber(L)	35	55	75	110
Driving motor power(kW)	55	75	110	185
Tilting motor power(kW)	2.2	2.2	4	5.5
Tilting angle(°)	140	140	140	140
Rotational speed of the rotor (front /rear)(r/min)	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of compressed air(MPa)	0.5~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Capacity of compressed air(m3/min)	≥0.9	≥1.0	≥ 1.0	≥1.5
Pressure of cooling water (rubber mixing )(MPa)	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4
Pressure of heating steam (plastics mixing )(MPa)	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8
Dimensions(L * W *H)(mm)	320019002950	323019272958	332526153105	407527123580
Gross weight(t)	~6.3	~7.1	~9.5	~14.9
