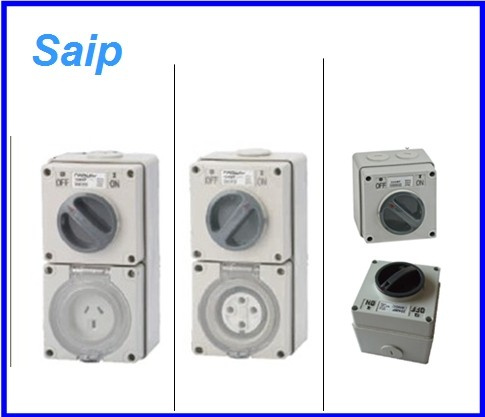

56 Series 3 Pin Socket Outlet with Switch (56 series)

Name: 56 Series 3 Pin Socket Outlet with Switch (56 series)
Brand: china-manufacturer-directory.com
SKU: 675041341
Availability: InStock
Rating: 4.5 (107 reviews)

Supplier:	Yueqing Saibang Electric Co., Ltd.
Price:	US $ 1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,DAT

Product Specifications

Prod Model:	56 series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Nam:	Saip
Rated Current:	50A
Current:	10,20,32,40,50A
Model Number:	56CV
Rated Voltage:	500V
Color:	Grey and Orange ,White
Grounding:	Standard Grounding
Type:	With Switch
Application:	Industrial
IP Rating:	IP66

Product Description

56 Series 3 Pin Socket Outlet with Switch (56 series) Feature: Easier switch and socket operation Modern contoured profile 56 Series™ Heritage look & fully backwards compatible Reduction of potential dirt build-up areas Improved strength and reliability Specification: Proven IP66 Protection Superior Impact Strength High Level of Switch Performance Specially Formulated Chemical Resistance Solvent Bonding Capability Greater UV Resistance Full Range of Matching Gear Modules Making Assembly Simple Quick, Easy, and Safe Wiring Powered by Innovation: Providing superior user and installer solutions, the iconic 56 Series™ Is taken to a new level New range, new benefits, New Zealand tough Since the beginning of the 1980s the 56 Series™ Has earned a reputation for top performance in resistance to the harsh treatment of industrial environments. Introducing the NEW 56 Series™ , a range with easier operation, improved strength and integrity, whilst maintaining the 56 Series heritage look, and being fully backwards compatible with the old range.

Item No.	56SP310	56SP315	56SP313	56SP316/110	56SP316/240	56SP320	56SP332
Rated voltage Ue (50Hz) V olts	250	250	230	110	230	250	250
Rated thermal current Amps	10	15	13	16	16	20	32
Description	Switched N/Z Aust socket	Switched N/Z Aust socket	Switched British socket	Switched CEE17-4h socket (yellow)	Switched CEE17-4h socket (Blue)	Switched AS1323 socket	Switched AS1323 socket
Switch description	1 way single pole	1 way double pole	1 way double pole	1 way double pole	1 way double pole	1 way double pole	1 way double pole
Utilization category AS3133 250V Amps AS23A 240V Amps KW	10AXM50 15 2.2	16AXM120 15 2.2	16AXM120 15 2.2	16AXM120 15 2.2	16AXM120 15 2.2	20AXM150 21 3.0	32AXM150 28 3.0
Cable cross section solid or min stranded mm2 Max	0.75 1.6	1.0 16	1.0 16	1.0 16	1.0 16	1.0 16	1.0 16
Socket number of pins including (earth)	3	3	3	3	3	3	3
Socket configuration
Cable cross sections solid or min strandedmm2 Max	10 10	10 10	10 10	10 10	10 10	10 10	10 10
IP rating	IP66	IP66	IP66	IP66 without plug IP44 with plug	IP66 without plug IP44 withplug	IP66	IP66

model	carton size/cm	QTY/carton	Description	IP Grade
56sp410	4117.533	20	3 phase 4 round pin 10A angled plug	IP66
56sp420	4117.533	20	3 phase 4 round pin 20A angled plug	IP66
56sp432	46.520.538.5	20	3 phase 4 round pin 32A angled plug	IP66
56sp440	46.520.538.5	20	3 phase 4 round pin 40A angled plug	IP66
56sp450	46.520.538.5	20	3 phase 4 round pin 50A angled plug	IP66
56sp510	4117.533	20	3 phase 5 round pin 10A angled plug	IP66
56sp520	4117.533	20	3 phase 5 round pin 20A angled plug	IP66
56sp532	46.520.538.5	20	3 phase 5 round pin 32A angled plug	IP66
56sp540	46.520.538.5	20	3 phase 5 round pin 40A angled plug	IP66
56sp550	46.520.538.5	20	3 phase 5 round pin 50A angled plug	IP66
56sp310R	4117.533	20	3 phase 3 round pin 10A angled plug	IP66
56sp320R	4117.533	20	3 phase 3 round pin 20A angled plug	IP66
56sp332	46.520.538.5	20	3 phase 3 round pin 32A angled plug	IP66
