Specifications

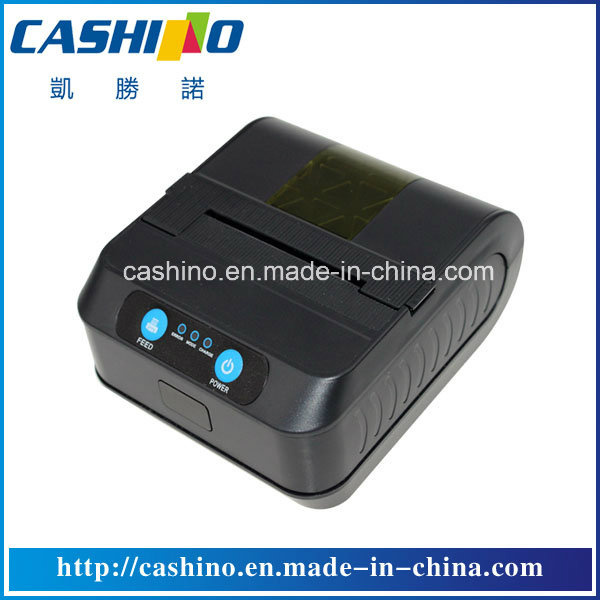

1.58mm dot matrix printer mobile thermal printer Bluetooth printer
2. RS232/TTL+Bluetooth/IR
3. Printing speed: 1.2lps
58mm dot matrix printer mobile thermal printer Bluetooth printer
Feature:
Dot matrix impact printing method
Unique rugged design withstands droping up to 1.2 meters
Support printing when battery in charging
Intelligent quick battery charging
Large paper capacity and long battery life
Specifications:
Printing Method | Dot Matrix |
| Resolution | 5 dots/mm ( 127dpi ) ,240 dots/line |
| Effective Printing Width | 48mm |
| Printing Speed | 1.2 lps |
| Character Set | ASCII,GB2312(Chinese) |
| Print Font | ANK: 7 x5/12 x6/16 x8, Chinese: 12 x 12/16 x 16 |
| Self-defined Character | Yes |
| Graphic | Support bitmap downloading |
| SDK | Android |
| Driver | Windows XP/Windows Vista/Windows 7 |
| Paper End Sensor | Yes |
| Black Mark Location | Yes |
| Auto Sleeping | Yes |
| Interface | PDM02-BT:RS-232/USB+Bluetooth; |
| PDM02-IR:RS-232/USB+Raw-IR |
| PDM02: RS-232/USB |
| Battery | DC7.4V,2000mAh rechargeable Li-ion battery |
| Charger | DC12V/1A |
| TPH | 1.5 Million lines |
| Paper Type | Plain paper |
| Paper Width | 57.5± 0.5mm |
| Paper Thickness | 0.06 to 0.08mm |
| Paper Roll Diameter | 40mm(Max.) |
| Paper Supply Method | Semi-auto Loading |
| Paper Cutting Method | Manual |
| Operating Temp/Humidity | -10-50°C/10%-80% |
| Storage Temp/Humidity | -20-60°C / 10%-90% |
| Dimension | 99×112.3×46(W×D×H) mm |
| Weight | 345g (with battery,without paper roll)
|
