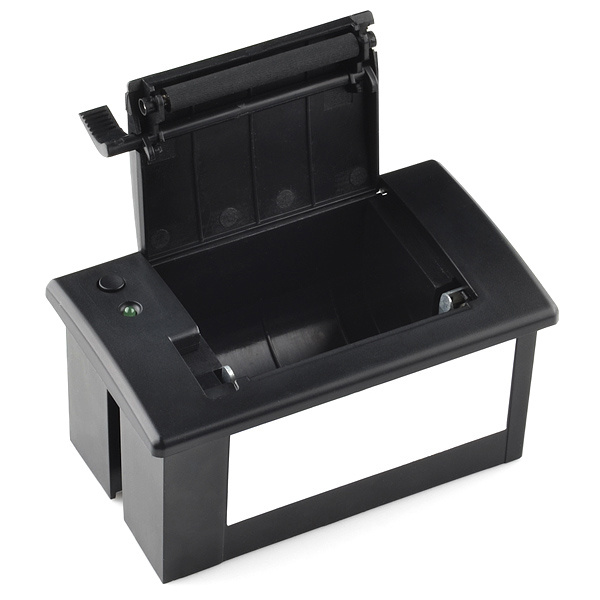

58mm Micro Panel Thermal Printer with 5-9VDC / (TTL/ RS232) Interface

Name: 58mm Micro Panel Thermal Printer with 5-9VDC / (TTL/ RS232) Interface
Brand: china-manufacturer-directory.com
SKU: 759992155
Availability: InStock
Rating: 4.5 (146 reviews)

Supplier:	Xiamen Cashino Electronic Technology Co., Ltd.
Price:	US $ 18.5-28/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	CSN-A2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	2 Inch
Max. Resolution:	8DOT/S,384DOT/Line
Black Print Speed:	50-80mm/S
Color:	Black ,Beige,White
Resolution:	8 Dots/Mm, 384 Dots/Line
Paper Width:	58mm
Printing Width:	48mm
Paper Roll Diameter:	39mm
Power Supply:	5-9V or 12V
Outline Dimension( WDH):	1116557
Usage:	Receipt Printer
Style:	Black and White
Interface Type:	RS232/USB/Ttl/Parallel
Type:	Thermal Printing
Max. Paper Size:	Thermal Paper Width:58mm

Product Description

58mm Micro Panel Thermal Printer with 5-9VDC / (TTL/ RS232) interface

1. Produce Information

Feature:

Smart appearance
Easy paper loading
Low noise thermal printing
Different interfaces optional
Front panel make paper replacement easily
Easily embedded to any kinds of instruments and meters

Specifications

1.58mm thermal mini printer
2.Port:RS-232/TTL/Parallel/USB
3.Power: 5-9V/12V
4.DC:5-9V/12V compatible ESC/POS set
5.Low noise

Packaging & Delivery
Packaging Detail:50units/carton
Delivery Detail:2-3weeks

Application:

1.Medical Equipment
2.Measureing equipment
3.Security Equipment
4.Analyzing Instrument&Meter.

Specification:

2 inch A2 micro panel receipt thermal printer
Print	Printing Method	Thermal Line
	Printing Speed	50-80mm/s
	Resolution	8 dots/mm, 384 dots/line
	Effective Printing Width	48mm
Character	Character Set	ASCII,GB2312-80(Chinese)
Character	Print Font	ANK:(8x16,9x17,9x24,12×24), Chinese: 24×24
Paper Spec.	Paper Type	Thermal paper
	Paper Width	57.5± 0.5mm
	Paper Roll Diameter	Max: 39mm
Reliability	MCBF	5 million lines
Interface		RS-232/TTL/Parallel/USB
Insert Depth		50mm
Power Supply (Adapter)		DC5V-9V/12V
Physical	Outline Dimension (WxDxH)	111x65x57mm
	Installation Port Size	103 x 57mm
	Color	Beige/Black
Environment	Operating Temp	5°C ~ 50°C
	Operating Humidity	10% ~ 80%
	Storage Temp	-20°C ~ 60°C
	Storage Humidity	10% ~ 90%
