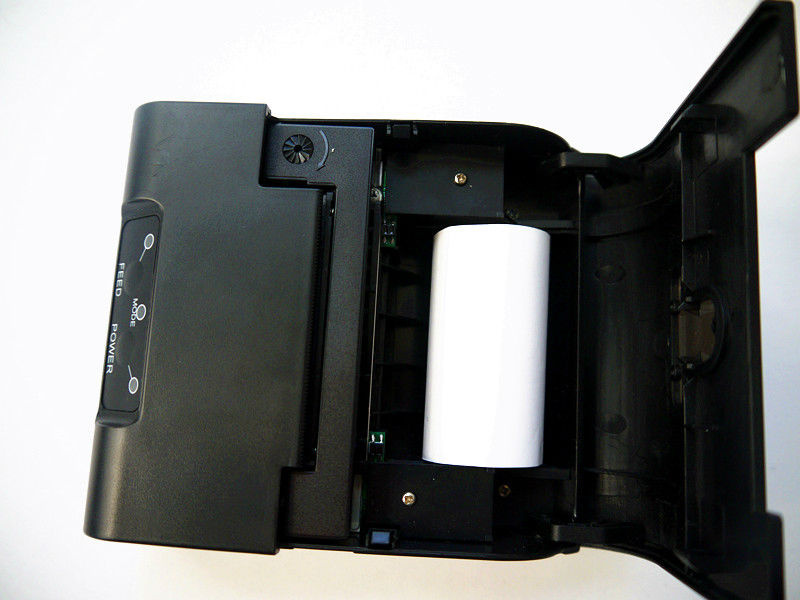

58mm Portable Bluetooth DOT-Matrix Printer
Product Specifications
| Prod Model: |
HCC-T5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Printing Method: |
DOT Matrix |
| Printing Speed: |
5.5mm/S, 1.2line/S(Average) |
| Resolution: |
5 Dots/Mm, 240 Dots/Line |
| Paper Type: |
Plain Paper 57.5± 0.5mm |
| Interface Type: |
Bluetooth |
| Type: |
Dot-matrix |
| Max. Paper Size: |
58mm |
| Usage: |
Receipt Printer and Ticket Printer |
Product Description
58MM Portable Bluetooth Dot-matrix Printer--HCC-T5
Description
HCC-T5 is one of high performance portable Dot Matrix printer (Paper width: 57.5MM). It is much slim, and printing output is high grade, the portable capacity is compliant with mobile transaction, transportation, Police, Express/POST, Checkpoint etc.
Feature
Dot matrix impact printing method
Unique rugged design withstands drops up to 1.2 meter
Semi-auto paper loading
Large paper capacity and long battery life (7.4V, 1500mAh)
Intelligent quick charge battery
Continuing printing when battery in charging
Support a wide variety of serial and wireless communication options
Print | Printing Method | Dot Matrix |
| Printing Speed | 5.5mm/s, 1.2line/s(average) |
| Resolution | 5 dots/mm, 240 dots/line |
| Effective Printing Width | 48mm |
| Character | Character Set | ASCII, GB18030(Chinese) |
| Print Font | ANK: 7 x5/12 x6/16 x8 Chinese: 12 x 12/16 x 16 |
| Character per Line | 12 x12: 20( Chinese); 40(English); 16 x 16: 15( Chinese); 30(English) |
| Paper Spec | Paper Type | Plain paper |
| Paper Width | 57.5± 0.5mm |
| Paper Roll Diameter | Max: 40.0mm |
| Roll Core Inner Diameter | 13mm(min.) |
| Paper Thickness | 0.06 to 0.07mm |
| Paper Supply Method | Semi-auto loading |
| Reliability | MCBF | 1,000,000 lines |
| TPH | 1,500,000 lines |
| Emulation | ESC/POS |
| Sensor | Paper End Sensor, Power Near End Sensor |
| Interface | T5-BT: RS-232, Bluetooth; T5-Ir: RS-232, IrDA |
| Power Adaptor | DC12V/2A |
| Battery Power | DC7.4V, 1.5A rechargeable Li-ion battery |
| Battery duration | 30m continuous printing (25%density) |
| Physical | Weight | 270g(excluding roll paper) |
| Dimension (WxLxH) | 99 x 97 x46mm |
| Color | Black |
Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development, production, sale and service of Intelligent Commercial Equipment, such as:
Multi-payment product line -- Handheld POS terminal, Retail POS, mPOS etc.
Automatic Fare Collection (AFC) product line -- Bus validator machine and system etc.
E-commerce Logistics and IOT industry product line -- Handheld PDA, Mobile printer, Barcode scanner / printer, RFID device etc.
Our factory had obtained ISO9001 certificates over 15 year, and production department is over 3, 000 SQM. We are also professional in OEM and ODM service, welcome to customize and develop the smart device to meet customers' indeed application.
Most of our products have passed CE/FCC/RoHS international standard, and also approved by Unionpay, EMV, PCI, Visa, MasterCard Industry Professional Certifications, which greatly ensure the highest level safety and quality of our products.
In the past 11 years, we have deepened in printing and payment industry and expanded markets in Southeast and Central Asia, Middle East Asia, South America, Africa and Europe etc. Our products obtain sustained growing market share, and exported to clients over 100 foreign countries and regions.
Our company's slogan is "Professional Solution Provider for Intelligent Commercial Equipment --- Smart and Reliable".
Shenzhen HCC sincerely wish to cooperate with your esteemed company, and provide most suitable products and solution to your customers. We co-create one more Intelligent and glamorous business world.
Business Type: Manufacturer/Factory
Management System Certification: ISO 9001,HACCP
International Commercial Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, EXW
Terms of Payment: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Average Lead Time: Peak season lead time: within 15 workdaysOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 21~50 People
Export Year: 2008-03-05
Export Percentage: 71%~90%
Main Markets: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Export Mode: Have Own Export License
Factory Address: Rm. 306, 3/F, Bldg. 6, Changyuan New Material Port, No. 2 Gaoxin C. Ave. 1st, Nanshan Dist, Shenzhen, Guangdong, China
R&D Capacity: OEM, ODM, Own Brand(HCCTG)
No. of R&D Staff: 5-10 People
No. of Production Lines: 6
Annual Output Value: US$10 Million - US$50 Million
