Product Specifications
| Prod Model: |
JMDM-4DMMU |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motion Cinema Control System: |
4D Cinema |
| Products Name: |
Acquisition System |
| Item No.: |
Jmdm-4dmmau |
| Usage: |
Cinema Motion Platform |
| Task: |
Adjust |
| Structure: |
Combination |
| Signal: |
Continuous |
| Mathematical Model: |
Non-Linear |
Product Description
1. Synopsis:
JMDM-4DMMAU is a 4D/5D theater seats and special effects action collection devices, also known as 4D movie action Collector, seat AMD special effect motion editor and player, jingmin digital 4D movie motion Acquisition system, The action generates the production system. It is liberates the manpower, save the time and reduce labour cost Greatly by quick and easy editing the 4D movie motion file. It can help 4D suppliers or operators edit easily large Numbers of 3D movies as 4D motion movies in short time. With the action seat collection of innovative design and Special effects collection device acquisition controller, acquisition control software, power supply is an integral Part, combined with an ordinary computer, that is to constitute a complete set of 4D/5D cinema action and special Effects collection system.
2. Classification and composition:
1). JMDM-4D movie acquisiton system is divided into three degrees of freedom and six degrees of freedom;

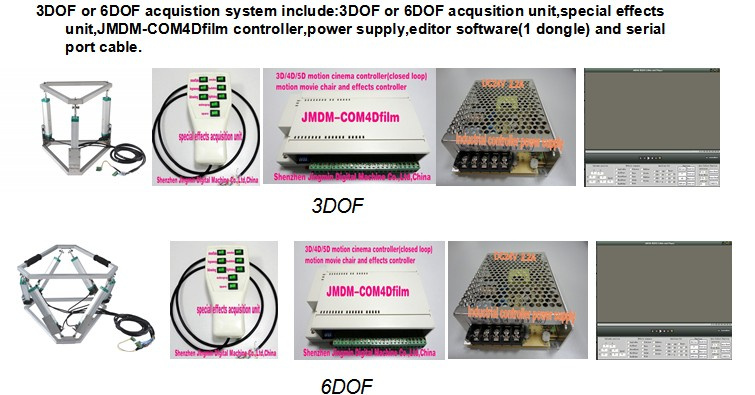

2). Component parts: JMDM-4D movie acquisiton system consists of 4D movie chair motion and special effects acquisition Unit of six or three degrees of freedom, JMDM-COM4DFILM 4D cinema controller, power supply, serial port line, JMDM-4D editor softwaare(with dongle).
3). This motion acquisition system and JMDM-4D control software can make 2 motion file(*. Jm and *. Xls) with the same Name of the movie quickly while watching the 3D movie. *. Xls canbe checked and modified the motion. After modifying, Using the function named of read. Xls file in JMDM-4D editor, then JMDM-4D edtior can make a new motion file: *. Jm Automatically while covering the previous *. Jm. When the JMDM-4D player plays a 3D movie, *. Jm file same name with A movie will be invoked synchoronously. As the source of 4D movie motion, this *. Jm file is the most important role And big difference between 4D movie and common 3D movie.
3. Applicability and compatibility
JMDM-4DMMAU acquisition system generated the action file applies to JMDM Series 4D theater control system: Pneumatic, hydraulic and electric platforms; Three degrees of freedom, six degrees of freedom movement direction of The seat for the action acquisition of action and special effects equipment.
4. Use methods:
Three (or six) degrees of freedom seat action and special effects Collector used with the JMDM-COM4DFILM 4D cinema Controller, 4D movie action special effects editing software, when Using the acquisition system, the seat action Special effect fixed on the ground, two people watching the film and collecting action at the same time, can easily Achieved the editing of 4D Motion. One person responsible for the seat to collection the action, and the other one is Responsible for teh special effects collection, the movies ends, that is the acquisition of the dynamic effects finished, The control system software to automatically collect and edit the action file, the Length of the film is the length Of the time to edit the action.
5. Contrast:
1. The old and traditional method of making motion file is to edit only by software in the 4D movie industry. It takes At least 2 days to edit or make a good motion file of a 10 minutes of movie. Therefore the person editing 4D movie Motion files feels very tired and boring. It wastes the time, manpower cost and money for 4D movie cinema suppliers And operators. In the demands of cutomers in order to liberate human and reduce the cost, JMDM created the method Of editing motion files by JMDM-4D auto-editor software and 4D chair motion pickup and effects acquisition unit Operated by 2 persons.
2. The JMDM-4D cinema control software and controller are the core control parts in a 4D cinema. It can make all 4D Cinema equipments work cooperately without any time delay or asynchronous phenomenon while playing the 3D movie and *. Jm motion file. The process of making motion files is the critical point. JMDM-4D editor is used to make the motion
