Product Specifications
Prod Model: |
MO-714D, CW-664 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Monitoring System |
Technology: |
Infrared |
Kind: |
Autofocus Lens |
Feature: |
Waterproof / Weatherproof |
Sensor: |
CCD |
Horizontal Resolution: |
480tvl |
Application: |
Rear View System |
Product Description

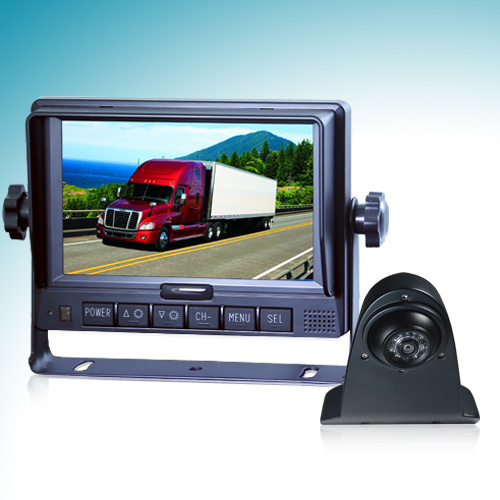

5 inches 16: 9 digital rear view monitor for car Features:
Thin and small, 24.7mm thickness
Wide voltage input: Support 12V or 24V system
Power supply for camera, easy installation
Normal buttons and support remote control function
Backlighting for screen: Automatic backlighting when in dim light longer than 5s (Lighting brightness can be set up
And saved)
Picture image may be adjusted for horizontal or vertical viewing
Auto scan; The scanning function of each channel can be set up to turn on and off separately, scan time (time for
Switching to another channel) can be adjusted from 1 to 90S
Distance label can be turned on or off and adjusted up and down, left and right
Specification:
Shatterproof standard: 2.83G
Working condition: Performs in rugged conditions; Operating temperature: -20º C~70º C
TV system: PAL/NTSC/AUTO
Language system: 8 languages selectable
Video input: 13PIN: Support 3 audio inputs
Distance label: Can be adjusted up and down, left and right.
Auto trigger: 3 camera trigger wires, once triggered, automatically switches to its corresponding camera
Frame ratio: 16: 9
DOT pitch: 0.045(W)× 0.135(H)
Resolution: 800(H)× 480(V)
Brightness: 400 CD/
Contrast: 500: 1
Viewing angle: U: 50° , D: 70° , L/R: 70°
Power consumption: 5W
Power supply: DC: 10-32V
Operating temperature: -20º C~+70º C
Storage temperature: -30º C~+80º C
Side View Camera features:
Camera angle is adjustable
IP rating: IP69K
Wider viewing angle: 150 degrees
Working temperature: -20° C ~ 70° C
Reversing grid is optional
Night vision distance: 10m
With audio
PC1089 Features:
Pixelplus 1/3", 500 TV lines, high definition CMOS sensor: PC1089K
Wide power supply input: 8V ~32V; Working temperature: -40° C~70° C.
With infrared lights; Night vision can auto switch to B/W mode. Good night vision performance, small noise
And no color aberration.
IR-CUT optional, effectively avoid color aberration in daylight. Eg. Shooting green plant in high fidelity in the daylight.
External mirror and normal image adjustable, audio optional, and P/N available.
