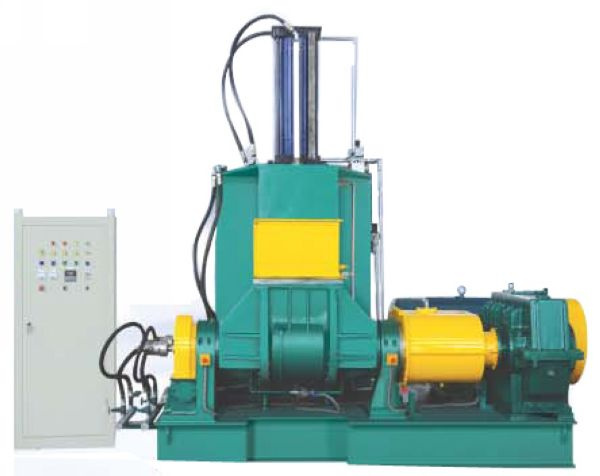

Product Specifications
Prod Model: |
X(S)N-5 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Voltage: |
380V(Designed as Different Countries) |
Power(W): |
11kw |
Mixing Chamber Volume: |
5L |
Tilting Motor Power: |
0.75kw |
Type: |
Rubber Kneader |
Product Description
Specifications
High safty
Environmentally friendly
Low energy cost
Features
1. This equipment possesses temperature and time-control system, can be operate easily and accurately to achieve
effective integration solution
2. Tilt-able mixing chamber and mechanical shaft sealing design for easy cleaning and colour changing.
3. About 6-10 minutes mixing time per batch, its efficient is 2 times of wheel type mixer.
4. Pressure sealed mixing chamber to essure the quality of mixed material and also prevent environment pollution.
5. This machine is solid and easy for operation and maintenance,low malfunction, save both time and power.
Technical Specification
Type | 3L/5L | 10L | 20L | 35L | 55L | 75L | 110L |
Mixing chamber volume | 3L/5L | 10L | 20L | 35L | 55L | 75L | 110L |
Main motor power | 7.5kw | 15kw | 37kw | 55kw | 75kw | 110kw | 160kw |
Tilting motor power | 0.75kw | 0.75kw | 1.5kw | 1.5kw | 2.2kw | 3.75kw | 5.5kw |
Diameter of cylinde | 100mm | 160mm | 200mm | 250mm | 300mm | 350mm | 420mm |
Dust collector motor power | -- | -- | 0.375kw | 1.5kw | 1.5kw | 1.5kw | 2.2kw |
Tiling angle | 110° | 110° | 110° | 110° | 110° | 110° | 110° |
Feed mode(F/R) | F | F | F | F | F/B | F/B | F/B |
Steam/cooling shift mode | automatic | automatic | automatic | automatic | automatic | automatic | automatic |
Shipping volume | 3m³ | 5m³ | 12m³ | 20m³ | 26m³ | 29m³ | 32m³ |
Equipment weight | 1000/1100 | 2300 | 4200 | 6500 | 8800 | 10600 | 14000 |
Install dimension(mm) | 1638*906*1720 | 2150*1350*2200 | 2350*1550*2400 | 2570*2180*2570 | 3370*2460*3180 | 3550*2560*3220 | 4245*2950*3380 |
Chum up shaft forward speed | 38/32 | 38/32 | 38/32 | 38/32 | 38/32 | 38/32 | 38/32 |
Chum up shaft backward speed | 29/25 | 29/25 | 29/25 | 29/25 | 29/25 | 29/25 |
FAQ
1. Are you manufacturer?
Yes, we are BV approved rubber products manufacturer in China.
2. Can you design new product for us?
Yes,we have a professional development team that make new products according to your requirements.
3. What's your payment term?
T/T, L/C.
4. Do you have any certificate of your products?
Yes, CE, BV, TÜV.
5. Do you have any certificate of your company?
Yes, BV, TÜV.
6. How long is your guarantee?
One year (Calculated from the equipment arrives at the customer's side.).
7. How to contact us?
You can click 'send' now.
You can click 'send' now.
You can click 'send' now.
If you want to know more information about our products welcome to contact us in
any time, and welcome to our factory!
Our factory is the sentinel production enterprise for rubber and plastic machinery certified by original Ministry of Chemical Industry. We have been rated as "Contract and trustworthy enterprise" in Wuxi city for many years. Our products sell well throughout the world, such as the Europe, the United States, South America, Southeast Asia, Japan, etc. With the pursuit of "Quality First, Reputation Oriented", we warmly welcome friends from all over the world to visit our factory.
Advantages:
1.300 workers
2.20000 factory area
3. Nearly 30 years experience
4. With a strong capacity of casting, welding, heat treatment, metal cutting and electrical control production
5. An experienced engineering team with excellent design ability
6. Annual sales of USD 15 million
7.2 hours reach Shanghai airport
Main products:
Internal mixer, open mixing mill, roll calender, reclaimed rubber machinery(rubber crusher), extruder and filter, plate vulcanizer, plastic cutter and slitter series.
