Specification:
1. Chip Material: InGaN/Gaasp
2. Shape: Round LED, oval LED, straw hat LED, helmet LED, square LED, flat top LED, bullet LED, concave LED, rectangle LED
3. Available Size: 1.8mm. 3mm, 5mm, 8mm, 10mm
4. Lens type: Water clear, color transparent, colored diffuse
5. Emitted color: Red, White, Yellow, Orange, yellow-green, Green, Blue
6. Different angle available
7. Low power consumption, high intensity, uniform illumination, long life time, low light decay, high quality with competitive price
8. Solid-state, high shock and vibration resistant
9. Major reduction in power cost
10. No RF interference
11. Maintenance free, easy installation
12. Long life 100, 000+hours
13. Superior ESD protection
1: For our factory can provide LED Diode, SMD 1-10PCS free samples for testing before order.
2: Clients can send your inquiry or samples specification and requirement to our E-mail, Customer Service: Ms. Jeanie. We will give you the first reply within one day.
3: For normal type LED, Superflux LED, SMD or High Power LED samples need 1-3 working days.
For special type LED, Superflux LED, SMD or High Power LED samples need 3-5 working days.
4: We will enclosed our Specification Data Sheet with the samples and send to our clients, or
Send those Specification Data Sheet by E-mail after finished and send the samples to clients.
5: Packing: By Anti-Electrostatic Polybag.
6: For our factory used our own printed Box in 3 different size:
24*20*12 CM ( only packing for some samples small box )
30*20*15 CM ( Packing for small trial order )
48*36*20 CM ( 50, 000PCS LED Diode standard Packing )

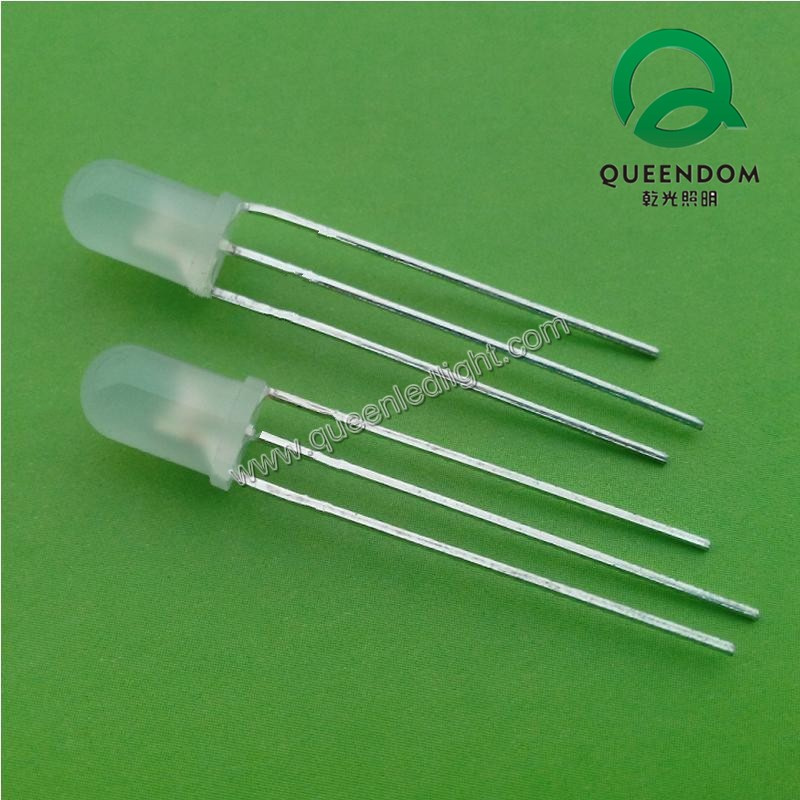

| 5MM White Diffused Round Bi-color common cathode & common anode |
| Product Name | Pins | lense color | Emitting Color | IV Min | IV Max | IV Type | VF Typ | λP Typ (nm) | Beam Angle |
| 5MM Round Bi-color common cathode | 26.5mm | White diffused | Red & Blue | R50 B100 | R800 B1000 | R200 B400 | R1.9-2.4 B3.0-3.4 | R 620-630 B460-470 | 25/45 |
| 5MM Round Bi-color common anode | 26.5mm | White diffused | Red & Blue | R20 B100 | R200 B500 | R500 B200 | R1.9-2.4 B3.0-3.4 | R 620-630 B460-470 | 25/45 |
| 5MM Round Bi-color common cathode | 26.5mm | White diffused | Red & Green | R100 G500 | R300 G800 | R200 G500 | R1.9-2.4 G3.0-3.4 | R 620-630 G520-525 | 25/45 |
| 5MM Round Bi-color common anode | 26.5mm | White diffused | Red & Green | R20 G100 | R500 G1500 | R80 G500 | R1.9-2.4 G3.0-3.4 | R 620-630 G520-525 | 25/45 |
| 5MM Round Bi-color common cathode | 26.5mm | White diffused | Red & Cape Green | R200 G20 | R1000 G100 | R300 G50 | R1.9-2.4 G1.9-2.4 | R 620-630 G565-570 | 25/45 |
| 5MM Round Bi-color common anode | 26.5mm | White diffused | Red & Cape Green | R20 G100 | R300 G60 | R100 G30 | R1.9-2.4 G1.9-2.4 | R 620-630 G565-570 | 25/45 |
| 5MM Round Bi-color common cathode | 26.5mm | White diffused | Red & Yellow | R50 Y50 | R300 Y500 | R100 Y100 | R1.9-2.4 Y1.9-2.4 | R 620-630 Y585-593 | 25/45 |
| 5MM Round Bi-color common anode | 26.5mm | White diffused | Red & Yellow | R20 Y50 | R300 Y500 | R50 Y100 | R1.9-2.4 Y1.9-2.4 | R 620-630 Y585-593 | 25/45 |
