Hubei Heli Special Automobile Manufacture Co., Ltd. >> 5T Refrigerated Van Truck JAC

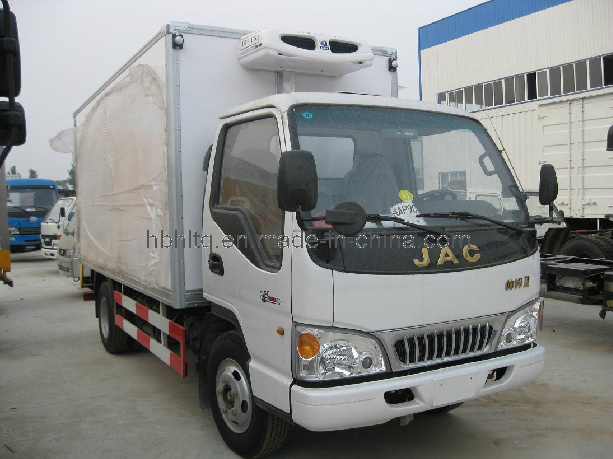

5T Refrigerated Van Truck JAC

Name: 5T Refrigerated Van Truck JAC
Brand: China-Manufacturer-Directory.com
SKU: 701885025
Availability: InStock
Rating: 4.6 (71 reviews)

Supplier:	Hubei Heli Special Automobile Manufacture Co., Ltd.
Price:	US $ 8000-15000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chassis Brand:	JAC
Max Payload:	5000kg Optional Others
Refrigeration Unit:	South Korean Hanya
Refrigeration Temperat:	Minus 18 Degrees
Door:	Rear Door, Side Door, Double Doors, Optional
Other Spares:	Like Hooks, Bottom Slot, Shelves, Extra Doors
Van Material:	Color Plate, FRP, Stainless Steel, Aluminum
Van Thickness:	8cm
Power:	Diesel
Truck Type:	Freezer Truck
Condition:	New
Transmission Type:	Manual
Emission Standard:	Optional

Product Description

5T refrigerated van truck JAC
Truck Chassisbrand: JAC, loading capacity: 5000kg, cooling box size(L*W*H): 4200*1750*1800mm, Minus 18 degrees, Van Material: Color plate, FRP, Stainless steel, aluminum middle of Polyurethane, Thickness 8cm

We are Hubei Heli Special Automobile Manufacture Co., Ltd. One of the most reputable SPV manufacturers in China.

HLQ is a leader of purpose vehicle manufacturer. We produce refrigerator truck, reefer van truck, reefer container semi trailer, refrigerator van semi trailer, refrigerator container, electric power refrigerator van truck.

If you have more requirment, please kindly let Adam Lee know.

We will show our sincerity on cooperation, we will provide you the most important informations, and the most competetive price.

Products Technical Specification
Type		4*2 Refrigerated Truck
Brand		JAC
Cab		Single row, Optional A/C
Vehicle Description
Overall dimensions(mm)		599519102900
G. V. W (kg)		5500
Curb weight(vehicle) (kg)		2700
Loading capacity (kg)		3000-5000
Max speed (Km/h)		95
Engine Description
Engine model		CY4102-C3D
Maximum power		80kw / 108hp
Displacement (lit)		3856
Engine Manufacturer		Dongfeng Chaoyang Diesel Engine Co., Ltd.
Chassis Description
Wheel base		3308
F/R track base(mm)		1580/1395
F/R overhang(mm)		1105/1380
Approach/Departure angle(° )		23/14
Spring plate		3/16
Front axle / rear axle		2T/3.5T
Gear box		5-speed with over drive
Brake system		Hydraulic
Operation control system		Steering wheel
Electric system		24V
Tyres		6.50-16
Up-parts Description
Box Dimensions(mm)	420017501800
Equipment	1. Refrigerator chosen Model: DT-150S South korean Hanya 2. Van Material: Color plate inside, FRP outside of the van, polyurethane foam middle. 3. Back Door(The opening of the door can be different directions. ) 4. Normal temperature, refrigeration temperature reached -18° C— 0° C.
Optional Equipment	1. Van Material: FRP inside & outside of the van, polyurethane as the insulation. stainless steel, Q235 steel sheet or aluminum are all optional. 2. Refrigerators chosen brand from: CHINA, South korean Hanya, American, etc. 3. Other spares like hooks, bottom slot, shelves, extra doors, etc. are all optional.
Refrigeration unit Parameters
South korean Hanya (DONG IN THERMO CO., LTD. )DT-150S
Frozen performance Ambient temperature35° C	0° C		3200kcal/h	R-404a Refrigerant
	-18° C		1060kcal/h
Operating voltage	DC12V/DC24V
Compressor	SD5L14 147CC
Working pressure	≥ 2.25kgf/cm² g ≤ 26kgf/cm² g
Pressure protection	≤ 2kgf/cm² g ≥ 32kgf/cm² g
Condenser (LWH)	915440220mm
Evaporator(LWH)	840505185mm
Control System	Digital integrated automatic controlHC-100
Defrost mode	Automatic hot gas defrost
Weight	58kg

Our product range includes water truck, fuel tanker, fecal suction truck, sewage suction truck, tow truck, concrete mixer truck, dump truck, high-altitude operation truck, self-loading garbage truck, garbage compactor truck, sealed garbage truck, powder truck, low plate semi-trailer, grid-type semi-trailer, van semi-trailer, fence semi-trailer, semi-trailer, Bulk cement transportation semi-trailer, oil semi-trailer, container Semi-trailer, chemical liquid transport semi-trailer, etc., more than 300 types in total.

Hubei Heli Special Automobile Manufacture Co., Ltd is one of largest manufacturers of special purpose vehicles in China.

It was set up in 2002. After ten years' fast development, now we have more than 130, 000 square meters plant area, more than 300 sets of advanced equipments, more than 800 professional workers, more than 300 types special purpose vehicles and more than 50000 units vehicles yearly production capacity with the capacity of Independent research and development.

The production facilities include large CNC machine, bending machine, underwater plasma cutting machine, hydraulic machine, forging Machine, tank molding coiling machine, arc welding machine, X-ray detection machine, ect. The total value is more than 600, 000, 000 RMB.

There are more than 100 senior and intermediate technologists, more than 400 senior and intermediate skilled workers, 20 new products engineers, and more than 100 support personnel in our staff team. Now our capacity of Independent research and development is well known in this industry in China.

The company committed to the pursuit of technology research and application of safety, environmental protection, high efficiency, energy conservation, and automation. The products are evaluated to be "Chinese consumers' satisfactory brand", "National band with good quality and satisfactory service", "Well-known brand in Hubei"; And the company is praised as an "enterprise with integrity to comply with the contract"; Listed as banking credit "AAA" grade; Enterprise with new high technologies'; Pass ISO9001 certification and China Compulsory Certification. Meanwhile we are trying to carry out TS16949, ISO14000 and so on certification systems.

At this moment, we already have business in Russia, Denmark, Georgia, Kazakhstan, Algeria, Australia, Bahamas, ect. All our customers are becoming our good friends and long term parters. Welcome you to join us and develop together with honesty.
