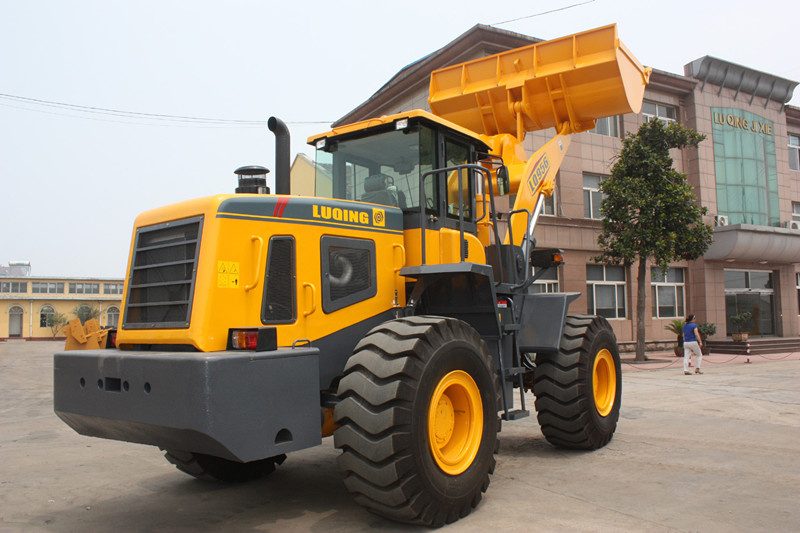

5ton Wheel Loader for Sale

Name: 5ton Wheel Loader for Sale
Brand: china-manufacturer-directory.com
SKU: 733174635
Availability: InStock
Rating: 4.4 (128 reviews)

Supplier:	Qingzhou Loader Factory Co., Ltd.
Price:	US $ 39800set
Min Order:	1set
Quantity::
Trade Terms:	FOB,CIF,DAP

Product Specifications

Prod Model:	LQ956
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wheel Loader:	Wheel Loader
Walking Mode:	Wheeled
Condition:	New
Type:	Large Loader
Certification:	ISO9001: 2000
Load And Unload Method:	Front Discharge

Product Description

Main Components and Configuration: -- Heavy duty, much more powerful, suitable for tough working condition. --Torque converter and counter-shaft transmission gearbox-Komatsu technology, assembled separately, higher reliability and easier maintenance, --Pilot controlled, fully hydraulic steering system, power shift transmission, easier operation, --Bucket can be leveled automatically, optimized working device, higher productivity, --Comfortable operation environment, new design cabin, Grammer seat, air-conditioner at option, --Various working devices of attachment are available, such as log clamp, pipe clamp, grass fork, plow, ore bucket, loose bucket, fork, etc to meet different needs.

Techncial Parameters
Rated capacity	3m³
Rated weight	5000Kg
Operating weight	17000Kg
Max. breakout force	172.3KN
Total time	11s
Max. dump height	3098mm
Dump distance	1198mm
Wheel base	3200mm
Tread	2250mm
Transportation	793430603483mm
Engine
Model of engine	WEICHAI STEYR WD10G220E22 or CUMMINS 6CTA8.3-C215(TIGER1) or 6CTAA8.3-C215(TIGER2)
Pattern	Turbocharger, vertical, water-cooled, 4-stroke, direct injection
Rated power	162KW/160KW
Max. torque	860N.m
Torque converter and transmission system
Model of torque device	HANGZHOU ADVANCE Torque Converter and Gearbox Combination/ZF 4WG200/HANGZHOU 4WG180
Model of torque converter	YJSW315-6J01
Pattern	4-element,single stage
Transmission type	Full-power shift, countershaft type
Number of gear	2 forward,1 reverse
Max. travel speed	40km/h
Axle	XUZHOU
Main reducer type	Arc taper gear, model ration of first grade
Pattern of wheel side moderation	Single stage planetary
Tire
Tire size	23.5-25
Steering system
Pattern	Full hydraulic steering system
Min. turning radius(outside of bucket)	7268mm
Max. turning angle	35°±1
Implement hydraulic system
Implement pump	CBGJ2080
Displacement	250L/min
System working pressure	20.3MPa
Distribution device model	DF32
Pilot valve model	DJS
Brake system
Brake system	Air assisted oil disc on four wheel
Parking brake	Air cutting control inner expand hoof

We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. As a business possessing the broadest range of loader varieties in the industry, the company has been following a policy of "quality for survival, credit for development". It has passed the certifications of CE and ISO9001: 2000 Quality Management System, obtained the import and export right, passed the national commodity inspection, and been successively named the "Contract-stressing & Promise-observing Enterprise in Weifang City, Shandong Province", "Civilized Unit in Qingzhou City", "Advanced Unit in Social Security of Weifang City", and " Trustworthy Private Enterprise of Weifang City". We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
