Jiangyin Spark Electronic Technology Co., Ltd. >> 0-5V 0-10V 4-20mA Split Core DC Current Transducer/Transformer/Transmitter/Transmission

0-5V 0-10V 4-20mA Split Core DC Current Transducer/Transformer/Transmitter/Transmission

Name: 0-5V 0-10V 4-20mA Split Core DC Current Transducer/Transformer/Transmitter/Transmission
Brand: china-manufacturer-directory.com
SKU: 735726805
Availability: InStock
Rating: 4.5 (145 reviews)

Supplier:	Jiangyin Spark Electronic Technology Co., Ltd.
Price:	US $ 6-15/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	XH-SCT-DC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current Transformer:	DC Current Transformer
Current Transducer:	DC Current Transducer
Current Sensor:	DC Current Sensor
Frequency:	50/60Hz
Color:	Black or Blue
Insulation:	3kv
Size:	Small
Accuracy:	1.0
Output:	0-5V DC 0-10VDC 4-20mA DC
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Usage:	Consumption Sensor

Product Description

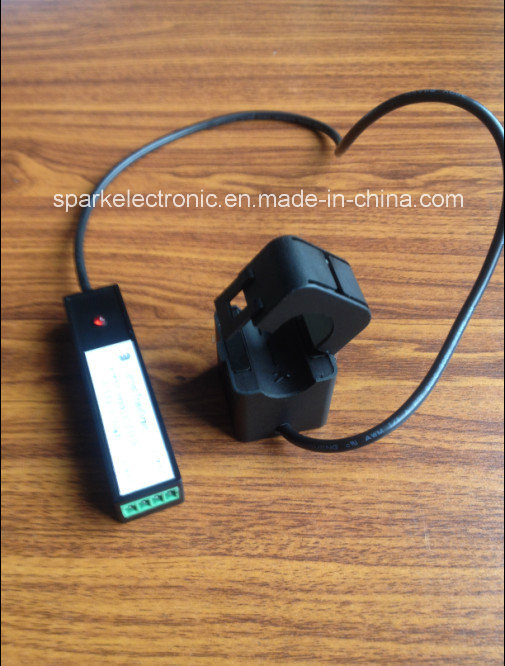

0-5V 0-10V 4-20mA Split Core DC Current Transducer/Transformer/Transmitter/Transmission

Specifications
Input current: 0 to 80A AC
Output Signal: 0-5V DC, 0-10V DC; 4-20mA DC
Measurement Accuracy: +/- 2%
Linearity: +/- 2%
Temperature drift: <5%
Auxiliary power supply: DC12-20V
Maximum Output Signal: 10.5V
Status indication: LED brightness intensifies as
Current increases
Operating Temperature: -30° C to +65° C
Storage Temperature: -40° C to +85° C
Operating Humidity: 10 to 95 %RH non-condensing
Storage Humidity: 10 to 95 %RH non-condensing

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
