Shenzhen Sanlan Power Technology Co., Ltd. >> 5V 2A 10W Switching Mode Power Supply (SL-10-5)

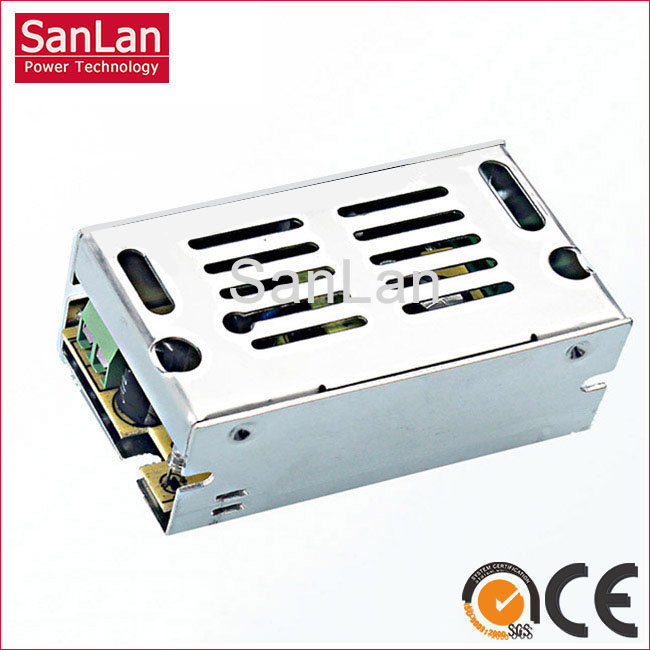

5V 2A 10W Switching Mode Power Supply (SL-10-5)

Name: 5V 2A 10W Switching Mode Power Supply (SL-10-5)
Brand: China-Manufacturer-Directory.com
SKU: 700931712
Availability: InStock
Rating: 4.7 (60 reviews)

Supplier:	Shenzhen Sanlan Power Technology Co., Ltd.
Price:	US $ 2.9-3.8/Piece
Min Order:	30/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SL-10-5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	5V 2A 10W Switching Mode Power Supply (SL-10-5)
Output Type:	Single
Warranty:	>2 Years
Output Power:	1 - 50W
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	SGS
Voltage Regulating Mode:	Constant
Brand:	Sanlan

Product Description

5V 2A 10W switching mode power supply (SL-10-5)

Feature

(1). Low Price, high quality and reliability.
(2). Fast and free sample.
(3).100% full load on test.
(4). Direct factory sales.

Our service

1.Your email will be reply within 24hours.
2.All questions will be answered by our engineer t.
3.We have strictly management on the production and quality control.
4.We are real factory and have professional engineers team, can provide custom and OEM service.
5.We are greatly to accept the sample order for testing our quality ,serive and your market.
6.Free sample.

Why Choose SanLan Power Supply?

1.Our capability

We are specialized in making a variety of power supply. Sanlan's strength lies in the supply of completes Service ranging from the design solution to the mass production and after service.

2.Quality
It's priority among priorities, all of our power supply must be tested strictly according to the standard and client's extra requirements.

3.Price

In brief, we are real factory instead of trade company, welcome to visit our company for disscuss everything.

Hope to be your partner in business, your friend in life.

Everything starts inquiry.

Model		SL-12-12
Max utput Wattage (W)		12W
	Voltage Note. 2	90-264VAC
	Frequency(Hz)	47-63 Hz
Input	Current(Full load)	0.25A max
	Current(Full load)	0.25A max
	Inrush Current	30A MAX
	Leakage Current	<3.5mA
	Voltage(VDC)	12V
	Voltage Accuracy	±1%
	Max. Current(Convection)	1.0A
Output	Line Regulation	±0.5%
	Load Regulation	±1%
	Minimum Load	0%
	Efficiency(typ)	87%
	Voltage ADJ.Range	10.8V-13.2V
	Ripple & Noise (max)	100mV
	Hold-up Tine	20 ms min
Protection	Over Load	130-180%rated output power
	Over Load	Protection type: Auto recovery
	Short circuit Protection	Protection type: Auto recovery
	Over Temperature	(100°C±5°C)detect on heat sink of power transistor
	Over Temperature	Protection type: Reboot recovery
withstand voltage	Input-Output(V.AC)	3000VAC
	Input-FG(V.AC)	1500VAC
	Output-FG(V.AC)	500VAC
Isolation resistance	Input-Output, Input-FG, Output-FG:100Mohms/500vdc
	Operating Temperature	-10°C^+50°C(Refer to output load derating curve)
	Storage Temperature	-25°C^+85°C
Environment	Temperature Coefficient	±0.04%/°C(0-50°C)
	Humidity	95%RH
	MTBF	>50,000h @25°C(MIL-HDBK-217F)
	Vibration	10-500Hz,2G 10min./1cycle,60min.each along X,Y,Z axes
feature	Dimension (LWH)	83.8mm39mm20mm
feature	Weight	60g
Note	1.All parameters NOT specially mentioned are measured at 230VAC input, rated and 25°C of ambient temperature;
	2.Derating may be needed under low input voltages, Please check the derating curve for more details;
	3.Ripple & Noise are measured at 20MHz of bandwidth by using a 300mm twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor.

Shenzhen sanlan power supply technology Co., Ltd is located in prosperous shenzhen longhua new district, is a collection research and development design, production, sales for the integration of enterprises, is the LED power supply, waterproof power supply, waterproof power supply, centralized power supply, power supply and other related products of high and new technology of mechanical industry technology enterprise.

Products are widely used in urban lighting, LED electronic screen, indoor decoration, advertising signs, digital tube, security monitoring, industrial automation and other industries. For all kinds of constant voltage, constant current and DC products provide power supply, low voltage electric current safe, green and healthy.

Products safe and reliable running, deeply user trust and respected, best-selling all over the country provinces and cities, are exported to Thailand, India, the United States, the Middle East.

"High quality, proper price, accurate delivery, best service" as the style of work, implement the spirit of "quality first, customer first" to the general partners to provide the best quality and service!
