Product Description

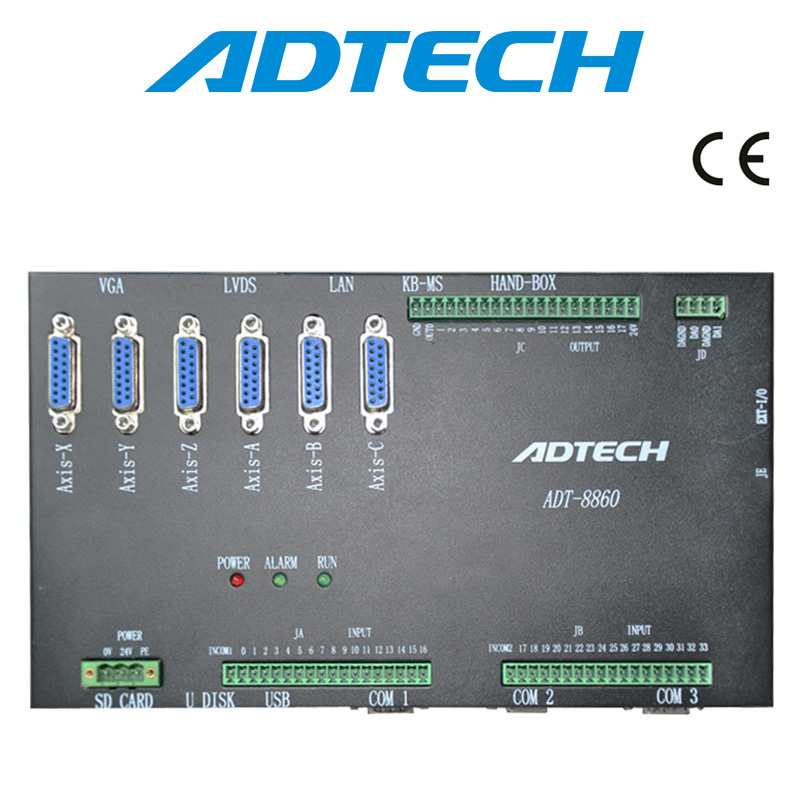

ADT-8860 Motion Controller Function:
Use SANGSUNG series S3C2440 CPU(ARM9), up to 533MHz main frequency;
Use large scale programmable device FPG, employ real time multitask control technology and hardware interpolation technology, ensuring high stability during working;
Use high segment drives, enabling high precision processing and smooth running;
Random 2-3 axes and 4-6 axes linear interpolation;
Support part of common G code processing instructions, and realize offline or real time processing and control through G code;
Use C programming language, support 32 user program to run at the same time, support PLC;
Read the logical position; Actual position and driving speed in real time during motion;
6-axis pulse/direction input, 34-channel optical coupling input, 6-channel alarm signal input, 6-axis coder AB+Z pulse input;
18-channel collector open circuit optical coupling isolation output, another 6-axis output can be used for servo universal control or servo alarm clear;
Use standard RJ45 Ethernet interface and Modbus communication protocol;
Own 64M SDRAM and 256M Nand FLASH ROM storage, which can meet the need of complex processing and running;
Support USB 1.1 interface, users can update the software to the latest application;
Reasonable structure, full optical coupling isolation control, superior anti-jamming capacity;
Model |
Description |
Quantity (piece) |
DBT15G |
Wiring head, 15 pins |
6 |
DB-E63A015 |
Shell of DBT15G |
6 |
L13 |
USB Line |
1 |
L11 |
Network cable, 5M |
1 |
L02 |
Flat cable, 40 ins |
1 |
CD |
SDK (software development kit) |
1 |
|
User manual |
1 |
