Product Specifications
| Prod Model: |
ASY-ZD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ink Pump: |
Circulating Running |
| Shaft: |
Air Shaft |
| Traction Part: |
Double Photocell Tracking |
| Color & Page: |
Multi-Colour Printing Press |
| Type: |
Ink Jet |
| Structure: |
Flat-Bed Cylinder Press |
| Plate: |
Gravure Printing |
Product Description

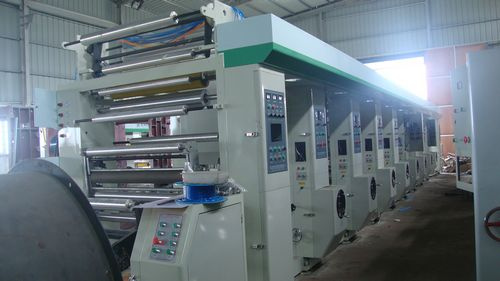

High Speed Gravure Printing Machine
1. Printing color: 1-12
2. Width: Customer build
3. Speed: 180m/min
High Speed Gravure Printing Machine
Usage:
PVDC 35-60um PET 12-60um
OPP 20-60um BOPP 20-60um
PE 30-100um NY 12-50um
CPP 20-60um Combination 15-60um
And similar size film material.
Feature:
1. Independent tower type double arm duplex position slewing and wall rack combination
2. Independent driving control system: Digital AC frequency control system
3. Auto alarm change materials, new material auto driving at the same speed with main machine
4. High speed non-stop change material, save time
5. AC control active unwinding, Zero tension control, have steady output in both low or high speed
6. High-sensitivity tension closed loop control system
7. Install printing cylinder without shaft
8. Independent heating system in every color unit
9. Intelligent continuous constant temperature control.
10. Wind insert closed oven
|
Main parameter |
|
Direction |
From unwind to rewind |
|
Printing colour |
8 |
|
Max printing width |
1000mm |
|
Max machinery speed |
180m/min |
|
Max printing speed |
150m/min |
|
Diameter of printing plate |
Φ 120mm-Φ 300mm |
|
Precision of register |
Lengthwise ± 0.10mm(Auto register)
Crosswise ± 0.10mm(Manual) |
|
Diameter of unwinding |
Φ 600mm |
|
Diameter of rewinding |
Φ 600mm |
|
Tension |
3-30Kg |
|
Precision of tension |
± 0.5Kg |
|
Air supply |
0.8mpa |
|
Press and print pressure |
500kg |
|
Scraper swing capacity |
± 5mm |
|
Max change material speed |
180m/min |
|
Heat way |
Electricity |
|
Main motor power |
15kw |
|
Main power |
220kw |
|
Dimensions |
15500x3200x3000mm |
|
Weight |
13000kg |
