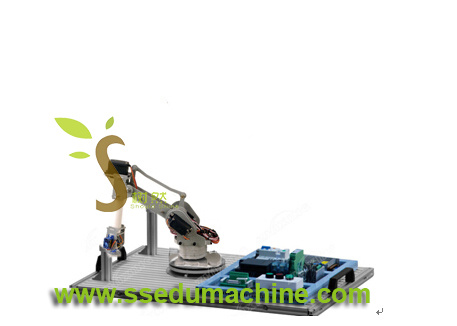

SS3103 6 Degree of Freedom Mechanical Arm Training Equipment
Specification
1) Working power supply: AC220V±5% 50Hz
2) Whole machine capacity :< 0.2KVA
3) Working environment: -10~40ºC , 5~85%rh
4) Boundary dimension: 550×550×550mm (LWH)
5) Control main body: PLC stepping motor driver.
6) Transmission main body: lead screw, optical axis.
7) Base stand: industry combination aluminum profile, silvery oxidation.
8) Trip: mesh plate, open-type
9) Degree of freedom number: six degree of freedom
10) Motor: two stepping motor, two DC motor.
11) Pneumatic system: tilt cylinder, one pneumatic claw, and one solenoid valve.
Composition and characteristic:
1. Manipulator training device consists of base stand, rotate base stand, pneumatic portion, three-dimensional (X, Y, Z) movement machinery and electrical control. The pneumatic portion consists of solenoid valve and cylinder. Three-dimensional movement machinery is a modularization structure which combines the ball screw transmission and gear transmission. It is used for realizing the location function.
2. Electrical control portion consists of controller, stepping motor driver, power supply and sensor, etc.
3. According to the signal acquisition of sensor, PLC programming, it can realize the complicated position control, sequential logic control and switch control and other function of stepping motor, DC motor, solenoid valve.
4. It can realize the experiment teaching of PLC main machine network and MCGS industrial control configuration bar graph dynamic tracking.
Training content
1. Sensor technology operating training.
2. Pneumatic technology application training
3. PLC programming training
4. Electrical control circuit training
5. Automatic control technology teaching and training
6. Machinery system installation and debugging training
7. System maintenance and fault detection training
