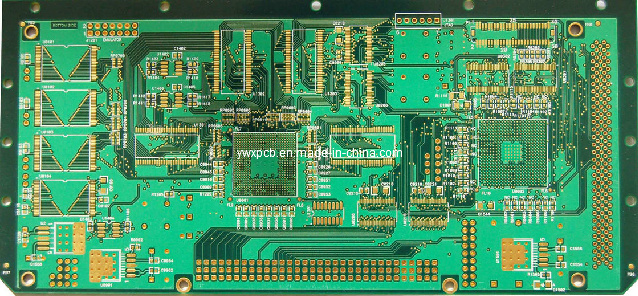

6 Layer Immersion Gold 2.0mm Printed Circuit Board

6 Layer Immersion Gold 2.0mm Printed Circuit Board
Supplier: Shenzhen City Yuweixing Electronics Co., Ltd.
Price: US $ 3.5/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: Y-1128
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Min Copper Width: 4mil
Min Copper Clearance: 6mil
Min Via: 0.4mm
Aspect Ratio: 5:1
Bow And Twist: 0.42%
Structure: Multilayer Rigid PCB
Production Process: Semi-Additive Process
Material: Epoxide Woven Glass Fabric Laminate

Product Description

1. We provide quick turn prototype service. 2. Quick turn small order qty service. 3. Rigid PCB, Metal core PCB, HDI PCBand PCBA and other special PCB. 4. FR4(Normal), FR4(High TG), FR4(Halogen Free), Metal core, ceramic etc. 5. Finished thickness: From 0.20mm to 6.0mm. 6. Finished copper: From 0.3OZ 6 OZ. 7. Surface finished with HASL LF, Entek(MSP/OSP), Immersion Gold(ENIG), Immersion Silver, Immersion Tin,Hard Gold, Flash Gold, Carbon, Peelable -mask etc, 8. Solder mask: Green, White, Red, Blue, Black, Matt green, Matt black, Yellow etc. 9. Legend Color with biack, white, yellow, grey ect. Related products
YWX Process capability
Item  Standard  Limit
Base Material  FR4,FR4TG170,FR4TG180,Halogen free FR4 Rogers,Arlon,Taconicc,Bergquist
No of layer 1-12layer 40layer
Array size 30X30mm-400x400mm 6X6mm and 860x610MM
Board thickness 1.6mm Min:0.2mm;Max:7mm
Copper weight 18/35um 420um
Copper Etching 4/4mil or up 3/3mil
Finished hole size 0.25mm or up 0.1mm
Hole-Copper spacing 8mil 6mil
Hole barrel copper 20um 25um
Aspect ratio 9:1 or less 16:1
Immersion Gold 2U'' 5U''
Gold fingers 30U'' 50U''
Impedance control +/-10% +/-5%
Via in Pad Resin filling via Copper filling via
Copper to edge 8mil 6mil
Mask clearance 3mil 2mil
Bow and twist 0.75% 0.5%
Leadtime 4Working days 24hours
Quality control IPC Class 2 IPC Class 3

Yuweixing PCB as a professional PCB manufactory more than 10 years.We mainly produce Rigid PCB, Metal core PCB, HDI PCB and PCBA etc.More than 50% PCB are exported to foreign market, and these PCB are produced for demand of industries, Consumer electronics and aerospace etc.We also can manufacture PCB in any volume, prototype, small volume, middle volume, mass volume and quick turn according to multifarious demands from different customer.

Quality First, we are strict with every process control and testing, and manufacture high quality PCB with speed for every customer.
