Product Specifications
| Prod Model: |
Rigid-Flex PCB,rigid-flexible board,FPC,FPCB,HDI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Polyester Film |
| Structure: |
Single-Sided FPC |
| Application: |
Aviation and Aerospace |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Anisotropic Conductive Adhesive |
Product Description
http://www.Fz-pcb.Com/?Page_id=9
+86-755-23823087
Product Description

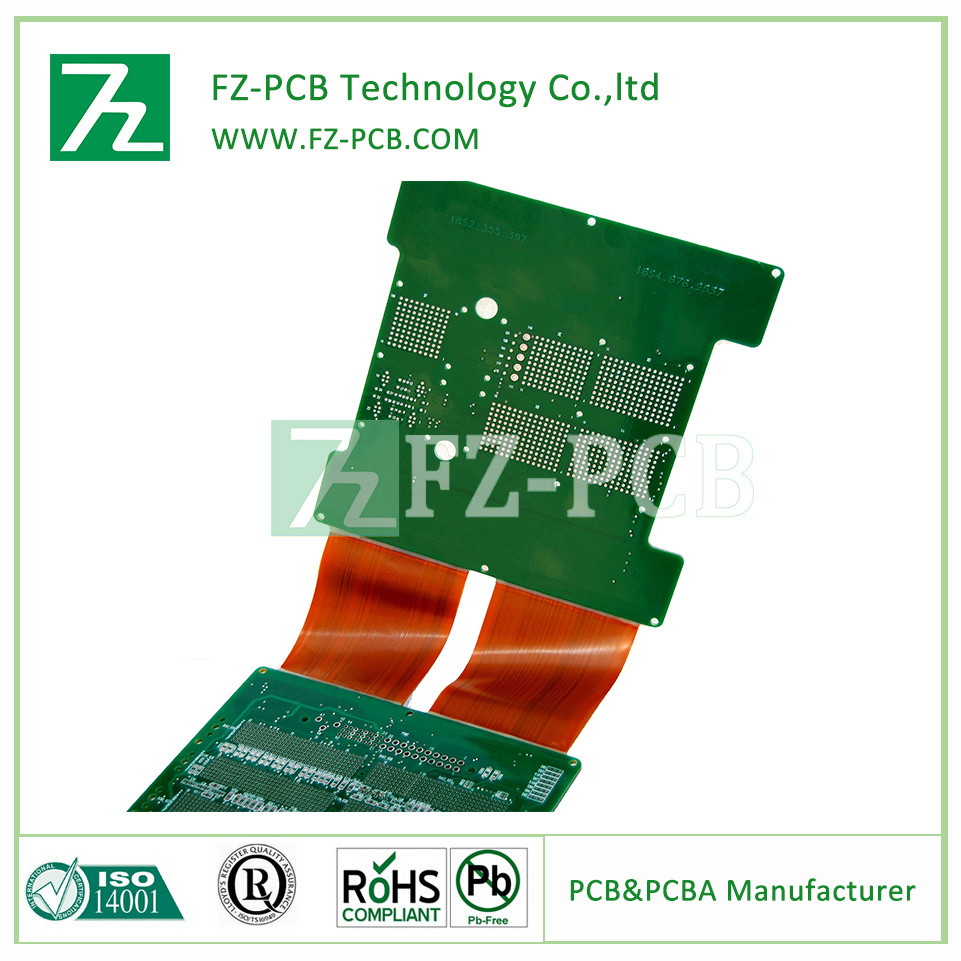

6-layer High-quality Mechanical Rigid-flex PCB with Immersion Gold
Model: R9680
Dimensions: 162 X 132mm
Line width/space: 0.3/0.3mm
Base material: 0.5oz Cu/0.55mm FR-4, 0.5oz Cu/0.8mil ADH/1mil PI
Cover layer: Green oil/0.5mil PI/0.6mil ADH
Surface treatment: ENIG (Au: 0.03 to 0.1um, Ni: 3 to 5um)
Outline tolerance: ± 0.3mm
Cover layer tolerance: ± 0.3mm
Advantage:
1. Over 10 years' manufacturing experience
2. Assembly provided
3.100% quality tested before shipment
4. Certificate of UL, ISO9001, ISO14001 and ISO/TS16949.
5. Our Products meet the RoHS & WEEE lead-free requirement.
6. Small Order accepted
7.3 weeks for massive production; 10 days for sample since material prepared
Urgent case or spread delivery schedule will be updated per negociation then
If you are interest in our products, welcome to inquiry to ask price, We'll give ou detailed introduction, Wish our products to birng you good value.
Thanks for looking and make it a great day!
+8615013508266
FZ-PCB is one of Asia' S leading full-service PCB to PCBA solution providers. Established in the year 2002, mainly provide the high-level quality PCB board and PCB assembly service to our customer which are the leading companies in the telecommunication, LED, medical treatment, aviation, instrumentation, micro-electronics and automated-control area. Our achievements are recognized through our customers' Success, industry and customer recognition, and continuous quality improvement.
