Product Specifications
| Prod Model: |
KZ-VC6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
SGS |
Product Description

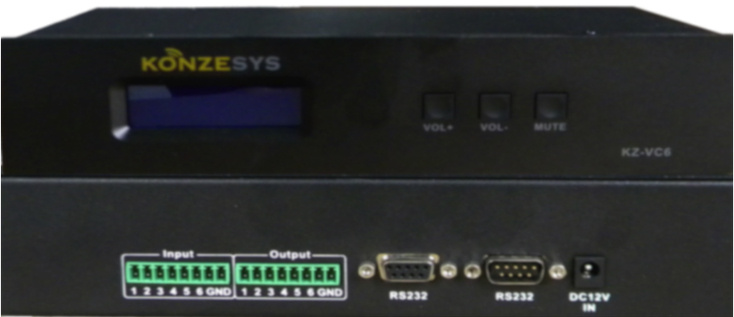

KZ-VC6 is equipped manual operation function, which provides sound system separation adjustment. The volume control interface is concatenated in the sound system and has the function of audio signal power cuts through the sound system after installation, namely can adjust the sound system without waiting for other systems or after completion of the whole control system adjustment.
Specifications
1. 6 audio inputs and audio outputs.
2. Signal input/out of model: non-balanced.
3. With 64 channel combination modes to choose and adjust the volume.
4. Input impedance: 10K Ω
5. Output impedance: 600 Ω
6. Maximum input voltage: 20Vp-p (including) above.
7. Maximum output signal voltage: 20Vp-p (including) above.
8. Gain adjustment range: -95.5 dB ~ + 31.5 dB.
9. Crosstalk: below - 110dBFS
10. Minimum gain adjustment: below 0.5 dB (including)
11. Frequency response: 10 Hz ~ 20 KHZ.
12. Signal connection terminals: input 8 pin Mini Phoenix terminal; Input 8 pin Mini Phoenix terminals.
13. Communication formats: 2 D-Sub concatenated RS - 232 ports 9600-N-8-1 communication format.
14. Panel with LCD backlight shows each volume instructions.
15. There are 3 volume and mute control buttons on the panel.
16. Channel reset code at the initial gain.
17. Maximum power consumption: 3W
18. Working environment temperature: 5 ºC ~ 45 ºC
19. Work environment humidity: 10% ~ 90%
20. Dimensions: 248mm x 55mm x 120mm (WxHxD)
21. Net weight: 1.2 Kg
22. Power supply: DC 12V
