Product Specifications
| Prod Model: |
LW600k |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Load: |
6 Ton |
| Bucket: |
3.5m3 |
| Operating Weight: |
21ton |
| Engine: |
Wp10ng260e30 |
| Type: |
Large Loader |
| Walking Mode: |
Wheeled |
| Load And Unload Method: |
Front Discharge |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description

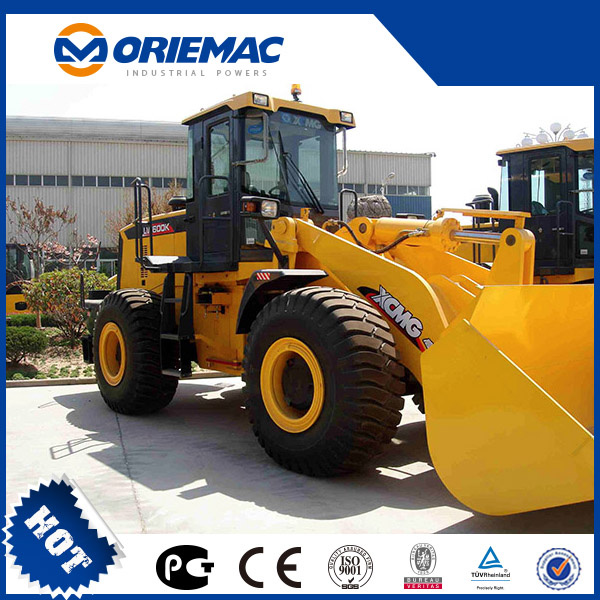

XCMG Wheel loader/front end loader 6ton LW600K Shangchai engine
1. Rated load: 6000kg
2. Standard bucket: 3.5 cbm
3. Engine: 175kw SC11CB240.1G2B1
4. Operation weight: 20000kg
5. XCMG gear box/transmission
6. Meritor wet type driving alxe
7. Pilot Control
8. A/C Cabin FOPS
9. Dumping height: 3200mm
10. Dumping reach: 1268mm
LW600K tractor loader is the main model of K series after G series. Power drive flexible suspension damping; Dual-pump combined technology, flow expanding steering, guide control; The frame of the high strength adapts to the heavy load condition; XCMG unique working mechanism lightens the unloading impact greatly; Hydraulic wet brake ensures the safe and reliable operation and travelling; The adjustable instrument panel contributes to the best operation position; Intelligent electronic monitoring system could monitor the operation condition of the machine accurately.
Experienced part
The imported Cummins QSC8.3 electrical injection, turbo-charing, air-air inter-cooling engine, electric start and flameout. The emission meets the requirement of TIRE-3 stage, featuring high performance, low oil consumption, environmental care, and strong power.
ZF electrical and hydraulic control transmission provides smooth gear shift, featuring advanced performance and strong reliability; KD gear function reduces the operation gear shift frequency and improves the operation efficiency.
ZF wet slip-limited drive axle. The brake is installed in the drive axle, which cound prevent the entry of the water and dust. The machine could run in soft area or water. The center slewing of the rear axle could reduce the impact of the additional torque and external loader to the drive system.
Excellent performance
Dual-pump combined technology, hydraulic flow expanding steering, single-handle guide control, flexible and convenient.
The steering limit is dual limits of hydraulic control and mechanical control. The hydraulic control limit is prior to the mechanical limit, reducing the impact.
With the electromagnet positioning technology, the machine has the automatical leveling function of the bucket, decreasing the working labor of the operator and improving the work efficiency. The boom lifting limit function could prevent the mechanical impact, reducing the fatigue of the operator.
Long wheelbase, centered distribution of the articulated center, good reliability. The design of the front and rear frame center articulated bearing has passed the trail. The tough frame bone could bear the repeated torsion in uneven ground.
Dual-pump combined technology, flow expanding steering, guide control; The frame of the high strength adapts to the heavy load condition; XCMG unique working mechanism lightens the unloading impact greatly; Hydraulic wet brake ensures the safe and reliable operation and travelling; The adjustable instrument panel contributes to the best operation position; Intelligent electronic monitoring system could monitor the operation condition of the machine accurately.
Safe and reliable brake
Hydraulic wet brake. Combine the emergency brake and parking brake to ensure the safe operation.
Reliable structure strength
Focus on the integrated structure strength. Use finite-element analysis to reduce the stress concentration position to ensure the adaption to various kinds of dangerous conditions.
Comfortable operation environment
| D escription | LW600K-LNG | U nit |
| B ucket capacity | 3.5 | m³ |
| Rated load | 6000 | kg |
| O perating wieight | 21000 | kg |
| Dumping clearance | 3200 | mm |
| D umping reach | 1268 | mm |
| W heel base | 3400 | mm |
| W heel base | 2265 | mm |
| The minimum ground clearance | 467 | mm |
| T he body corner | 38 | ° |
| L ength | 8695 | mm |
| H eight | 3543 | mm |
| B ucket width | 3020 | mm |
| Maximum tractive force | 180 | kN |
| Total cycling Time | 10.9 | s |
| Engine | model | WP10NG260E30 |
|
| P rocedure |
|
|
| Rated power | 191 | kW |
| Rated speed | 2200 | r/min |
| max | 200 | kN |
| W heel size | 23.5-25 |
|
| H igh speed | 36 | km/h |
| Cylinder effective filling volume | 405 | L |
