600kg Frozen Meat Dicer/Cutting Machine Drd450 with CE Certification
Price: |
US $ 40000-44000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Product Specifications
Prod Model: |
DRD450 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power(Kw): |
11 |
Capacity(Kg/H): |
1500 |
Dicing Size (mm): |
3~10 |
External Dimension (mm): |
1665*1030*1380 |
Weight (Kg): |
600 |
Certification: |
CE |
Type: |
Meat Slicers |
Voltage: |
380V |
Customized: |
Customized |
Product Description
Frozen Meat Dicer DRD450
Material:
§ SUS304 Stainless steel
Accuracy & quality:
§ Very uniform cutting result with a minimum of product waste
Reliability:
§ Robust drive.
§ This high-capacity machine continuously delivers a perfect cutting quality.
Hygiene:
§ Drive zone and product zone of the machine are completely separated.
§ Central lubricating nipples beneath the door giving access to the drive.
Safety:
§ Completely designed according to European CE safety directives: Machinery directive 2006/42/EC, Low voltage directive 2006/95/EC, EMC directive (electro magnetic compatibility) 2004/108/EC
§ Standard in-feed and discharge chute extensions
Structure:
Cutting Principle:
The infinitely adjustable slicing knife first cuts the product in slices.
Next, the circular knives cut the slices into strips. Finally, the crosscut knife spindle cuts neat dices to the desired height.

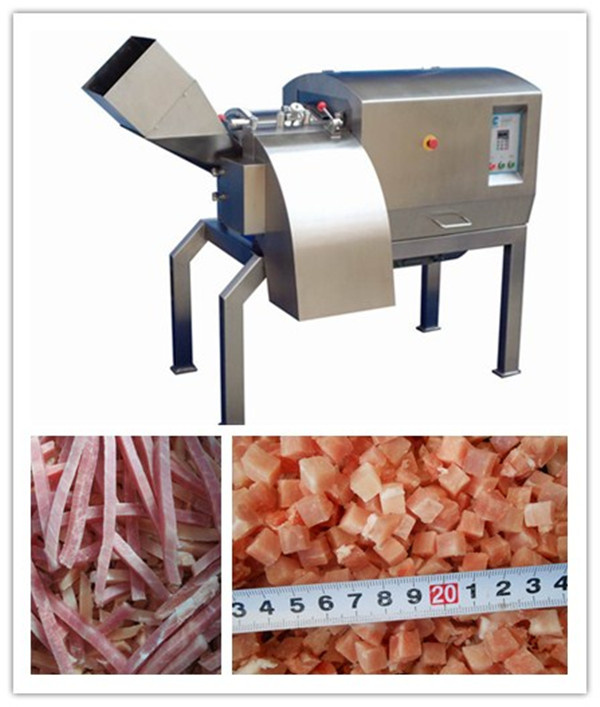

Meat Cubes Cutting Effect:
Meat Slices Cutting Effect:
Suitable Temperature for different Meat when cutting cubes and slices:
Chicken Cubes and chicken slices:
Cubes:-3ºC~-8ºC
Slices: 0ºC~-3ºC
Pork Cubes and pork slices:
Cubes: -3ºC~-6ºC
Slices: -3ºC~-6ºC
Beef/Mutton Cubes and Slices:
Cubes: -4ºC~-6ºC
Slices: -3ºC~-7ºC

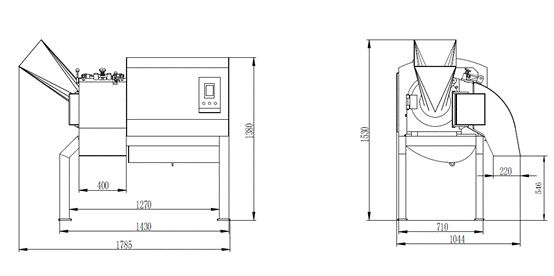

Specifications:
Type | Power (Kw) | Capacity (kg/h) | Dicing Size (mm) | External Dimension (mm) | Weight (kg) |
DRD450 | 11 | 1500 | 3~10 | 1665×1030×1380 | 600 |
Hebei Chengye Manufacture Co., Ltd was funded in 2007, which is a wholly-owned subsidiary of Hebei Chengye Group located in Shijiazhuang National Economic and Technical Development Zone, Hebei, China. As a leading manufacturer, we specialize in researching and producing various food processing machines and non-standard equipment.
Our machines are widely used in meat processing industry, wheaten food and quick-frozen food processing industry, including three- dimensional frozen meat dicer, high-speed bowl cutter, smokehouse, vacuum refrigeration tumbler, vacuum flour mixer, noodle production line, shaomai-making machine, etc. We apply several national patents for our machines; The main prodcucts have passed CE certifications, exported to Europe, Australia, Middle East, Southeast Asia and South America. Our brand "Chengye" win good reputation from customers.
We devote ourselves to science technology development. Relying on strong design and construction capabilities of Chengye Group, we can offer a series of services and technical support, such as reconstructing or expanding food factories, planning and designing land, building workshops, installing and commissioning food equipment and pipes, etc.
Practical and innovative, Chengye people adhere to the management philosophy: " Sincerity and Quality First", making mutual development and bright future with all food enterprises.
