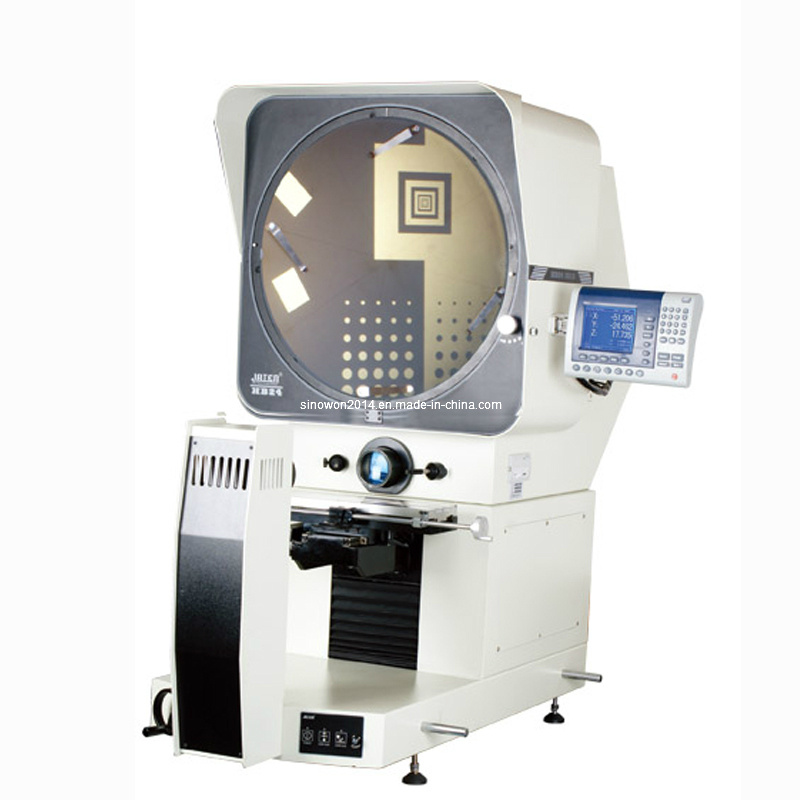

600mm Diameter Screen Horizontal Profile Projector Optical Comparator
Product Specifications
| Prod Model: |
HB24-3020 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter Screen: |
600mm |
| Metal Stage Size: |
455 X 126 Mm |
| Stage Travel: X And Z-Axis: |
300 X 200 Mm |
| Stage Travel: Y-Axis: |
125mm (for Focusing) |
| X And Z Linear Resolution: |
0.0005 Mm |
| Power Supply: |
AC110V/60Hz; 220V/50Hz; 650W |
| Dimension (Dxw Xh): |
1620 X 750 X 1400mm |
| Packing Dimension(Lxwxh): |
1790 X 890 X 1520mm |
| Instrument Gross/Net Weight: |
300/250kg |
Product Description
Characteristic:
600mm diameter screen with digital protractor; 300x150mm precision movement work-stage, 300x200mm optional;Work-stage sway range between ±15°;Halogen profile and fiber surface illumination adjustable; Geometric multifunction data processing system DRO DP 300;Built-in Mini-printer;Available 10x,20x objective rotary table ,working cupboard and foot-switch,etc
Specification:
| Reverse Image | HB24-3015(#512-601) | HB24-3020(#512-611) |
| Obverse Image | HB24-3015Z(#512-621) | HB24-3020Z(#512-631) |
| Metal Stage Size | 455 x 126 mm | 455 x 126 mm |
| Stage Travel: X and Z-axis | 300 x 150 mm | 300 x 200 mm |
| Stage Travel: Y-axis | 125mm (For Focusing) | 125mm (For Focusing) |
| X and Z linear Resolution | 0.0005 mm | 0.0005 mm |
| Sway Range | ±15° | ±15° |
| Accuracy | ≤3+L/200(um) | ≤3+L/200(um) |
| Screen | Diameter : Ø625mm,effective rang≥Ø600mm(With"*"reticle) |
| Rotary Range of Screen : 0~360. |
| Resolution of Rotary Encoder | 1'/0.01° |
| Illumination (Adjustable) | Contour illumination: 24V/150W (Halogen Lamp) |
| Surface illumination: 21V/150W(Optical Fiber) |
| Digital Readout | DP300 (#561-301) |
| Power Supply | AC110V/60Hz; 220V/50Hz; 650W |
| Dimension (DxW xH) | 1620 x 750 x 1400mm |
| Packing Dimension(LxWxH) | 1790 x 890 x 1520mm |
| Instrument Gross/Net Weight | 300/250Kg |
