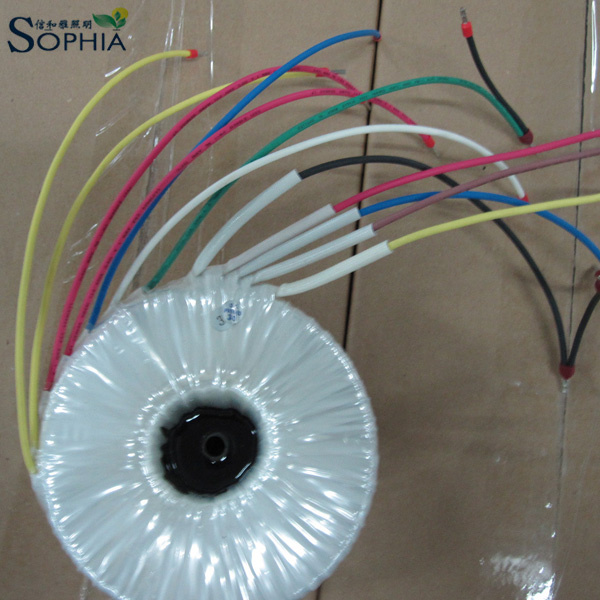

600VA toroidal transfofmer, electric transformer, electrical transformer, power transformer, current transformer;
1 Type: Toroid transformer max 156*78mm(OD*H);
2 Input: 0-230-380-400-420Vac;
3 Standard: CE, all RoHS components, EN61558-1;
4 Insulation class: Class B 130;
5 No load primary current: 55mA max(Input 230V, 50Hz);
7 No load Sec1: 0-125Vac;
No load Sec 2: 0-20.6Vac;
No load Sec 3: 0-59.6Vac;
No load Sec 4: 131.5Vac;
8 Loaded Sec 1: 0-120.3Vac+/-5%, 0.85A;
Loaded Sec 2: 0-19.5Vac+/-5%, 5.1A;
Loaded Sec 3: 0-56.6Vac+/-5%, 7.14A;
Loaded Sec 4: 0-126Vac+/-5%, 3.22A;
9 Core loss: 4W;
10 Temperature rise: At ambient temperature 25C, Pri & Sec Winding 85C max after loading for four hours.
11Insulation resistance: Pri - Sec 500VDC-100MΩ Min;
12 Hi-pot: Pri&Sec AC4.2KV 60S, leakage current 2mA maximum;
13 Protection: 130C Thermal protection, overcurrent protection.
14 Insulation tape: 130C polyester UL;
15 Enabled copper wire: 180C UL;
16: Fiber set tube for Pri & Sec leads: 150C UL;
17 Pri & Sec leads: AWG16#, 250mm, 150C, 600V, UL, lead ends with faston;
18 Accessory: Metal disk, rubber, screw, nut, lock washer;
19 Sticker: As requested.
