Xuchang Chengrui Insulation Material Co., Ltd. >> 6051 Polyimide Film for Insulation

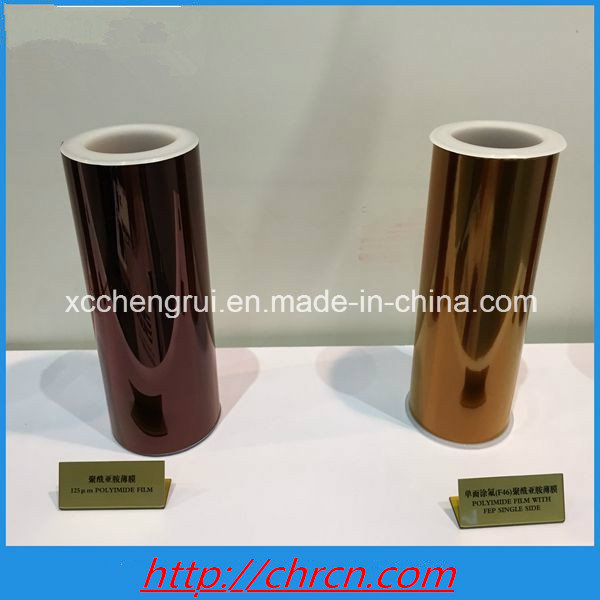

6051 Polyimide Film for Insulation

Name: 6051 Polyimide Film for Insulation
Brand: China-Manufacturer-Directory.com
SKU: 702965362
Availability: InStock
Rating: 4.6 (72 reviews)

Supplier:	Xuchang Chengrui Insulation Material Co., Ltd.
Price:	US $ 28kg
Min Order:	50kg
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	6051
Markets:	North America,South America,Eastern Europe,Africa,Oceania,Mid East
Temperature:	H Grade
Rated Voltage:	4kv-15kv
Tensile Strength:	135MPa
Style:	Rolls, Tapes or Stripes
Brand Name:	Chr
Application:	Motor
Type:	Solid
Chemistry:	Organic Insulation
Thermal Rating:	H 180
Maximum Voltage:	<10KV
Material:	Polyimide
Color:	Yellow, Golden
Brand:	Chr

Product Description

Higher heat resistance 6051 insulation polyimide film
6051 polyimide film is synthesized by polymerizing PMDA and ODA in strong polar solvents through the process of forming film and imines treatment at high temperature.
Features and Applications:
class H insulation
Excellent physical, chemical and electrical properties
Atomic radiation resistant, solvent resistant
low & high temperature resistant (as low as -452F(-269°C) and as high as +500F(+260°C).

Our Services
Technology Data of 6051 polyimide film

NO	Index Description	unit	index value
1	Density	g/cm3	1.38~1.43
2	Contraction rate,longitudinal and horizontal 150°c-400°c	%	<1.0 <3.0
3	Surface resistively,200°c	Ω	>1.0*1013
4	volume resistively,200°c	Ω.m	>1.0*1010
5	Relative Dielectric factor constant 48-62HZ	-	3.5±0.4
6	Media Loss Factor 48-60HZ	-	<4.0*10-3
7	Long-term Thermal Resistant	-	<4.0*10-3
8	Temprature Index	-	>180

Polyimide film Application:
Used in flexible prinyed circuits and as insulating materials of flat electric cables, electromagnetic wires and motors.
Available: In rolls

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
