Product Specifications
| Prod Model: |
Remax-6060 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Wood, Plastic, Acrylic, Stone, Metal |
| Work Area: |
600*600*100mm |
| Spindle: |
1.5kw (2.2/3kw for Option) |
| Table Surface: |
T-Slot Table |
| Table Moving: |
Yes |
| Linear Guide And Ball Screw: |
Hiwin From Taiwan and Tbi |
| Driver: |
Yako or Leadshine |
| Inverter: |
Delta or Fuling |
| Motor: |
Stepper Motor |
| Working Speed: |
24000mm/Min |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
SGS |
Product Description
Application:

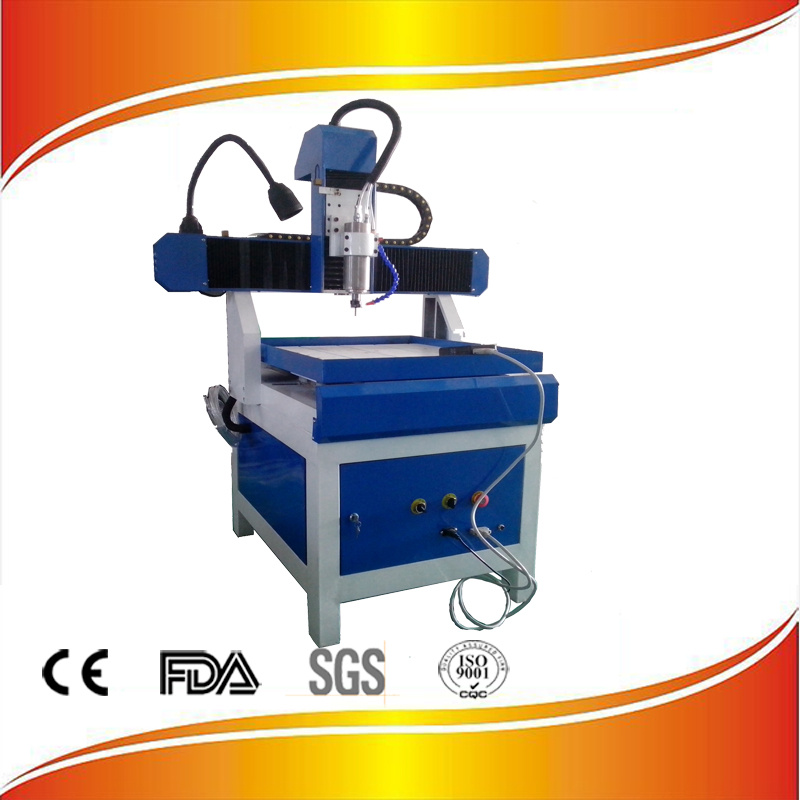

Hobby cnc wood router is usde for engraving and cutting acrylic, wood, sign,Aluminum etc.
Main configuration:
1.Work area: 600*600*100mm, stepper motor
2.Cast iron worktable, table moving
3.1.5kw water cooling spindle
4.DSP control system, USB port
5.HIWIN square orbit, ball screw transmission
6.tool sensor, ORMON limit, oiling system
Technology parameters:
NO. | Description | Parameter |
| 1 | X,Y,Z Working Area | 600x600x100mm |
2 |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 4 | Table Surface | T-slot Table |
| 5 | Frame | cast by aluminum |
| 6 | X, Y,Z Structure | Hiwin Rail Linear Guide and Ball Screw |
| 7 | Z Structure | Hiwin Rail Linear Guide and Ball Screw |
| 8 | Max. Power Consumption | (Without Spindle) 1.0Kw |
| 9 | Max. Rapid Travel Rate | 16000mm/min |
| 10 | Max. Working Speed | 10000mm/min |
| 11 | Spindle Power | 1.5KW water cooling spindle |
| 12 | Spindle Speed | 0-24000RPM |
| 13 | Drive Motors | Stepper Motor |
| 14 | Working Voltage | AC220/380V/50/60Hz,3PH |
| 15 | Command Language | G Code |
| 16 | Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) |
| 17 | Computer Interface | USB |
| 18 | Flash Memory | 128M(U Disk) |
| | | |
| 19 | X,Y Resolution | <0.01mm |
| 20 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| 21 | Running Environment Temperature | 0 - 45 Centigrade |
| 22 | Relative Humidity | 30% - 75% |
| 23 | Inverter | Delta/Fuling |
| 24 | Electrical components | Schneider |
| 25 | Limit switch | OMRON |
| 26 | Driver | Leadshine or Yako |
our survice:
A Guarantee of Hot sale mini cnc router :
1.12 months for the whole machine.
2.Within 12 months under normal use and maintenance,
3.if something is wrong with machine, you will get spare part for free.;
4.Out of 12 months, you will get spare part at cost price.
5.You will also get technical support and service all the lifetime.
B After sales services:
1.Normal machine is properly adjusted before dispatch.
2.You will be able to use the machines immediately.
3.You will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consulting, technical support and service by email/fax/te
l and lifetime technical support.
FAQ:
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
6. Send your order by air or by sea.
E 10 good reasons why you should buy from us?
1 we are a real factory offering products
2 free technical advice by QUALIFIED MECHANICAL ENGINEERS
3 company in business for many years
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO, BV certificate.
7 machine and spindle warranty 1 year.
8 our engineer can go to your country to provide technical guidance
9 we have phone support in English, if you have any questions, you can call it, we can give you a best solution within 24 hours
10 fast delivery, save your time.
Jinan ReMax Machinery Technology Co., Ltd is a professional CNC router, laser engraving machine and plasma cutting machine manufacturer, after ten years of efforts, our company already independent R&D and manufacture of molds engraving and milling machine, large CNC woodworking engraving machine, woodworking engraving and milling machine, CNC advertising engraving machine, CNC stone engraving machine, CNC linear and disk auto tool changer machines, CNC plasma cutter machines, laser cutting and engraving machine, laser cutting machine, metal laser cutting machine(YAG and Fiber), laser seal engraving machine, styrofoam machining centers etc machines, since the establishment of our company, with professional technology and advanced management concepts, the rapid rise in the field of Numerical Control, has developed into research and development, production and sales of high-tech enterprises, the products have been widely used in the advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD / CAM industry mold industry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; And because of its distinct cost-effective domestic and in various application fields has been completely replace imported similar products, and become the leading companies in the industry.
