Product Specifications
| Prod Model: |
QRY60 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Power Source: |
Hydraulic |
| Sling Type: |
Wire Rope |
| Certification: |
GOST |
| Application: |
Mineral Area Usage |
| Type: |
Mobile Crane |
Product Description

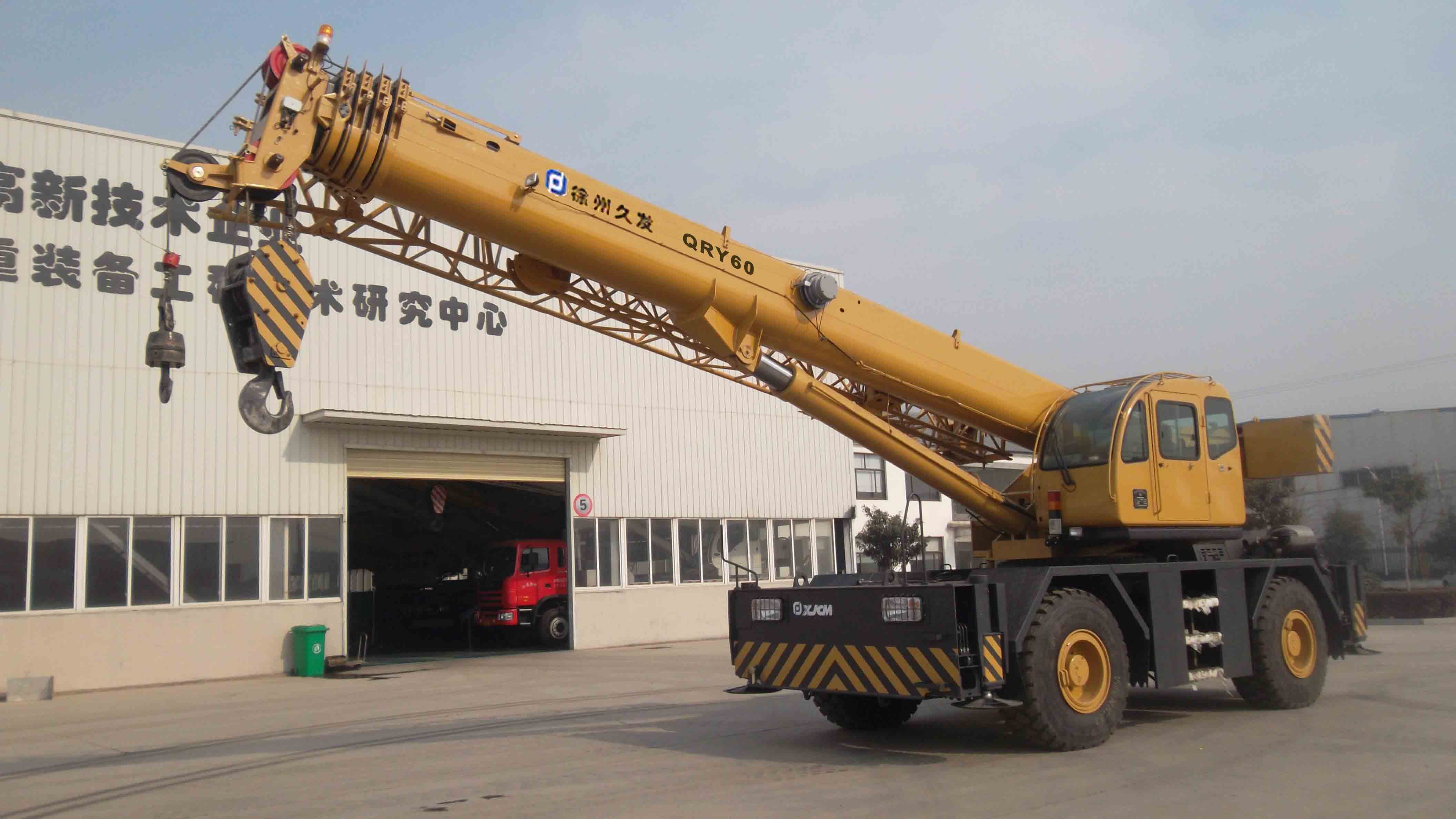

Rough terrain crane is usually called as mobile crane. This is a kind of telescopic boom and swing type crane whcih travels with tyre type chassis. It is composed of the superstructure and undercarriage. The superstructure is the lifting part, composed of the telescopic boom, jib, main winch, aux. Winch, luffing mechanism, counterweight, swivel table, etc. The undercarrage is composed of the suspension and walking part. The superstructure and the undercarriage are connected by the slewing bearing.
1. Front-wheel steering, rear-wheel steering, four-wheel steering and cab steering, all-wheel drive, off-road performance, suitable for off-highway travel. 2. All operations can be extended outriggers, semi-stretch outriggers work, all reduced outriggers work, outriggers work and do not flight traffic load. 3. Suitable for narrow space travel and operations; Small turning radius; Strong maneuverability. 4. Safe and reliable control system, two-seats, all-directional lifting operation, greatly enhanced the ability of the front lifting operation. 5. The crane has good traffic-ability, dynamic performance and mobility, and is able to operate in every direction and travel while hoisting without outriggers. The product is widely used in heavy lifting operations, short-distance transfer, narrow-site lifting operations for construction sites, outdoor oilfields, warehouses, freight yards, logistics basses and other sites.
Safety device Safety device includes torque limiter, swing table lock device, winch over-winding and over-relaxationprotect device, outrigger lock device, outrigger bidirectional hydraulic lock, Rear axle steering lock and rear wheel return detector, emergency steering power device, gradienter, hydraulic system overflow valve, balance valve. 1. Torque limiter Detecting funtion: Detect the angle of the boomautomatically. Display function: Show operating information such as actual load, handling radius, boom angle. Caution function: When the actual load exceeds rated lifting load, Torque limiter will give an alarm and stop the operation. 2. Swing table lock device During the driving process, a plug device is used to connect the swing table and the carrier to keep the steering parts(swing table, boom)from swing caused by inertia. 3. Winch over-winding protect device When the load reaches a certain height, torque limiter will stop the falling and indicating light on the instrumentation board will be on. 4. Winch over-relaxation protect device When only 3 laps of rope is left on the winch, torque limiter will stop the falling and indicating light on the instrumentation board will be on. 5. Outrigger lock device During the driving process, a plug device is used. By plugging the outrigger, the device deeps it from extending. 6. Outrigger bidirectional hydraulic lock Outrigger bidirectional hydraulic lock is used to keep both horizontal and vertical cylinder form retractation. 7. Rear axle steering lock and rear wheel return detector During the driving process, only front axle steering is needed and the rear should be returned aligned. For this reason a lock device is used and indicating light on the instrumentation board shows the status. 8. Emergency steering power device (emergency pump) If there si an emergency that the engine can not be started, the crane can be dragged by other vehicles. The emergency pump is driven by battery and supplies power to power cylinder.
Xuzhou Jiufa Construction Machinery Co, Ltd. (XJCM) was founded in 2002. The register capital is 46 Million RMB. As the first manufacturer and leader of rough terrain crane, we are manufacturing and developing the rough terrain crane, truck crane, multifunction pipe layer and the relative accessories. And we also can supply to our customer the truck-mounted crane, all terrain crane, crawler crane, harbor wheel crane, pipeline construction equipment, aerial working platform, earthmoving machinery, road building &maintenance machinery, asphalt mixing plant, concrete mixing plant, heavy-duty truck &special purpose vehicle, logistic &harbor equipment, farm machinery and block &roof tile production line. Our factory takes up area of more than 120 acres, advanced processing and assembly equipment ( we have two factories, southern district's cover an area of 90 acres, northern district's cover and area of 30 acres) Our factory total area of 40, 000 square meters, at present, we have 800 staffs, including more than 50 technical personnel, 25 engineers, and 5 general mangers. The company is situated in TongShan district in Xuzhou ( DaPeng high-tech Industry Development Zone), By the national highway No. 310 and nearly high-speed beltway entrance. Therefore the transport is very convenient.
To meet the private enterprises in the industrial structure adjustment of large-scale rapid development, this company intends to actively absorb technology in human resources, research and development, management, procurement, production, sales, and service all sorts of people to join our team, to enable enterprises to further direction of modern enterprise system.
Now we have the ISO9001: 2008 certificate, CE certificate, GOST certicate.
