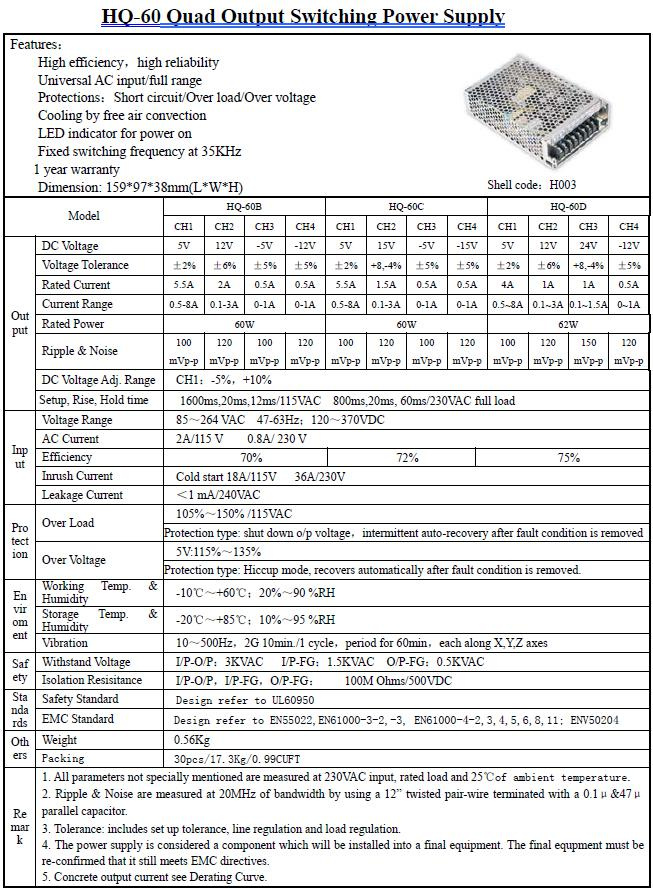

Features:
· High efficiency, high reliability
· Universal AC input / Full range
· Protections: Short circuit / Over load / Over voltage
· LED indicator for power on
· Fixed switching frequency at 35KHz
· Cooling by free air convection
· 2 years warranty

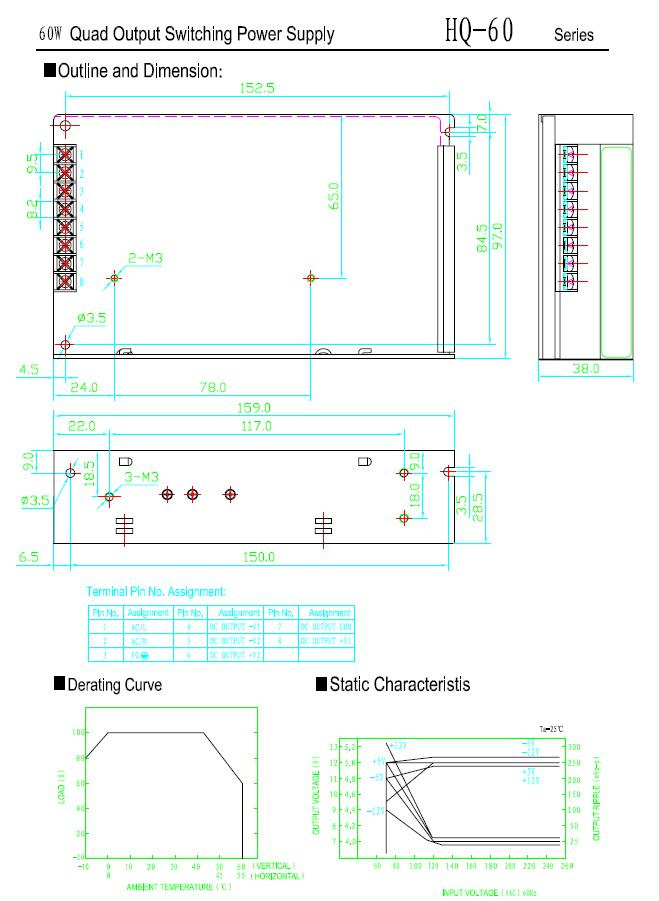

· Dimension: 159*97*38mm (L*W*H)
Specification:
1) INPUT
· Voltage Range: 85-264VAC, 47-63Hz; 120-370VDC
· AC Current: 2A/115VAC 0.8A/230VAC
· Inrush Current: Cold start 18A/115V 36A/230V
· Leakage Current: <1mA/240VAC
2) PROTECTION
· Over Load: 105%-150%; Shut down o/p voltage, recovers automatically after fault condition is removed.
· Over Voltage: 5V: 115%-135%; Hiccup mode, recovers automatically after fault condition is removed.
3) ENVIRONMENT
· Working Temp. & Humidity: -10º C~+60º C; 20%~90% RH.
· Storage Temp. & Humidity: -20º C~+85º C; 10%~95% RH.
· Vibration: 10~500Hz, 2G 10min. /1 cycle, period for 60min, each along X, Y, Z axes.
4) SAFETY STANDARDS
· Withstand Voltage; I/P-O/P: 3KVAC; I/P-FG: 1.5KVAC; O/P-FG: 0.5KVAC
· Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100MΩ /500VDC
· Safety Standards: Design refer to UL60950
· EMC Standards: Design refer to EN55022, EN61000-3-2, -3, EN61000-4-2, 3, 4, 5, 6, 8, 11
5) Type No Output Tol. R&N Eff.
HQ-60B 5V, 0.5-8A ± 2% 100mV 70%
HQ-60B 12V, 0.1-3A ± 6% 120mV 70%
HQ-60B -5V, 0-1A ± 5% 100mV 70%
HQ-60B -12V, 0-1A ± 5% 120mV 70%
HQ-60C 5V, 0.5-8A ± 2% 100mV 72%
HQ-60C 15V, 0.1-3A -4, +8% 120mV 72%
HQ-60C -5V, 0-1A ± 5% 100mV 72%
HQ-60C -15V, 0-1A ± 5% 120mV 72%
HQ-60D 5V, 0.5-8A ± 2% 100mV 75%
HQ-60D 12V, 0.1-3A ± 6% 120mV 75%
HQ-60D 24V, 0.1-1.5A -4, +8% 100mV 75%Q-60D -12V, 0-1A ± 5% 120mV 75%
