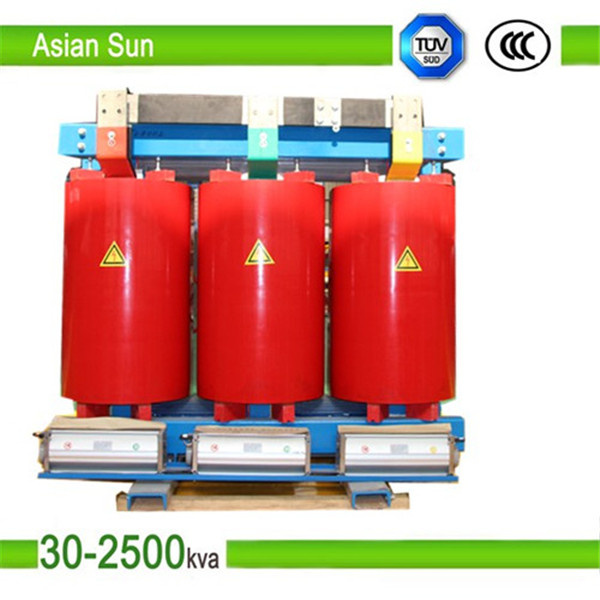

630kVA Toroidal Isolation Power Transformer Dry Type Transformer (12KV)

630kVA Toroidal Isolation Power Transformer Dry Type Transformer (12KV)
Supplier: Luoyang Asian Sun Industrial Group Co., Ltd.
Price: US $ 4488/Piece
Min Order: 1/Set
Quantity::
Trade Terms: FOB,CIF,CIP
contact supplier

Product Specifications

Prod Model: SCB-4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Coil Structure: Toroidal
Primary Voltage: 11kv
Secondary Voltage: 0.4kv
Cooling: Three Independent Cooling Fan
Rated Capacity: 30kVA--2500kVA
Frequency: 50Hz
Color: Red
Weight: 354kg
L*W*H: 1520*1100*1400
No-Load Loss: 0.19
Application: Lighting
Phase: Three
Cooling Method: Dry-type Transformer
Winding Type: Auto-transformer
Coil: Silicon Steel Sheet
Brand: Asian Sun

Product Description

Advantages of our products

Dry type transformer is in accordance with GB 6450-86 "Dry-type Power Transformer", GB 10228-1997 "Technical Parameter and Requirement of Dry-type Power Transformer"and GB 1094.1-1996 "Power Transformer Section 1 General", and it is the Grade F or H insulation dry-type power transformer cast and molded by epoxy resin. The product has the following advantages:

                         11kv/0.4 30kVA Dry Type Transformer with Copper Coil for Power
1.High mechanical strength and strong short circuit resistance ability;
2. Good moisture resistance and run with 90% humidity;
3. Advanced structure, small dimension, light weight and low partial discharge;
4. High insulation level and equal electric field distribution;
5. Easy maintainability;
6. Strong heat dissipation, run with 150% rated load under forced air cooling;
7. Fireproof, explosion-proof, pollution-free and low-noise and able to be directly installed in the load center.


       The product can be widely used in places with high fireproofing requirements, such as power transmission and transformation system, high building, commercial center, sport stadium, petrochemical enterprise, metro, station and airport. In China, the epoxy resin cast dry type power transformer has the richest manufacturing experience and the best running performance.

Type Illustration

S  C  B  10 - (No.1) / (No.2)

S    ---    Three Phase
C    ---    Solid insulation
B    ---     Low voltage foil winding
10   ---   Code of performance level
(No.1)  ---    Rated capacity (kva)
(No.2)  ---     Voltage rating (kv)


Dry type Transformer Parameter
TypeRated VoltageNo-load lossesDifferent insulation heat resistance level
Under the load loss (W)
No-load Current
(%)
Weight
(kg)
Dimension(mm)Outer Demension(mm)Track Gauge
100°120°145°LengthLength
SCB10-30300.196757317602.63548451520400
SCB10-50500.27941100713592.44969301520550
SCB10-80800.3713201387148225659851520550
SCB10-1001000.4149014921691259010201520550
SCB10-1201200.471748186219951.672510401520550
SCB10-1601600.542014213822901.683610601520550
SCB10-2002000.632385254627271.6102011201520660
SCB10-2502500.722613277429641.6115012101600660
SCB10-3153150.813287348737341.4149012401700660
SCB10-4004000.993772400942491.4163013201700660
SCB10-5005001.184617491252541.4205013001700670
SCB10-6306301.365558599563271.4224013201700820
SCB10-8008001.546584699274861.54240014501700820
SCB10-100010001.797695818087501.2325015251900820
SCB10-125012502.2191499794104311398017151900820
SCB10-160016002.481111511780126071467517202200820
SCB10-200020003.0613680145351555215250184022601070
SCB10-250025003.61624517271184870.86065201523601070
SCB10-160016002.481235013015139271467517202200820
SCB10-200020003.061510516055171000.85250184022601070
SCB10-250025003.61624517271184870.86050201523001070



Company Imformation
BrandAsian Sun
Nature of our companyManufacturer
Establish in2006
Export toAmerican, India, Russia, Pakistan, Vienam, Mongolia
Our CertificationIEC, ISO, CCC, CQC,GB/T, CECC
LocationLuoyang, Henan, China
Area200,000 m2
Empolyeemore than 900 people



Started in year 2006, Luoyang Asian Sun Group - formerly known as 'Luoyang YaRi'- was a small factory with only tens of employees back then, but after years of growing and developing, now we are a group company with 5 branch companies, with more than 800 employees including 100 engineers and technicians, and with registered capital 410 million RMB. Our factories are located in county Yichuan, Luoyang, Henan, China, and our headquarters are in the beautiful historic city Luoyang. Totally we have 20, 000 square meters area for production and management, with fixed assets valuing 960 million RMB.

Our main products are power transformer, PV bracket, power cable, and aluminum bar etc. We also carry on projects of engineering, electrical installation and other general contracting. Our research, production and management are strictly in accordance with the ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health and safety management system, the EU TUV, etc. The quality assurance is carried out in every aspect of design, material selecting, production, testing, inspection and management.

At home, we have reached strategic cooperation agreements with State Grid Corporation of China, GD Solar Co., Ltd., Huaneng China, Datang Corporation, China Power Investment Energy Conservation and Environmental Protection Group, and other large state-owned enterprises. At abroad, our products have been exporting to Russia, Middle East Asia, European Union, South America, Africa and other parts of the world.

Our continuing growth and success have been the direct result of the excellent word-of-mouth we consistently earn from both our new and established clients. Thinking of others' benefit and win-win cooperation is the core idea of our company culture. Perfection is not easy to achieve, but we chase it and we can catch excellence. Our excellence is the glamour which brings the good quality and service into every clients.

We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
