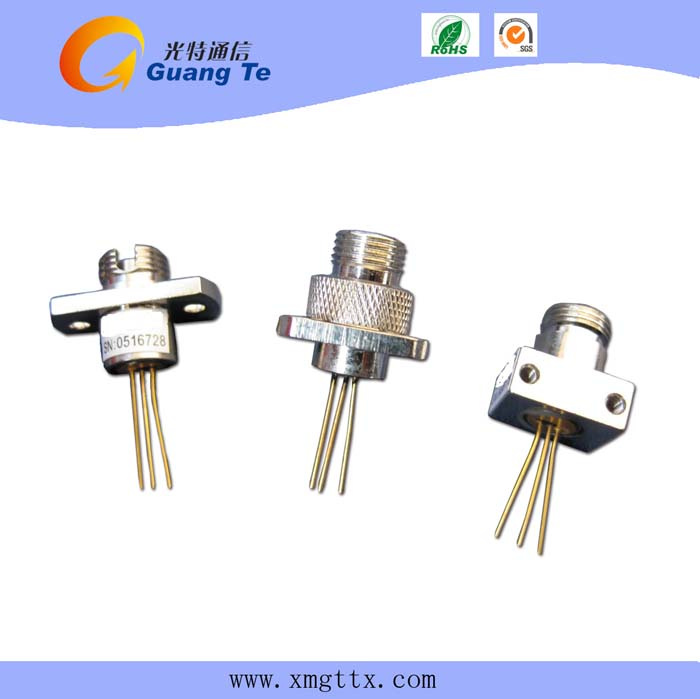

635nm red visible laser diode
Features
MQW 635nm FP LD
Low threshold current
Wide temperature range operation
(Tc= -10 to+65° C)
Low threshold current
Cost-effective Uncooled Laser Technology
5.6-mm TO-style package with SMF pigtail
Applications
RoHS
ISO9000
ESD package
Light Source
Data Transmit
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Test Conditions |
Output power |
Pout |
Iop=Ith+15 |
0.2 |
1.0 |
10 |
mW |
Iop=50mA |
4.0 |
5.0 |
6.0 |
mW |
Iop=90mA |
9.0 |
10.0 |
11.0 |
mW |
Iop=Ith+50mA |
10.0 |
50.0 |
-- |
mW |
Center wavelength |
λ |
CW |
640 |
650 |
660 |
nm |
Spectral width |
Δλ |
CW |
- |
- |
5 |
nm |
Operating voltage |
Vop |
CW |
- |
2.2 |
2.6 |
V |
Rise/ Fall time |
Tr/Tf |
CW |
- |
- |
0.5 |
ns |
Xiamen Guangte Communication Technology Co., Ltd. It was established in October, 2006. Locates in Ji Mei district. It is a high-tech enterprise focusing on optical basic components and optical network devices. We are specialize in developing and manufacturing active components for Optical field customers.
Guangte'product line covers CATV, telecommunication'data communication, G/EPON, RF optical' FTTX, Video/Radio, Sensor and Test as well.
Main Product: CATV, CDMA, CWDM Pin diode
CATV, CDMA (FP/DFB)laser diode
Power meter, Light Source, (InGaAs, GaAs, Si)Pin diode
(FP/VCSEL/LED/FP/DFB)laser diode
RF signal, TOSA, ROSA, BOSA
Optical Transiver module, Optical receiver module, (155M, 622M, 1.25G, 2.5G, 1*9, GBIC, SFP )
Fused WDM(1*2 1310nm/1550nm)
Fused Coupler(1*2… . 1*64)
Fused Splitters (1: 99… ...50: 50)
GuangTe passed the quality Inspection. And all the products follow the ISO9000 with it's products compliant with RoHS standards. With the market-Oriented R&D-based policy and dedication to technology innovations. Upon it's excellent product quality and professinal services. Guangte communication has already developed long-term stable cooperation relationship with lots of well known communications equipment manufacturers at home and abroad. We are work for your need everyday.
