Product Specifications
| Prod Model: |
64 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module: |
Wavecom, Simens, Simcom, Haiwei, Quectel |
| Frequency: |
Dualband, Triband, Quadband Optional |
| IMEI Change: |
Support Optional |
| SMS Sending: |
38400 SMS Per Hour |
| Operating System: |
Linux, Vista, XP, Win7, Win8, Mac etc |
| Power: |
110-250V |
| SMS Software Compatiblity: |
SMS Software, SMS Caster, Diafaan, Ozeki Ng SMS Gatew |
| Warranty: |
One Year Free |
| Type: |
External |
| Interface Type: |
USB |
| Transmission Rate: |
14.4Kbps |
| Application: |
Industrial |
Product Description

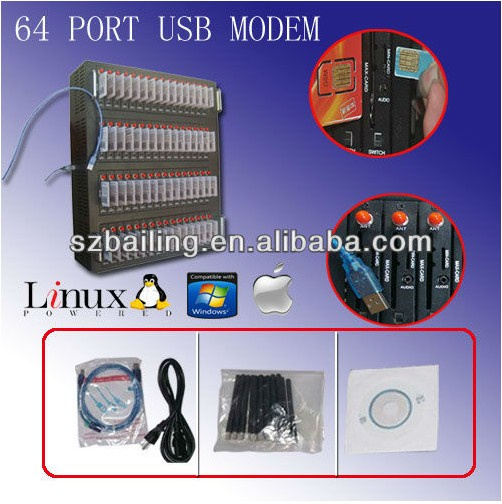

Professional 64 port modem pool with wavecom Q24plus module for bulk SMS sending
Product description:
KEY FEATURES USB GSM/GPRS modem pool
Based on wavecom industrial Q24plus modules
64X SIM card(big/small) slots
Send 38400-57600SMS per hour
Interface: USB2.0
Wireless access to internet
Double tone multi-frequency function(DTMF)
Cluster send and receive SMS
Maximum transmitting speed 14400 bits/s
SMA antenna: 3dBi
Input voltage: 100 to 240V
PRODUCT FEATURES Dual Band EGSM/GPRS module (EGSM 850/900/1800/1900 MHz)
Compliant with ETSI GSM Phase 2+standard
Class 4 (2W @ 900 MHz)
Class 1 (1W @ 1800 MHz)
Power supply:
1.3.6 VDC (direct connection to Li-ion battery pack)
2.260 mA average current in voice communication (GSM 900, Pmax)
3.160 mA average current in voice communication (GSM1800, Pmax)
ENVIRONMENT AND MECHANICS Operating Temperature: -20 ° C - + 55 ° C
Storage temperature: -30 ° C - + 85 ° C
INTERFACESAntenna: RF Pad supporting coaxial cable
60 pins board to board connector
Including:
1.3V SIM interface with SIM detection
2.2 microphone inputs and 2 speaker outputs
3.1 SPI/I2C
4.10 input lines for 5X5 keypad
5.1 buzzer output
6.1 vibrator output
7.2 Analog to Digital Converters
8.2 RS-232 serial links
9. IrDA interface
10. Battery charging interface
AT commands interface:
GSM 07.05 and 07.07 AT commands
Comprehensive set of enhanced AT commands
Open AT APIs:
Numerous interfaces for embedded applications
SIM Toolkit release 99
APPROVALS GCF-CC, EMC, SAFETY, Chinese APPROVALS
VOICE FEATURES Telephony, Emergency calls
FR, EFR, HR
Echo Cancellation and Noise Reduction
Full duplex hands free
DATA FEATURES Data circuit asynchronous, transparent
And non transparent up to 14400 bits/s
Fax group 3 (Class 1 and 2) GPRS packet Data features
GPRS Class 10
Coding Schemes: CS1 to CS4
PBCCH support
MESSAGE SERVICES Point to point (MT/MO) and Cell Broadcast
GSM SUPPLEMENTARY SERVICES Call Forwarding, Call Barring
Multiparty
Call Waiting, Call Hold
USSD
IP connectivity (TCP/IP with TCP/UDP sockets, POP3, SMTP, FTP)
IBM WMQT (Websphere)
Orange M2M Connect
APPLICATION: Large shopping malls, supermarkets
Professional market, large wholesalers
Large hotels, large-scale entertainment
Large agencies
Transport, logistics industry
Large enterprises, and institutions
Large hospitals, large bookstore
Newspaper, television and radio stations
Oil Company ( other chain business model)
Government agencies or large township
SUPPORTED OPERATATING SYSTEMS Windows 7 (Home, Premium, PRO, Ultimate, Enterprise)
Windows Vista (Home, Business, Ultimate, Enterprise)
Windows XP (PRO and Home)
Windows Server 2003 (original and R2)
Windows 2000
PACKING LIST Main unit*1PC
USB cable*1PC
SMA antenna*64PCS
CD driver*1PC
Power adapter*1PC(EU, AU, UK, US TYPE Selected )
