Product Specifications
| Prod Model: |

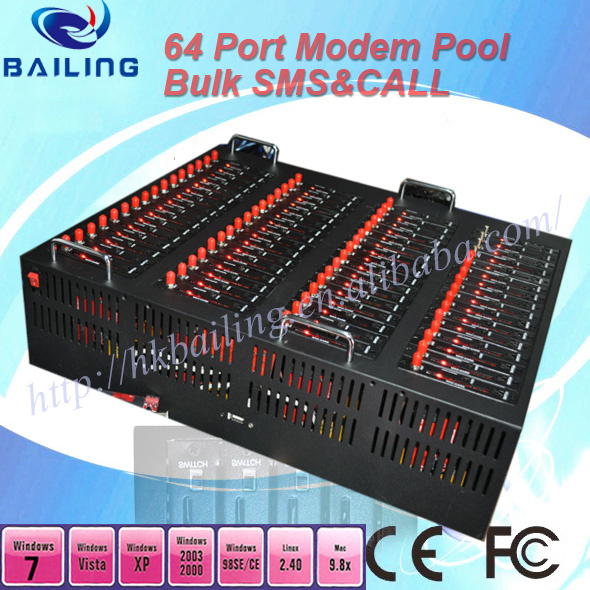

64 port modem |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module: |
Wavecom Simens Simcom Huawei Quectel |
| GSM Frequency: |
850/900MHz &900/1800MHz &850/900/1800/1900MHz |
| SMS Sending: |
38400 SMS Per Hour |
| Operating System: |
Linux, Vista, XP, Win7, Win8, Mac etc |
| IMEI Change: |
Support |
| Function: |
SMS, MMS, Ussd, Email, Data, Fax etc |
| Power: |
110-250V |
| Type: |
External |
| Interface Type: |
USB |
| Transmission Rate: |
14.4Kbps |
| Application: |
Household |
Product Description
Based on Wavecom and Simens Wireless Modules.
- Build in 64 GPRS modem in one box
- Sigle power supply for 64 modems
- Power button to control on and off
- USB interface
- Dual Band: 900/1800MHz
Tri Band: 850/1800/1900MHz, or 900/1800/1900MHz
Quad Band EGPRS 850/900/1800/1900 MHz
- Send MMS
- GPRS class 10: Max 85.6kbps(downlink)
- Auto answer function for voice and data collection with the remote device.
- AT command to control and program
- Designed for WAP, MMS, SMS, CSD data, fax, and voice applications
- Support XP/NT/2000/2003/vista operation systems
- Design for high traffic communicaton
Specifications
1. USB WIRELESS GSM/GPRS MODEN
2. Based on Wavecom and Siemens Wireless Modules.
3. TCP/IP, OPEN AT.
4. Send and receive data, fax, e-mail, SMS
5. Sending 38, 400 SMS per hour
6. USB 2.0 driver
7.32 SIM card slots
8. Wireless access to internet
9. Comply with GSM Phase 8+ standard
10. Send and receive SMS, MMS, e-mail and data
11. Maximum transmitting speed 115KBps
12. Input voltage: 100V- 240V
13. Working temperature: -20 to +60°
Storage temperature: -25 to +70°
14. Double tone multi-frequency function(DTMF)
15. Send maximum 38400 SMS per hour
Supported Operating Systems:
All popular 32-bit and 64-bit versions of Windows are supported on both the server and client ends, including the latest revisions and service packs.
Windows 7 (Home, Premium, PRO, Ultimate, Enterprise)
Windows Vista (Home, Business, Ultimate, Enterprise)
Windows XP (PRO and Home)
Windows Server 2003 (original and R2)
Windows 2000 (Server and PRO)
Windows 98SE/CE
Linux 2.40
MAC 9.8X
Weight: 18kg
Size: 495mm*480mm*125mm
Accessories: 1Power Cable, 1 USB 2.0 cable,
64 SMA antennas, 1 Driver CD
|
KEY FEATURES |
♦ USB GSM/GPRS modem pool |
|
♦ Based on wavecom industrial Q24plus modules |
|
♦64x SIM card(big/small) slots |
|
♦ Send 38400-57600SMS per hour |
|
♦ Interface:USB2.0 |
|
♦ Wireless access to internet |
|
♦ Double tone multi-frequency function(DTMF) |
|
♦ Cluster send and receive SMS |
|
♦ Maximum transmitting speed 14400 bits/s |
|
♦SMA antenna:3DBI |
|
♦ Input voltage: 100 to 240V |
|
PRODUCT FEATURES |
♦ Dual Band EGSM/GPRS module (EGSM 850/900/1800/1900 MHz) |
♦ Compliant with ETSI GSM Phase 2+standard
Class 4 (2W @ 900 MHz)
Class 1 (1W @ 1800 MHz) |
♦ Power supply:
1.3.6 VDC (direct connection to Li-ion battery pack)
2.260 mA average current in voice communication (GSM 900, Pmax)
3.160 mA average current in voice communication (GSM1800, Pmax) |
|
ENVIRONMENT AND MECHANICS |
♦ Operating Temperature: -20 ° C - + 55 ° C |
|
♦ Storage temperature: -30 ° C - + 85 ° C |
|
INTERFACES |
Antenna: RF Pad supporting coaxial cable
60 pins board to board connector
including: |
|
1.3V SIM interface with SIM detection |
|
2.2 microphone inputs and 2 speaker outputs |
|
3.1 SPI/I2C |
|
4.10 input lines for 5x5 keypad |
|
5.1 buzzer output |
|
6.1 vibrator output |
|
7.2 Analog to Digital Converters |
|
8.2 RS-232 serial links |
|
9.IrDA interface |
|
10.Battery charging interface |
AT commands interface:
– GSM 07.05 and 07.07 AT commands
– comprehensive set of enhanced AT commands |
Open AT APIs:
– numerous interfaces for embedded applications |
|
SIM Toolkit release 99 |
|
APPROVALS |
♦ GCF-CC,EMC,SAFETY,CHINESE APPROVALS |
|
VOICE FEATURES |
♦ Telephony, Emergency calls |
|
♦ FR, EFR, HR |
|
♦ Echo Cancellation and Noise Reduction |
|
♦ Full duplex hands free |
|
DATA FEATURES |
♦ Data circuit asynchronous, transparent
and non transparent up to 14400 bits/s |
|
♦ Fax group 3 (Class 1 and 2)– GPRS packet Data features |
|
♦ GPRS Class 10 |
|
♦ Coding Schemes: CS1 to CS4 |
|
♦ PBCCH support |
|
MESSAGE SERVICES |
♦ Point to point (MT/MO) and Cell Broadcast |
|
GSM SUPPLEMENTARY SERVICES |
♦ Call Forwarding, Call Barring |
|
♦ Multiparty |
|
♦ Call Waiting, Call Hold |
|
♦ USSD |
|
♦IP connectivity (TCP/IP with TCP/UDP sockets, POP3, SMTP, FTP) |
|
♦IBM WMQT (Websphere) |
|
♦Orange M2M Connect |
APPLICATION: |
♦ Large shopping malls, supermarkets |
|
♦ Professional market, large wholesalers |
|
♦ Large hotels,large-scale entertainment |
|
♦ Large agencies |
|
♦ Transport, logistics industry |
|
♦ Large enterprises, and institutions |
|
♦ Large hospitals, large bookstore |
|
♦ Newspaper, television and radio stations |
|
♦ Oil Company ( other chain business model) |
|
♦ Government agencies or large township |
SUPPORTED OPERATATING SYSTEMS |
♦ Windows 7 (Home, Premium, Pro, Ultimate, Enterprise) |
|
♦ Windows Vista (Home, Business, Ultimate, Enterprise) |
|
♦ Windows XP (Pro and Home) |
|
♦ Windows Server 2003 (original and R2) |
|
♦ Windows 2000 |
|
PACKING LIST |
♦ Main unit*1pc |
|
♦ USB cable*1pc |
|
♦ SMA antenna*64pcs |
|
♦ CD driver*1pc |
|
♦ Power adapter*1pc(EU,AU,UK,US TYPE Selected ) |
