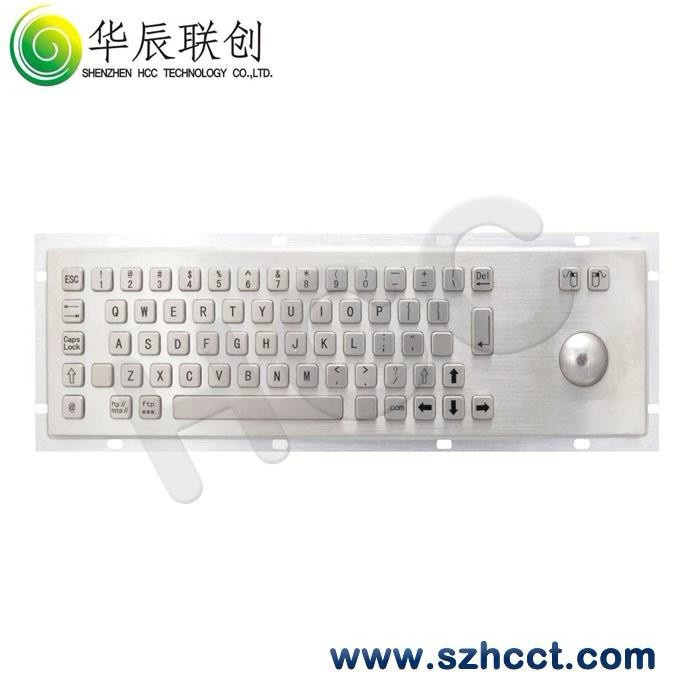

65 Keys Kiosk USB Waterproof Dustproof Metal Keyboard
Product Specifications
| Prod Model: |
HCK299D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key Trip: |
1.5mm |
| Key Pressure: |
0.8~1.6 N |
| Lifespan: |
> 2 Million Operations Per Key |
| Gross Weight: |
1.5kgs |
| Electric Current: |
10mA |
| EMC Emission: |
En55022 |
| ESD Standard: |
Air Discharge 8kv; Contact Discharge 6kv |
| Operating Temperature: |
0° ~+60° |
| Storage Temperature: |
-25° ~+80° |
| Connection Type: |
Wired |
| Application: |
Desktop |
| Wireless: |
Wired |
| Shape: |
Slim |
| Text Input: |
Multi Bond |
| Product Positioning: |
Game Keyboard |
| Key Technology: |
Mechanical Axis |
| Working Principle: |
Mechanical |
| Interface: |
USB PS/2 |
| Key Numbers: |
65 |
Product Description
Features
*65 keys stainless steel panel mounting keyboard with trackball
*Support OS: Windows 95/98/NT/ME/2000/2003/XP/Vista, Linux and UNIX
*Customized layout available
*Lettering by etching and inking, or laser technology
*Carbon-on-Gold key switch technology (silicon gel)
*Mechanical/ Optical trackball optional
*Waterproof and dustproof
*Very rugged vandal proof design
*Can be cleaned with soapy water, disinfectant or other cleaning agents
| Key trip | 1.5mm |
| Key pressure | 0.8~1.6 N |
| Lifespan | > 2 million operations per key |
| Gross Weight | 1.5KGS |
| Input Voltage | 5.0VDC± 5% |
| Electric Current | 10mA |
| EMC Emission | EN55022 |
| ESD Standard | Air Discharge 8KV; Contact Discharge 6KV |
| Operating Temperature | 0° ~+60° |
| Storage Temperature | -25° ~+80° |
| Relative humidity | 30%~90% |
| Atmospheric pressure | 60~106 KPa |
| MTBF | > 20, 000 hours |
| MTTR | < 30 minutes |
| Approval | CE, FCC, RoHS, ESD compliant |
| Waterproof and Dustproof class | IP65 (front panel) |
| Vandal resistant class | IK07 |
| Dimensions | Front Panel: 330 x 100mm
Overall: 354 x 124mm
Diameter of trackball: 25mm |
| Interface | USB or PS/2 |
| Front PanelFront Panel | High quality 304# stainless steel |
| Keys | High quality 304# stainless steel |
| Trackball | High quality 304# stainless steel |
| Back panel | Aluminum alloy |
