Product Specifications
| Prod Model: |
MS2108A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| DC Voltage: |
660mv/6.6V/66V 660V |
| AC Voltage: |
660mv/6.6V/66V/660V |
| AC/DC Current: |
66A/600A |
| Inrush Current (100ms): |
66A/600A |
| Resistance(Ohm): |
660/6.6k/66k/660k/6.6m/66m |
| Capacitance: |
6.6UF/66UF/660UF/6.6mf/66mf |
| Frequency: |
10kHz,+/-(1.5%+5) |
| Duty Cycle: |
10%~95% +/-(3.0%+2) |
| Display: |
Digital |
| Stucture: |
Transformer |
| Voltage: |
660mv/6.6V/66V/660V |
Product Description

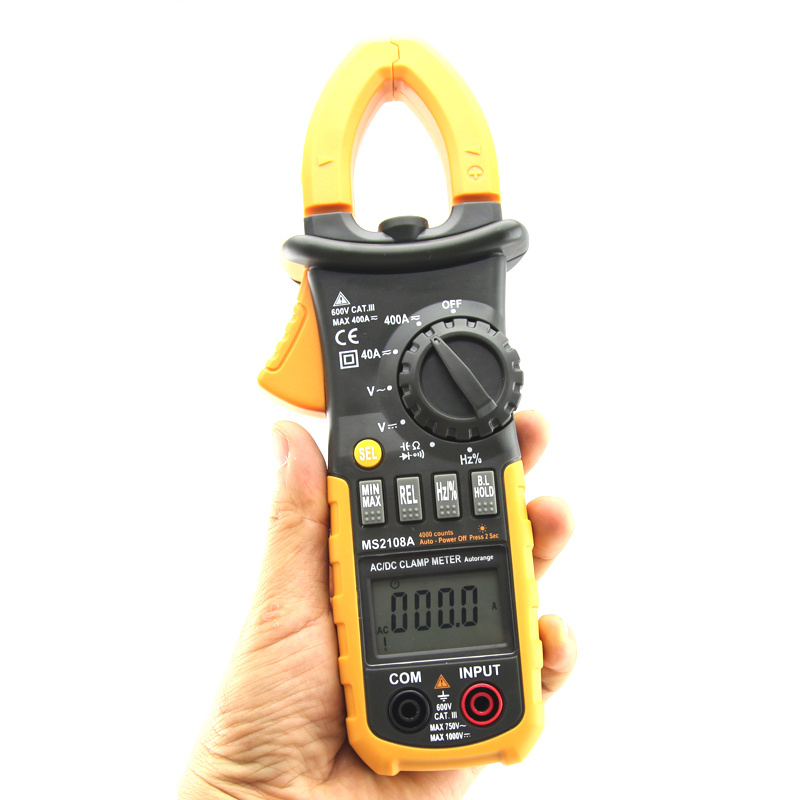

6600 Counts True RMS Digital AC/DC Clamp Meter with inrush current
Specifications |
Range |
Accuracy
MS2108 |
DC Voltage |
660mV/6.6V/66V
660V |
±(0.8%+3)
±(1.0%+5) |
AC Voltage |
660mV/6.6V/66V/660V |
±(1.5%+5) |
AC Current |
66A/600A |
±(3.0%+10) |
DC Current |
66A/600A |
±(3.0%+10) |
INRUSH CURRENT
(100ms) |
66A/600A |
±(10.0%+60) |
Resistance |
660Ω/6.6kΩ/66kΩ/660kΩ/6.6MΩ
66MΩ |
±(1.2%+2)
±(2.0%+5) |
Capacitance |
6.6μF/66μF/660μF/6.6mF/66mF |
±(4.0%+3) |
Frequency |
10kHz |
±(1.5%+5) |
Duty cycle |
10%~95% |
±(3.0%+2) |
Feature |
Display |
6600 Counts |
Auto and manual range |
√ |
Inrush current |
√ |
True RMS |
√ |
Data hold |
√ |
Work light |
√ |
Diode test |
√ |
Max/Min Value hold |
√ |
Continuity |
√ |
Back light |
√ |
General |
Power supply |
1.5V(AAA)x3 Batteries |
Weight |
Approx 245g |
Size |
280mmx78mmx35mm |
Jaw Size |
Ø26mm |
Safety Rating |
CE CAT.III600V RoHS |
