6632 Polyester Film Flexible Composite Material (DM) Insulation Paper
Product Specifications
| Prod Model: |
6632 |
| Markets: |
Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Thickness: |
0.15mm 0.17mm 0.20mm 0.23mm 0.25mm 0.30mm 0.45 |
| Width: |
1000mm |
| Applications: |
It Is for B- Grade Motors, Generators or Other Ele |
| Rated Voltage: |
≥4--22kv |
| Application: |
Motor |
| Type: |
Solid |
| Chemistry: |
Organic Insulation |
| Material: |
Paper |
| Thermal Rating: |
B 130 |
| Maximum Voltage: |
10KV~20KV |
| Brand: |
Chr |
Product Description

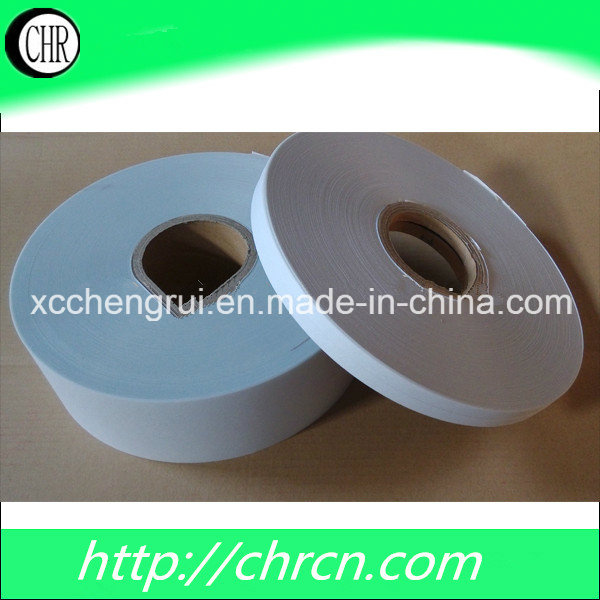

DM(6632) is a 2-layer flexible composites material. The core layer is polyester film, agglutinate to polyester fiber non-woven fabric with adhesive. It has good mechanical strength, dielectric, and adhesion. Capable for Y series motors and electric appliance as insulation slot, inter-turn insulation and lining insulation. Its heat-resistant is classified as Class B.
Technical parameters:
No. |
Index Name | Unit | Index |
| 1 | Nominal Thickness | mm | 0.12 | 0.15 | 0.18 | 0.20 | 0.23 | 0.25 | 0.30 | 0.35 | 0.40 |
| 2 | Thickness Tolerance | mm | ±0.020 | ±0.030 | ±0.035 | ±0.040 | ±0.045 | ±0.050 |
| 3 | Quantitative and Tolerance | g/m 2 | 140±20 | 150±23 | 190±29 | 210±32 | 240±36 | 255±38 | 310±46 | 365±55 | 450±68 |
| 4 | Stretch Intensity | Vertical | unbended | N/10
mm | ≥80 | ≥90 | ≥100 | ≥130 | ≥160 | ≥180 | ≥200 | ≥240 | ≥280 |
| bended | ≥70 | ≥85 | ≥90 | ≥120 | ≥140 | ≥160 | ≥180 | ≥220 | ≥260 |
| Horizontol | unbended | ≥70 | ≥85 | ≥90 | ≥120 | ≥140 | ≥160 | ≥180 | ≥220 | ≥260 |
| bended | ≥60 | ≥70 | ≥80 | ≥110 | ≥130 | ≥150 | ≥170 | ≥210 | ≥240 |
| 5 | Stretch ratio | Vertical | unbended | % | ≥8 | ≥12 | - |
| bended | ≥10 | ≥18 | - |
| 6 | Puncture Voltage | kV | ≥6 | ≥7 | ≥8 | ≥9 | ≥10 | ≥12 | ≥14 | ≥16 | ≥18 |
| 7 | Normal adhesion |
| Non-hierarchical
|
3. Specifications:
Thickness: 0.15mm 0.17mm 0.20mm 0.23mm 0.25mm 0.30mm 0.45mm
Width: 1000m
Color: white
4. Why not choose CHENGRUI ?
- Enviroment-friendly products
- High cost-efficiency
- Super quality
- Customer- oriented service
Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd
If any question, pls contact our sales
Our main products are as follows:
Film Products: 6020/6021 Polyester film, 6051 polymide film
Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper
Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,
Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.
Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210
Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper
Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar
The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
