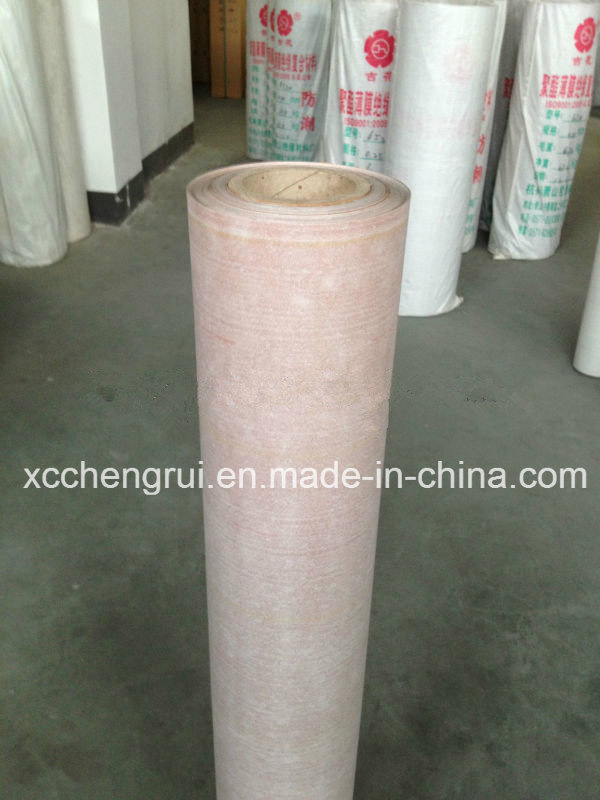

6650 Nhn Polyimide Insulation Paper

Product Specifications

Prod Model:	6650 NHN
Markets:	North America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Thickness:	0.20mm-0.40mm
Width:	914mm
Form:	in Rolls
Package:	Carton and Pallet
Storage Life:	1 Year
Application:	Switch Baseplate
Type:	Solid
Chemistry:	Inorganic Insulation
Material:	Paper
Thermal Rating:	H 180
Maximum Voltage:	<10KV
Color:	Nature Beige
Brand:	Chr

Product Description

Product Description
6650 Electrical insulation NHN Nomex Paper

6650 NHN nomex paper composite insualtion material
1.Insulation grade: H
2.Thickness:0.2-0.33mm
3.package:carton and pallet

6650 NHN nomex paper composite insualtion material is made of two layers of Du Pont Nomex paper with one of polyimide film.

1.Character:
It is Class H insulation material.
This product has good dielectric properties, high heat resistance and mechanical strength
2.Application:
insulation material is suitable for H-class electrical motors as slot liner and turn-to-turn insulation, liner insulation,transformer insulation,and other electrical insulation with  temperature requirement not exceeding 130

Nominal thickness(mm):0.20mm,0.25mm,0.30mm,0.35mm,0.40mm
Nominal width(mm):914mm

No.	Properties	Unit	Values
1	Nominal Thickness	mm	0.15	0.17	0.20	0.25	0.30	0.33
2	Thickness Tolerance	mm	± 0.02		±0.03	± 0.04		± 0.05
3	Breakdown Voltage       (No Bending) ≥	Kv	8		9		10
4	Bond Strength          At Room Temp.	--	No delamination
5	Bond Strength             At(200±2) ºC,10Min	--	No delamination, No blister, No adhesive flow


  3. Why you choose us?

1) High performance cost ratio with steady quality
2) OEM service and Prompt Delivery
3) The fast speed of reply your email and can make quotation sheet just for you.
4) Can provide free sample, only need you bear the sample fee.
5) Supply good after-sales service, we will follow-up the situation after using, if have problems, we will find out the reason and deal with positively.

4. Packing:

exporting cartons and pallet

5. Delivery time and payment terms:

1) 10-20 days usually, if quantity is large, the lead time is around 30 days.

2) T/T, L/C, Paypal or Western Union.
