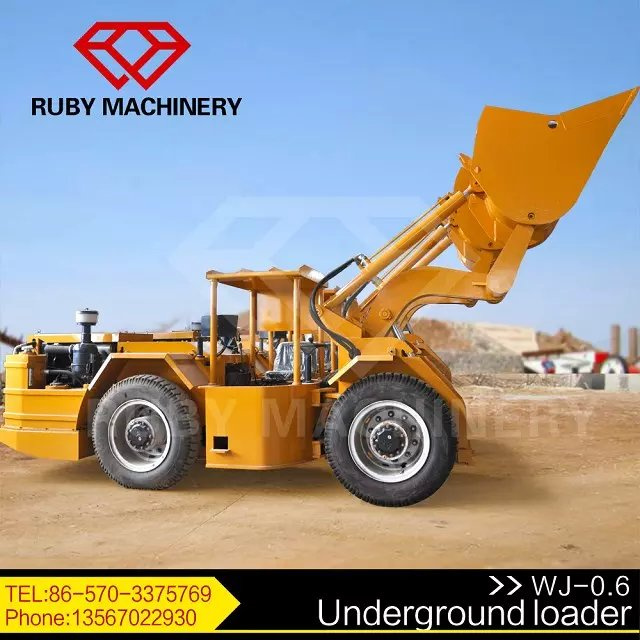

The WJ-0.6 underground loader is a compact and flexible LHD designed for narrow-vein mining, with agile performance, rugged construction and simplified maintenance ensures excellent productivity, long life and low operating costs. Engineered for performance, designed for comfort, built to last.
What is the specifications of our diesel scooptram
Engine | C240PKJ | Max .lifting Height | 2680 MM |
Max. Climbing Ability | 20° | Min. Discharge Height | 840 MM |
Max .Discharge Height | 1250MM | Min. Turning Radius | Inner:4200 MM |
Bucket Capacity | 0.6 M³ | Max. Steering Angle | ±35° |
Rated Loading Capacity | 1200 KG | Dimensions (transporting) | Length 5000 MM Width 1250 MM Height 1850 MM |
Max. Shovel Force | 35 KN |
Max. Traction | 40 KN |
Running Speed | 0-8 KM/H | Weight | 4600 KG |
Zhejiang Ruby Construction Machinery Co., Ltd, with 20 years professional experience focus on the designing, manufacturing, marketing and service of underground loader, underground truck, road crack sealing machine.
There are more than 200 employees and over 20 of them are mechnical engineers. In addition, we have built mutual reasearch and developing platform with a good many domestic famous universities and possess strong technical R&D capability. We are a professional technical enterprise and our products are alwasy in line with international advance technology.
At present it covers an area of more than 30, 000 squre meters and boasts domestic first-class production line of weld, advanced CNC cutting, large forming equipment, machining, testing, inspecition and painting. It always takes the technology as the motivation, quality as life and commits to active and initiative after-sales service. "Quality & Trust" is its significant management philosophy and it aims to provide the customers with the best product and service by virtue of powerful product quality guarantee system, emphasis on the details, focus on the efficency & quality to creat bright furture.
