6kv, 10kv, 11kv, 13.8kv Power Transformer

Name: 6kv, 10kv, 11kv, 13.8kv Power Transformer
Brand: china-manufacturer-directory.com
SKU: 738021995
Availability: InStock
Rating: 4.3 (67 reviews)

Supplier:	Suzhou Silverstone Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	6kv, 10kv, 11kv, 13.8kv Power Transformer
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Model

6KV,10KV,11KV,13.8KV Power Transformer

Intelligent, Compact, Fully Enclosed

30 Years in Electrics Equipment OEM Manufacturing

Standards

GB1094,GB/T6451,GB/T11022,GB7251,GB/T14028,GB/T17467

Our Transformer Product Range

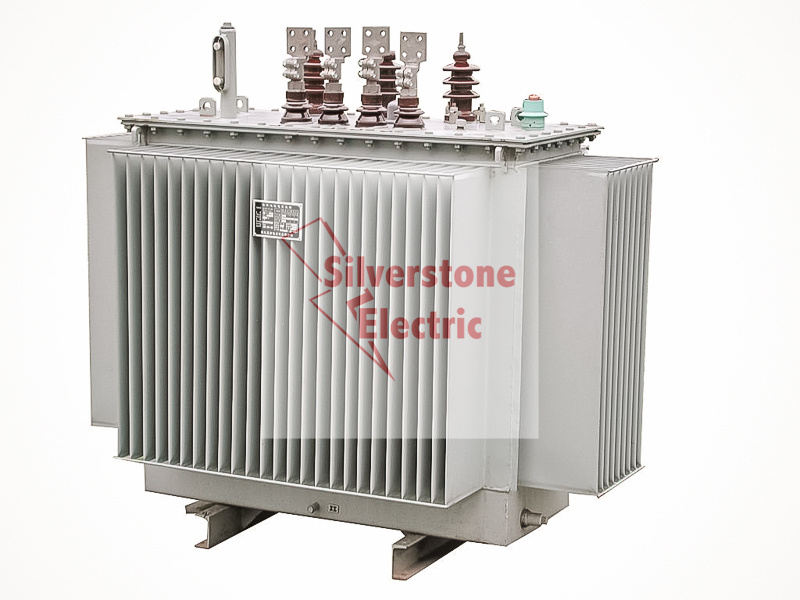

S10 S11 S13 oil type transformer:50-31500KVA,6-33KV,50/60HZ,off load tape changer

SZ10 SZ11 oil type transformer:50-31500KVA, 6-33KV,50/60HZ, on load tape changer

SCB9,SCB11 dry type transformer: F grade insulation, 50-3150KVA,6-33KV, 50/60HZ

SCBH15 11KV amorphous alloy dry type transformer:F grade insulation

SGB10 SGB11 11KV dry type transformer:H grade insulation

SBH15 Oil type amorphous alloy transformer 11KV Level

S13-M 1full sealed oil immersed power transformer

Dry type reactor

S(B)H15-16 Amorphous Transformer

BKSC(G)Dry-type shunt reactor

QKSC Dry Startup reactor

Smoothing reactors

KD-LK-type low-pressure filter reactor

Cast resin dry type earthing transformer

Dry type rectifier transformer

Rectifier transformer

Furnace transformer

Note: we can design and manufacture special transformer as customers' requirements.

Ordering Instruction: 1.product model; 2.rated capacity; 3.voltage range; 4.regulation range; 5.frequency; 6.connection symbol; 7. Technical specs for customized transformer.

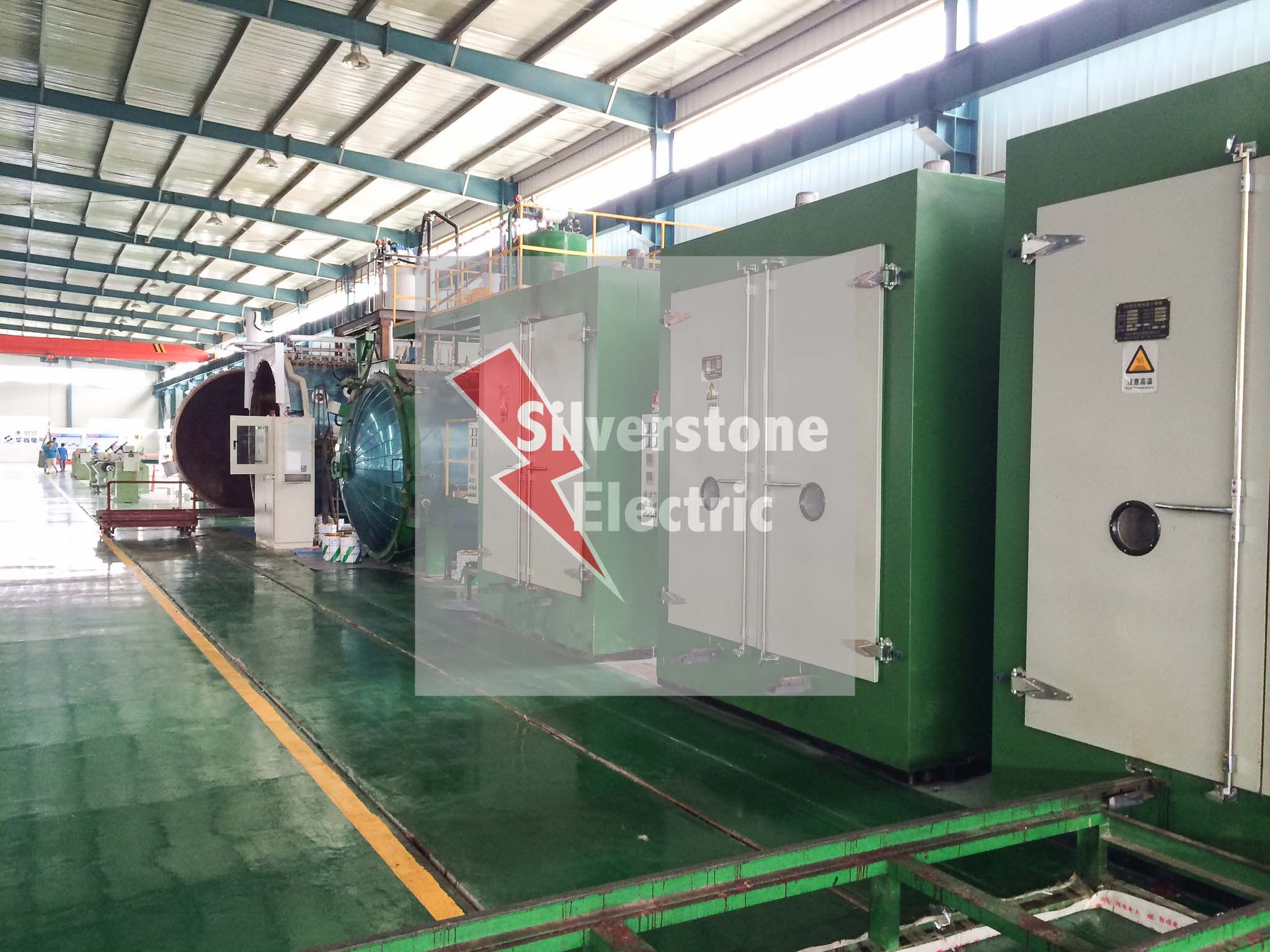

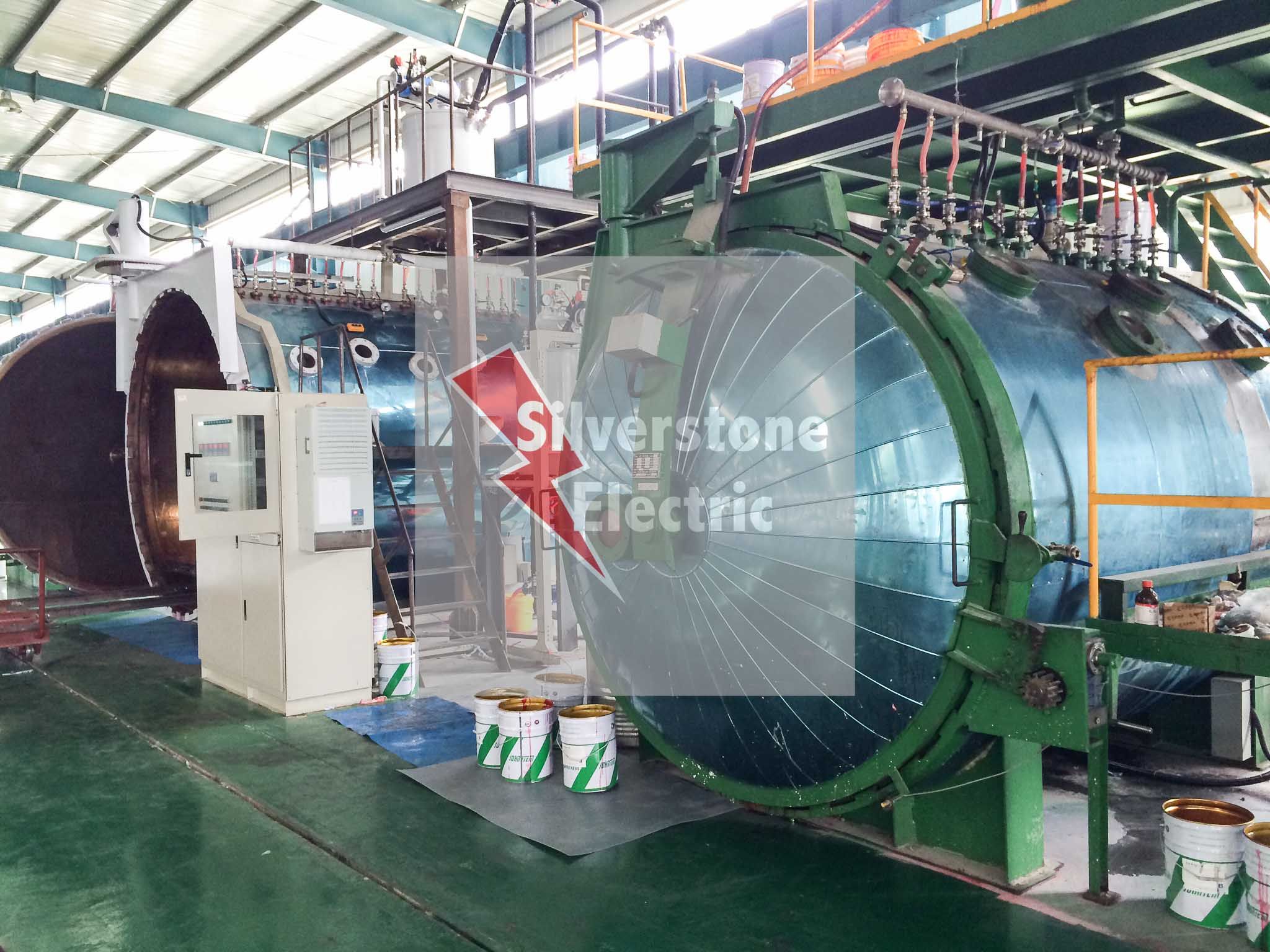

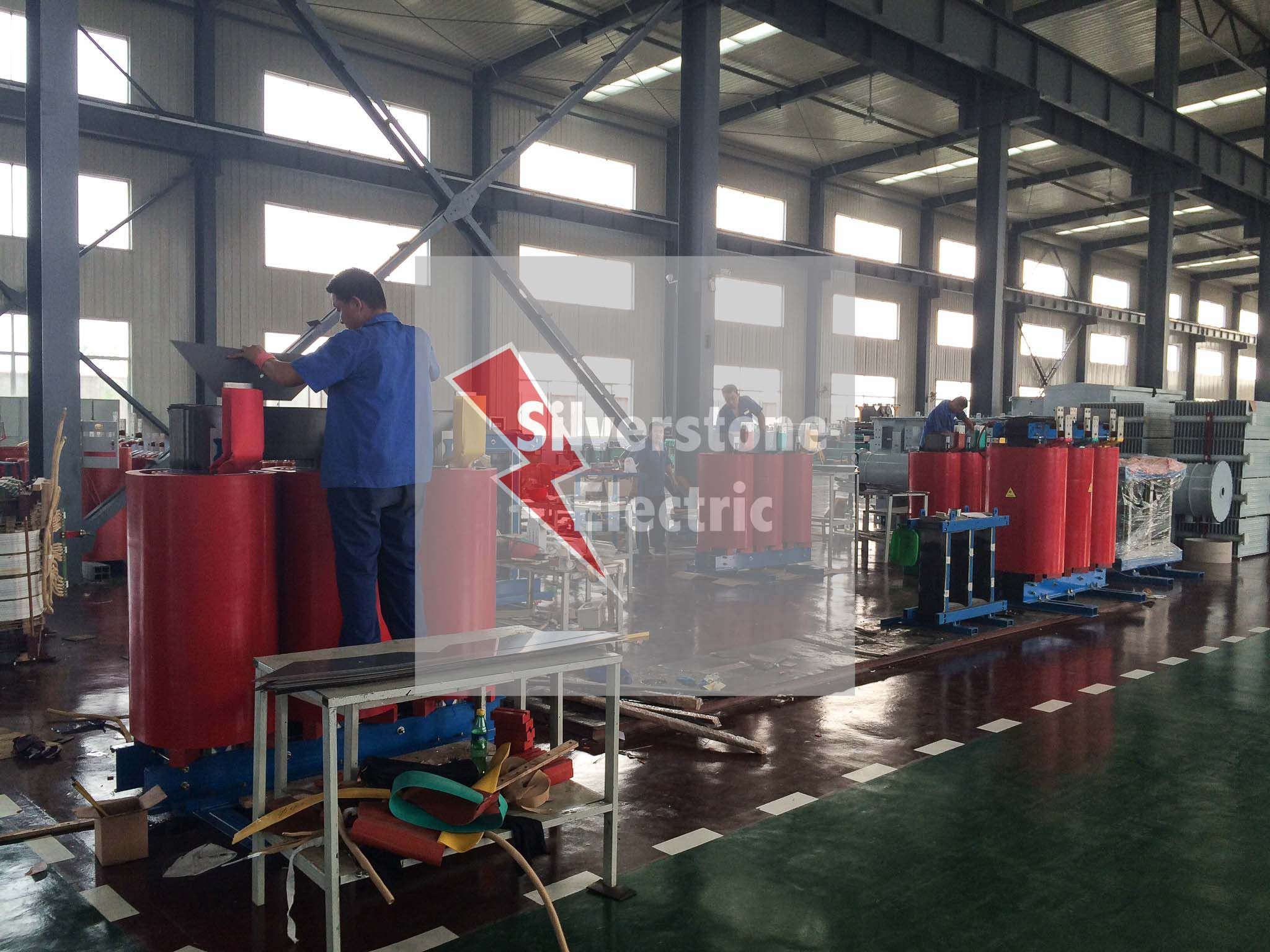

Workshop

Capacity(KVA)	High Voltage (KV)	Tape Charger (%)	Low Voltage (KV)	Ventor Group	Short Circuit Impedance (%)	No-load Current (%)	No-load Loss (W)	Load Loss 120 ° C(W)	Gross Weight (KG)
30	6kv - 11kv	±5; ±2X2.5	0.4	DYNll	4	0.5	33	600	590
50						0.5	43	870	670
63						0.5	50	1040	710
80						0.4	60	1250	750
100						0.4	75	1500	830
125						0.4	85	1800	930
160						0.3	100	2200	1020
200						0.3	120	2600	1150
250						0.3	140	3050	1350
315						0.3	170	3620	1450
400						0.3	200	4300	1720
500					4.5	0.3	240	5100	1940
630						0.3	320	6200	2260
800						0.3	380	7500	2580
1000						0.3	450	10300	3070
1250						0.3	530	12000	3510
1600						0.3	630	14500	4240

Suzhou Silverstone Electric Specialises in Power Transmission, Distribution, Electrical Automation Solutions, Power Quality Solutions, Hydro Power, Solar Power, Power Generation and Substation EPC Consultant.

We manufactures and trades

Power Transformer

--Dry type Transformer (up to 35kV)

--Oil Immersed Transformer (up to 230kV)

GIS (Gas Isolated Switchgear)

--Up to 145kV Compact Gas Insulated Switchgear (GIS)

--Up to 230kV Gas Insulated Switchgear (GIS)

MV Switchgear

--Metal clad AC Enclosed Switchgear

--Packaged Type AC Metal Enclosed Switchgear

--Gas Insulated Switchgear

LV Switchgear

--LV Withdrawable Switchgear

--LV Fixed Switchgear

MV Circuit Breaker

--Vacuum Circuit Breaker

--SF6 Circuit Breaker

--MV Earthing Switch

--Load Break Switch

Reactor

--Dry-type Air Core Reactor Series

--Dry-type Core Series Shunt Reactor

--HV Oil-immersed Shunt Reactor

HV&LV Busbar Trunking System

--Busbar Trunking System (Busway)

--Common Enclosure Busbar

HV Circuit Breaker & Disconnector

--HV Circuit Breaker

--SF6 Circuit Breaker

--HV Disconnector

--Outdoor AC discontector

--HV Earthing Switch

--Outdoor AC Earthing Switch

Capacitor

--All film high voltage shunt capacitor

--High-voltage shunt capacitor banks

--Atlernating filter capacitor complete equipments

Power Protection & Automation

Reactive Compensation

High Voltage Frequency Reactor

Medium voltage variable frequency drives

Medium voltage soft starter

STATCOM (Static synchronous compensator)

Static var compensator with Magnetically controlled reactor

TSC (Thyristor switched capacitor banks)

Active power filter
