Product Specifications
| Prod Model: |
LMR-0.6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LV: |
Indoor |
| Different Size: |
Adjustable |
| Different Ratio: |
Window Type |
| Ring Type: |
Plastic Shell |
| China: |
Factory |
| Application: |
Switchgear |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

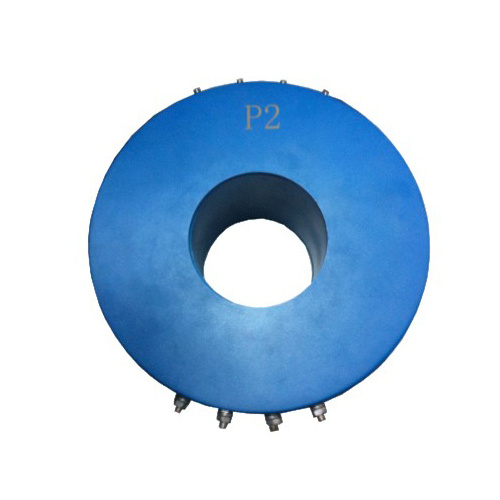

LMR-0.6 Current transformer is used indoor with rated voltage below 0.66kV,it is widely used for easuring current,electric energy and protective relaying in the power system with the rated frequency 50Hz,epoxy resin casting current transformer adpots fixing busbar installation.
Technical Data:
1) Rated secondary current 5A or 1A
2) Power frequency withstand voltage: 3kV
3) Rated frequency 50/60Hz
4) Installation site: Indoor
5) Technical standard: IEC 60044-1:2003, IEC 61869-1&3
Specification:
LMR(45-200)-0.66
Rated current ratio (A) | Rated output(VA) | Np |
| 0.5 | 0.5S | 0.2 | 0.2S | 1 |
| 100/5 | 5 | 5 | 2.5 | 2.5 | 1 |
| 200/5 | 5 | 5 | 2.5 | 2.5 | 1 |
| 300/5 | 5 | 5 | 2.5 | 2.5 | 1 |
| 400/5 | 2 | 2 | 2.5 | 2.5 | 1 |
| 500/5 | 5 | 5 | 2.5 | 2.5 | 1 |
| 600/5 | 5 | 5 | 2.5 | 2.5 | 1 |
| 800/5 | 5 | 5 | 2.5 | 2.5 | 1 |
| 1000-2000/5 | 10 | 10 | 10 | 10 | 1 |
| 2000-4000/5 | 20 | 20 | 20 | 20 | 1 |
| 4000-8000/5 | 30 | 30 | 30 | 30 | 1 |
Note: Upon requset we are glad to offer transformers according to other technical specs.
Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA
Offering a Wide Range of Products
Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds split core current transformers, Rogowski coils, energy meter components (CT and relay), medium voltage current transformers, potential transformers, low voltage current transformers and switchgear components.
Passed CE, TUV, ISO and RoHS standards
We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.
Contact us today to know more.
