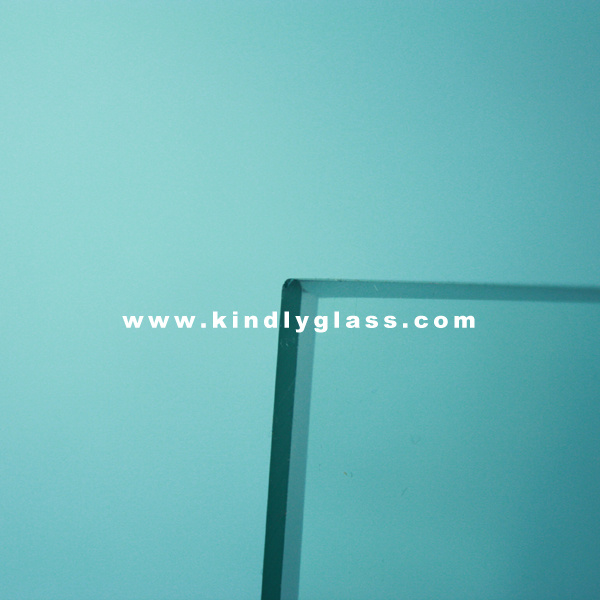

6mm Clear Float Glass for Building

Name: 6mm Clear Float Glass for Building
Brand: China-Manufacturer-Directory.com
SKU: 694643432
Availability: InStock
Rating: 5 (76 reviews)

Supplier:	Qingdao Kangdeli Industrial & Trading Co., Ltd.
Price:	US $ 1.18-17.55/Square Meter
Min Order:	100/Square Meter
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Size:	15002000 16502200 18302440 21343300
Special Size:	19003300 21343660 24403660 25003210
Super Size:	33004000 33008000 330010000 330012000
Technique:	Clear Glass
Thickness:	2-25mm
Color Type:	Solid Color
Shape:	Flat
Structure:	Solid
Customized:	Customized
Usage:	Building
Color:	Clear
Type:	Float

Product Description

Float glass is a term for perfectly flat, clear glass (basic product). The term "float" glass derives from the production method, introduced in the UK by Sir Alastair Pilkington in the late 1950's, by which 90% of today's flat glass is manufactured.

Production: The raw materials (silica sand, calcium, oxide, soda and magnesium) are properly weighted and mixed and then introduced into a furnace where they are melted at 1500° C. The molten glass then flows from the glass furnace into a bath of molten tin in a continuous ribbon. The glass, which is highly viscous, and the tin, which is very fluid, do not mix and the contact surface between these two materials is perfectly flat. When it leaves the bath of molten tin the glass has cooled down sufficiently to pass to an annealing chamber called a lehr. Here it is cooled at controlled temperatures, until it is essentially at room temperature.

Product Technical Parameters for CLEAR FLOAT GLASS
Product Technical Parameters for CLEAR FLOAT GLASS
Thickness	Visible Light Transmittance	Visible Light Reflectivity	Solar Radiant Heat				Shading Coefficient			U value	Sopund Insulation		UV Penet ration
			Direct Penetrate	Reflect	Absorb	Total penetrate	Short Wave	Long Wave	Total	W/m2K	Rm(dB)	Rw(dB)	Solar energy sources series	Architecture Series or else



2mm	91.50%	8%	91%	8%	1%	91%	1.08	0.01	1.05	5.8	25	29	89%	79%
3mm	91.50%	8%	90%	8%	1%	91%	1.05	0.01	1.05	5.8	26	30	88%	76%
3.2mm	91.40%	8%	90%	8%	2%	91%	1.03	0.01	1.05	5.8	26	30	88%	75%
4mm	91.38%	8%	90%	8%	2%	91%	1.03	0.01	1.05	5.8	27	30	87.5%	73%
5mm	91.30%	8%	90%	8%	2%	90%	1.03	0.01	1.03	5.8	29	32	87%	71%
6mm	91.08%	8%	89%	8%	3%	90%	1.02	0.01	1.03	5.7	29	32	86.5%	70%
8mm	90.89%	8%	88%	8%	4%	89%	1.01	0.01	1.02	5.7	31	34	85.4%	68%
10mm	90.62%	8%	88%	8%	4%	89%	1.01	0.02	1.02	5.6	33	36	84%	66%
12mm	90.44%	8%	87%	8%	5%	88%	1.00	0.02	1.02	5.5	34	37	82.5%	64%
15mm	90.09%	8%	86%	8%	6%	87%	0.99	0.02	1.00	5.5	35	38	81%	61%
19mm	89.73%	8%	84%	8%	7%	86%	0.97	0.02	0.99	5.5	37	40	80%	59%
22mm	89.60%	8%	82%	8%	9%	85%	0.95	0.02	0.97	5.5	38	43	80%	58%
25mm	89.00%	8%	81%	8%	9%	84%	0.93	0.02	0.95	5.5	39	45	79%	56%

Qingdao Kangdeli Industrial and Trading Co., Ltd. Locating in Qingdao, China is an industrial and trading company that supplying glass panels and processed glass products, such as clear glass panels, tinted glass panels, reflective glass panels, tempered glass, laminated glass and insulated glass, etc.

Our main equipments include one laminated glass production line machine which can process the glass up to the size of 2440X6000mm; Two tempered glass production lines, one of which can produce bend glass in size of 3300X9000mm with minimum semidiameter=5500mm. Another can process flat tempered glass in size of 3300X12000mm. Two insulated glass production lines can process the max. Size in 1800X2500mm with automatic aluminum processed machine.

Our factory has passed the ISO 9001. The quality control is taken strictly on every step of production to ensure the quality of the products.

We have exported to Europe, USA, Australia, etc. We have expert team of packing of glass panels and loading containers for export. We have got good reputation among our customers. We would like to do our best to serve our customers and potential customers.

In 2008 we have successfully invested in the glass arts and crafts and ceramic. Meanwhile we also finished and cooperated with our partner factory in aluminium profiles, EPDM and hardware and accessory. We hope to have well development together with our customers and also become a good partner with each customer.
